PCA80156 15.6" Expandable Industrial Touch Panel PC

Specification

Material: Aluminum die-casting front bezel
Steel rear metal chassis

LCD Panel: Size: 15.6 inch
Resolution: 1366 x 768
Brightness (cd/m²): 300-nits, option for 1000-nits high brightness display
Contrast Ratio (typ.): 500:1
Viewing Angle (H/V): 160° x 160°
Colors: 16.7M
MTBF (hrs): 50,000

Touch Screen: Type: Resistive or Projected Capacitive (optional) touch screen
Interface (RT / PCT): USB / USB
Light Transmission (RT / PCT): Over 80% / Over 90%

System: CPU: 6th Generation Intel Core i3-6100TE
Option for 6th Gen. Intel Core i5-6500TE or i7-6700TE CPU
Chipset: Intel H170 Chipset
Memory: 2 x 260-pin SO-DIMM, up to 32GB DDR4 2133MHz

Storage Device: 2 x 2.5” SATA SSD space

I/O Ports: 4 x USB 3.0 type A
2 x RJ-45 GbE LAN
1 x RS-232/422/485 DB-9, COM1(default RS-232)
1 x RS-232 DB-9, COM2
1 x RS-422/485 DB-9, COM3(default RS-485)
1 x Line-out/1 x Mic-in
1 x VGA by DB-15
1 x HDMI with cover
1 x System LED indication at front
2 x LED indicators for HDD/system
1 x Power switch on/off
1 x 3-pin terminal block for DC power input
1 x 2-pin power switch

Expansion Slot: 1 x PCIe x1 + 1 x PCIe x16 slot

Mounting: Supports panel mount

Power Supply: Power Input: 9 to 36V DC power input
Power Consumption: Max. 78.6W
Option for external AC power adapter

Weight: 14.33 lb / 6.5 kg

Dimension: 16.22”(W) x 8.96”(H) x 3.54”(D)

Environmental: Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10%~95% @ 40°C, non-condensing
IP Rating: Front IP66 rated bezel

Safety: CE, FCC Class A

Operating System: Option for Windows 7 Pro 64bit / Windows 7 Embedded Standard / Windows 10 Pro 64bit

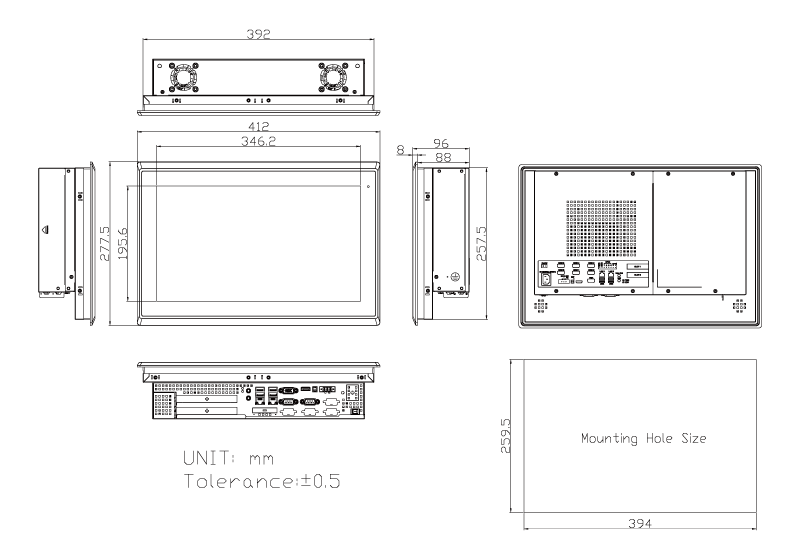

Dimensions

Order Info

PCA80156:
15.6" 1366 x 768 LCD monitor, Intel 6th Gen. Core i3-6100TE CPU, with fan design, DDR4 memory, 2 x 2.5" SSD space, 1 x PCIe x1 + 1 x PCIe x16 slot, Resistive touch screen, 9~36V DC power input, IP66 rated aluminum die-casting front bezel.

PCA80156P:
15.6" 1366 x 768 LCD monitor, Intel 6th Gen. Core i3-6100TE CPU, with fan design, DDR4 memory, 2 x 2.5" SSD space, 1 x PCIe x1 + 1 x PCIe x16 slot, Projected Capacitive touch screen, 9~36V DC power input, IP66 rated aluminum die-casting front bezel.

Downloads

Document

Description

Download Link

PCA80156-SP.pdf

Spec Sheet

PCA80XXX-UM.pdf

User Manual

Configure Now

PCA80156

15.6 inch 1366 x 768 300-nit industrial LCD monitor
Option for 1000-nit high brightness display
Resistive touch screen, option for PCAP touch screen
6th Generation Intel Core i3-6100TE processor
Option for 6th Gen. Intel Core i5-6500TE or i7-6700TE CPU
1 x PCIe x1 + 1 x PCIe x16 expansion slot
4 x USB 3.0, 2 x LAN, 3 x COM, 1 x VGA, 1 x HDMI
9 to 36V DC power input, option for ext AC power adapter
