Industrial touch panel PC with a 24 inch 1920 x 1080 Full HD LED backlight monitor, Projected Capacitive multi-touch screen, and front IP65 rated bezel. The system is powered by the Intel Bay Trail Celeron N2930 1.83GHz CPU and supports 2 x COM, 4 x USB, 2 x RJ45 GbE LAN, and 1 x HDMI output. Option for 1000-nits high brightness display and Windows 7 / 10 OS.
Loading...
12.1

PCH8120

23.8

PC9238

PC9240

  • 24 inch 1920 x 1080 Full HD industrial LCD panel
  • Aluminum front bezel with IP65 rated front bezel
  • Intel Baytrail Celeron N2930 1.83GHz CPU
  • 4 x USB, 2 x COM, 2 x GbE LAN, 1 x HDMI output
  • Projected Capacitive multi-touch screen monitor (10-point)
  • Option for 1000-nit high brightness display
  • 100~220VAC power input
  • VESA mounting holes
Availability: In stock
SKU
PC9240
Email

24" 1920 x 1080 Full HD industrial touch panel PC with Intel Baytrail N29301.83GHz CPU, Projected Capacitive multi-touch screen, and an IP65 rated front bezel.

Construction
IP65 rated front bezel
LCD Panel
Size: 24 inch
Resolution: 1920 x 1080 @60Hz
Brightness (cd/m²): 250 nits, option for 1000-nits high brightness
Contrast Ratio: 5000: 1 (typ.)
Viewing Angle: -89~89(H); -89~89(V)
Active Area (mm): 531.36(H) x 289.89(V)
Pixel Pitch (mm): 0.27675(H) x 0.27675(V)
Max. Colors: 16.7M
Backlight: LED
Touch Screen
Projected Capacitive 10-point type multi touch screen
System
CPU: Intel Bay Trail Celeron N2930 1.83GHz
Memory: DDR3 SO-DIMM 8GB
Storage: 128GB HDD
Graphic: Integrated Intel HD Graphics
Ethernet: Intel WG82574L GbE
BIOS: AMI 16 MB Flash
Audio: Realtek ALC886 HD Audio Codec
I/O Chipsets: Fintek F81866
I/O Ports
Serial Ports: 1 x RS232, 1 x RS232/422/485
USB Ports: 1 x USB 3.0, 3 x USB 2.0
Ethernet: 2 x RJ45 GbE LAN
HDMI: 1 x HDMI Output
Power: 1 x 100~220 AC Input
Power Supply
Power Input: 100~220 AC input
Power Consumption: 70 W typical, normal operation
Management: VESA DPMS compliant
Power Cord: 1 x AC Power Code
Power Adapter: N/A
Operating System (Option)
Option for Windows 7 or Windows 10 OS
Mounting
VESA mount
Weight
TBD

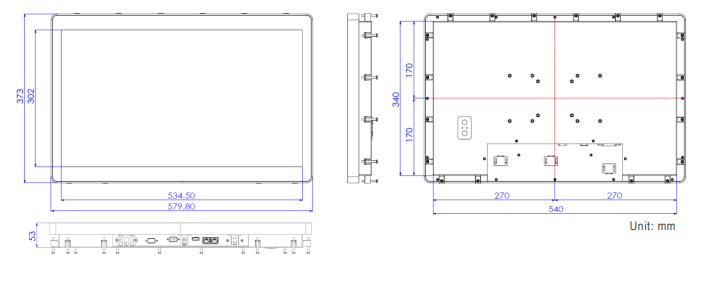

Dimension
22.8”(W) x 2.09”(D) x 14.69”(H)
Environmental
Operating Temperature: -10°C to 50°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 5% to 95%, non-condensing
IP Grade: Front IP65

PC9240:
24 inch 1920 x 1080 250-nit industrial LCD panel, Intel Bay Trail Celeron N2930 1.83GHz CPU, PCAP 10-point type touch screen, 8GB memory, 128GB HDD, AC power input, VESA mount, IP65 rated front bezel. Option for 1000-nits high brightness display and Windows 7 / Windows 10 OS.

Document
Description
Download Link
file iconPC9240-SP.pdf
Spec Sheet
  • PC9240
    24 inch 1920 x 1080 Full HD industrial LCD panel
    Aluminum front bezel with IP65 rated front bezel
    Intel Baytrail Celeron N2930 1.83GHz CPU
    4 x USB, 2 x COM, 2 x GbE LAN, 1 x HDMI output
    Projected Capacitive multi-touch screen monitor (10-point)
    Option for 1000-nit high brightness display
    100~220VAC power input
    VESA mounting holes
