Panel PC comes with 15-inch 1024 x 768 LCD panel and 5-wire resistive type touch screen, it powered by multiple Core i7 / i5 / i3 high performance process and dual display (DVI and HDMI) for HMI computer application. The enclosure comes with a IP65 rated aluminum front bezel and 2 x PCI expansion slots. purpose.
Loading...
PC8157

PC8157

FES5530

FES5530

PC8257

  • Aluminum front bezel with IP65 protection
  • 15 inch 1024 x 768 industrial LCD panel
  • Resistive type touch screen with 5 wire connection
  • Core i7 / i5 / i3 embedded computer
  • Dual display port (DVI-I and HDMI)
  • 4 COM ports and 6 USB ports
  • 2 PCI slots, option for 2 PCIe x8 slots
  • 100 ~ 240VAC 270W power supply
$1,765.00
Availability: In stock
SKU
PC8257
Email
Panel PC powered by Core i CPU and 15-inch LCD touch screen, has IP65 rated aluminum front bezel, DVI + HDMI video port, speaker and 2 x PCI expansion slots. Option for 2 x PCIex8 slot and rack mount / desktop mounting kit.
Material
Aluminum front bezel with IP65 and NEMA 4 protection
LCD panel
Size: 15 inch Display
Resolution: 1024 x 768
Brightness: 350
Viewing Angle (H/V): 160'(H) / 140'(V)
Touch screen
15 inch 5-wire resistive type touch screen monitor
Light transmission 79%
1 million activations (typical) at a single point
System
CPU: 3rd and 2nd generation core i7 / i5 / i3 processor
Memory Slot: DDR-III SODIMM x 2, Max. 16GB
System Chipset: C216
Watchdog timer: programmable WDT from 1 to 255 seconds
Video input
Dual video input: DVI + HDMI for independent video outputs
Drive Bay
1 x 3.5 inch or 2 x 2.5 inch drive bay for SATA hard drive or SSD
Mounting
Panel / Wall / Rack / Desktop / VESA mount
Connectors
4 x COM ports, 1 for RS-232/422/485, 3 for RS-232
6 x USB ports, 2 for USB 2.0, 4 for USB 3.0
2 x Ethernet ports, 10/100/1000Mbps
1 x DVI-I port
1 x HDMI port
1 x Audio (Mic-in/Line-out)
Expansion Slot
2 x PCI slots (standard)
2 x PCIe x8 slots (optional)
Power supply
100 ~ 240VAC, 270W power supply
Weight
13.67lbs

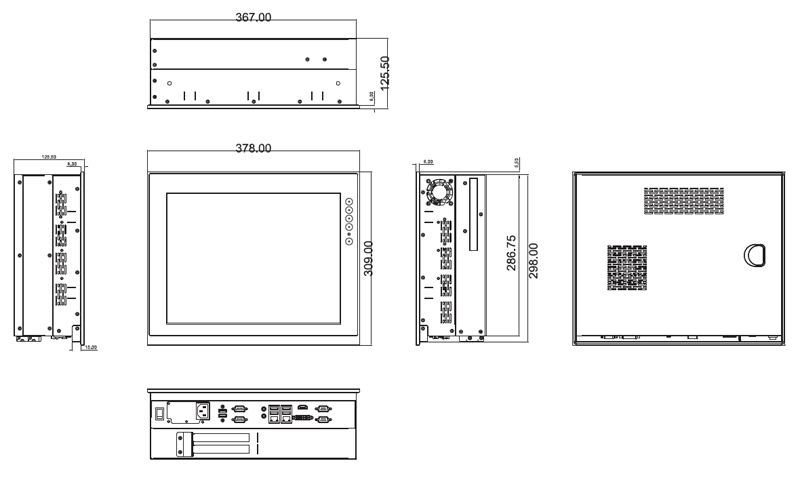

Dimension
14.88" x 4.94" x 12.17 (W) x (D) x (H)
Certification
CE
Environmental
Environment Temperature
Operating: 0 to 45 degree C
Storage: -20 to 65 degree C
Relative Humidity: 10%-95% @ 40 degree C, non-condensing
Operating vibration: 1.0G, 5-500Hz, random

PC 8257:
15 inch industrial Panel PC with Core i7 / i5 / i3 embedded computer, up to 16GB DDR3 memory, 4 COM ports, 2 PCI expansion slots and resistive type touch screen.
Price start from: $1,765.00

Document
Description
Download Link
file iconPC8257-SP.pdf
Spec Sheet
file iconPC8257-UM.pdf
User Manual
  • PC8257
    Panel PC
    15 inch 1280 x 1024 touch screen monitor
    Dual Core G1610 2.6GHz Celeron processor
    2GB SODIM memory, up to 16GB
    250GB hard drivwe
    IP65 rated aluminum front bezel
    2 x PCI expansion slots
    Option for 2 x PCI-Express by 8 expansion slots
    4.94 inch short depth casing
    VESA / panel / wall mount ready
    Starting at:
    $1,765.00
PC8257
$1,765.00

industrial grade 15-inch Panel PC

PC 8257, 15” industrial Panel PC, is equipped with Intel Core i7/i5/i3 processor, DVI-I and HDMI, 4 COM ports and 6 USB ports, 100~240VAC power supply, 5-wire resistive type touch screen and sheltered by aluminum front bezel with IP65 rugged protection.

This unit can withstand working environments in both outdoors and indoor applications with commercial or industrial use. Due to the aluminum front bezel with IP65 rugged protection, it is able to protect from low pressure water jets at any direction and is dust protected. With the 5-wire resistive type touch screen monitor, it provides long-term durability and stability in rough conditions over a long period of time especially in industrial environments.

With Window-based system support, its CPU type is 3rd and 2nd generation Intel Core i7/i5/i3, C216 chipset, DDR-III SODIMM (maximum 16GB) memory, and supports one 3.5” or two 2.5” SATA hard drive or SSD. Its dual video input includes DVI-I and HDMI. Its connectors include four COM ports (1 for RS-232/422/485, 3 for RS232), 6 USB ports (2 for USB2.0, 4 for USB3.0), two Ethernet ports, DVI-I, HDMI, and audio (Mic-in, line-out).

The 15” displays a resolution of 1024 x 768 with 350nits brightness. The flexibility of mounts available makes for easy and effortless installations. It can be mounted via panel, wall, rack, desktop or VESA. The Panel PC can withstand operating temperatures from 32°F to 113°F.

PCI slots
Key Features
- 15” 1024 x 768 Industrial LCD Panel PC
- Core i7/i5/i3 Processor
- Aluminum front bezel with IP65 rated rugged protection
- 5-wire resistive type touch screen monitor
- HDMI + DVI-I for independent video outputs
- 2 x PCI expansio slots
-4 COM ports and 6 USB ports
- 100~240VAC power supply
