PRODUCT EOL NOTIFICATION: THIS IS TO INFORM YOU THAT PC8153 HAS REACHED ITS END OF LIFE (EOL) AND HAS BEEN DISCONTINUED DUE TO THE PHASE OUT OF ITS MAIN COMPONENTS. THE REPLACEMENT PRODUCT IS  PCA80150 15" EXPANDABLE TOUCH PANEL PC WITH 1 x PCIe x1 + 1 x PCIe x16 SLOT.

Panel PC provides 15-inch LCD panel, RS-232 resistive-type touch screen monitor, Core 2 Duo all-in-one industrial embedded computer, Stereo speaker and 2 x PCI expansion slots, panel or wall mount ready.
Loading...
Fanless Panel PC FPC6120 Front View

FPC6120

Panel PC PC8120 Front View

PC8120

PC8153

  • 15 inch 1024 x 768 industrial LCD panel
  • Resistive-type touch screen monitor
  • Industrial-grade Plastic IP65 / NEMA 4 rated front bezel
  • Dual-core embedded computer
  • 2 x PCI expansion slots
  • 1 x 3.5-inch internal SATA HD
  • Video / Audio / Dual Giga-bit LAN / stereo speakers
  • 110/220VAC 250W ATX power supply
Availability: In stock
SKU
PC8153
Email
Panel PC - 15 inch 1024 x 768 touch screen monitor, Dual-Core embedded computer, IP65 rated plastic front panel, stereo speaker & 2 x PCI expansion slot. Panel or wall mount ready.
Front Panel
Industrial-grade plastic with IP65/NEMA 4 rugged protected
LCD Panel
Screen size: 15-inch
Resolution: 1024 x 768 Colors 65G (36bits)
Viewing Angle: 120° (Vertical) / 140°(Horizontal)
Luminance: 260
Embedded computer
CPU Socket: Dual-Core
BIOS: Phoenix-Award 4Mbit with RPL / PXE LAN boot ROM
Core logic: Intel Q965G+ICH8 chipset
Memory: 2 x 240-pin DDR2 memory socket, 1GB (std), up to 3GB
SSD: Compact Flash card supported
Hard drive: SATA 2 x 3.5" or 2 x 2.5" internal Hard Disk
Optical: slim-type CD-ROM, Optional for DVD/RW
Video: Intel 965GMCH Gen 3.5, Max 256MB DVMT frame buffer sharing system memory
Audio: HD Audio for 2 channel output
LAN: 2 x Gigabit-LAN
1st via Intel 82566DM, 2nd via RTL 8111B
+5V power output capability by pin 1 and + 12V by pin 8 W/ selectable via jumper setting
Watchdog timer: reset support 255 levels
Touch screen
Resistive-type touch screen
Light transmission 79% typical
Control type: RS-232 interface
Point activation: 1 million activations (typical) at a single point
Chemical / Solvent / Abrasion resistant
Front Panel Control
1 x on/off switch for LCD monitor
2 x up/down LCD brightness control
Stereo Speaker
2 x stereo speakers
I/O Ports
4 x COM ports
1 x DVI-I video port
1 x HDMI port
6 x USB ports
2 x RJ45 port
1 x MIC, 1 x Line-in
Expansion Slot
2 x PCI-32 slots
Power supply
90-264VAC full-range, 250W power supply
Operation System Support
Windows XP, Vista, Linux 2.6
Mounting
Panel/wall mount (std)
Optional for rack/desktop mount
Color
Black
Environmental
Operating Temperature 0°C to 45°C (32°F - 113°F)
Operating Humidity: 10% to 95%, @ 40°C non-condensing
Operation vibration: 1.0G, 5 ~ 500Hz, random
Net Weight
35 lbs

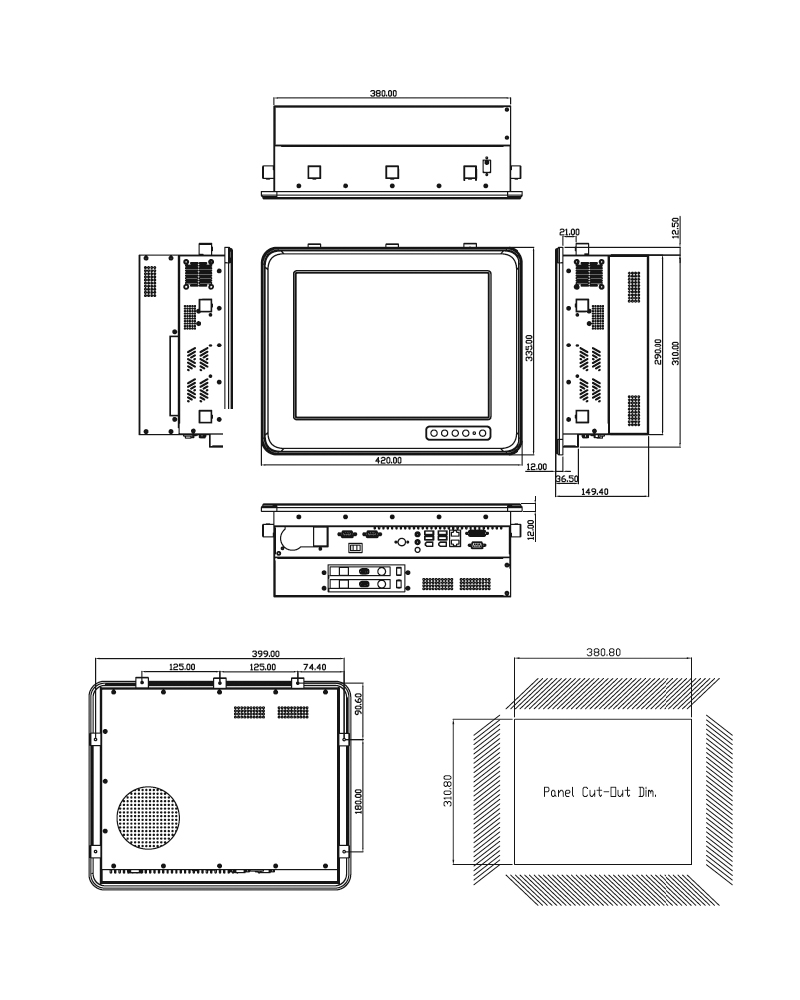

Dimension
16.54" (W) x 13.19" (H) x 3.40" (D)
Safety
CE, FCC

PC8153:
15-inch 1280 x 768 LCD panel with resistive-type touch screen, Core 2 Duo embedded system, onboard Video/LAN/Audio, built-in 3.5" HD, 2 x PCI expansion slots, wall mount or panel mount ready.

PRODUCT EOL NOTIFICATION: This is to inform you that PC8153 has reached its end of life (EOL) and has been discounted due to the phase-out of its main components. The replacement product is PCA80150 15" expandable touch panel pc with 1 x PCIe x1 + 1 x PCIe x16 slot.

Document
Description
Download Link
file iconPC_8153-data.pdf
Data Sheet
file iconPC_8153-dim.pdf
Dimension
file iconPC_8153-inst.pdf
Installation Guide
file iconPC_8153-um.pdf
User Manual
  • PC8153
    15 inch 1024 x 768 industrial LCD panel
    Resistive-type touch screen monitor
    Industrial-grade Plastic IP65 / NEMA 4 rated front bezel
    Dual-core embedded computer
    2 x PCI expansion slots
    1 x 3.5-inch internal SATA HD
    Video / Audio / Dual Giga-bit LAN / stereo speakers
    110/220VAC 250W ATX power supply
    Starting at:
PC8153

PRODUCT DESCRIPTION
LCD Panel and Touch Screen:
The 15-inch 1024 x 768 LCD panel is a TFT active type digital to digital which connects to the on board video. It comes with a standard 15-pin VGA connector on the back of the panel pc for the external display. The resistive type touch screen is mounted on the front of the LCD panel and uses a 5-wire connection to the on-board COM port (standard on COM-3). The touch screen provides protection for the LCD panel and is sealed around the front panel housing to prevent water and dust (IP65 rated) from entering.

Onboard System Board:
The embedded system board (Core 2 Duo processor) comes with the features of the standard motherboard and the additional function for industrial application. It accepts DDR2 memory (up to 3GB), 4 RS-232 ports (1 for RS-232/422/485), watch dog timer, and onboard dual 10/100/1000BT LAN / Video, The petite size of board allows it to be mounted into the slim-type panel PC housing.

Storage Device :
The system comes with a standard 3.5-inch SATA HDD. (Option for an external DVD-RW)

Expansion:
The system comes with 2 PCI-32 bits PCI expansion slots for the additional cards.

Power Supply:
The fanless open-frame 250W 110/220VAC auto-switch power supply is integrated into the panel pc.

Mounting:
The panel pc can be wall-mounted or panel-mounted (mounting kits come with panel pc). It also comes with standard VESA mounting holes on the back of the panel PC (optional VESA mounting bracket).
