Panel PC comes with Core i3 / i5 /i7 embedded industrial computer, 19 inch 450nit industrial LCD with resistive type touch screen, IP64 rated ABS plastic front bezel, Dual LAN, wireless LAN, HDMI video out port & 2.96" depth slim type panel PC. Option for VESA / panel / wall / desktop mounting.
Loading...
Panel PC PC6172 Front View

PC6172

PC7375

PC7375

PC7395

  • 19-inch 1280 x 1024 industrial LCD panel
  • 5-wire resistive-type touch screen monitor
  • Core i3 / i5 / i7 embedded computer
  • 802.11 b/g/n high speed wireless
  • 3W internal speaker
  • IP64 rated front plastic bezel
  • Slim type housing  2.95-inch depth
  • Versatile mounting solution, panel / wall / stand mounting
$1,810.00
Availability: In stock
SKU
PC7395
Email
Panel PC - 19 inch touch screen monitor, Core i3 / i5 / i7 embedded computer, IP64 rated ABS plastic front bezel, speaker & 2.96" depth PC. Panel / wall / VESA mount.
Material
Heavy-duty steel
LCD Panel
Size: 19 " TFT LCD
Max. Resolution: 1280 x 1024
Brightness: 450
Contrast Ratio 1000:1
Viewing Angle (H/V):178'(H) / 178'(V)
Pixel Pitch (mm): 0.294(H) x 0.294(V)
Back light MTBF: 50000 hrs
Colors: 16.7M
Main System
CPU: Socket G (PGA989) Intel Core i processor
Chip set: Intel HM55
RAM: Two 204-pin 800/1066 DDR3 dual-channel SO-DIMMs supported (system max. 8GB)
SSD: SATA SDD
Watchdog Timer: Software program support 1~255 sec. System reset
Audio: AMP 3W + 3W (internal speaker)
Expansion Interface: 1 x wireless Lan 802.11 b/g/n module (internal PCle mini card
interface), 1 x Bluetooth function (internal USB interface, Bluetooth V2.1+EDR)
Drive Bay: 1 x 2.5" SATA HDD bay
LED function: 1 x Power on/off LED on front panel
Membrane keypad:
LCD on/off, Brightness up/down, Volume up/down (5 keys)
Touch screen
Resistive type 5-wire (touch controller IC is on board) or capacitive type touch screen
without HDD bay
Connectors
1 x RS-232 COM port
1 x RS-232/422/485 COM port
2 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power switch
1 x Reset Button
1 x Audio port (line-out)
1 x VGA
1 x Power jack
1 x HDMI port
Power supply
96W power adapter
Input: 90 VAC~264VAC, 50/60 Hz
Output: 12 VDC
Power requirement: 12 VDC
Power consumption: 87W
Mounting
Panel, wall, rack, stand and arm VESA 100mm x 100mm
Color
Black
Environmental
Environment Temperature Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
IP level: Front panel IP64
Safety & EMI: CE/ FCC/ CB/ CCC
Net Weight
6.2 kg
Dimension
394mm(W) x 309mm(D) x 75mm(H)
panel pc
panel pc
panel pc
PC 7395:
19" Touch Panel PC, Core i3-350M 2.26GHz CPU, 2GB DDR3 memory & 120GB SATA HD.
IP64 rated front ABS plastic bezel, Panel or wall mount ready.

Price: $1,810.00
Document
Description
Download Link
file iconPC_7395-data.pdf
Data Sheet
file iconPC_7395-dim.pdf

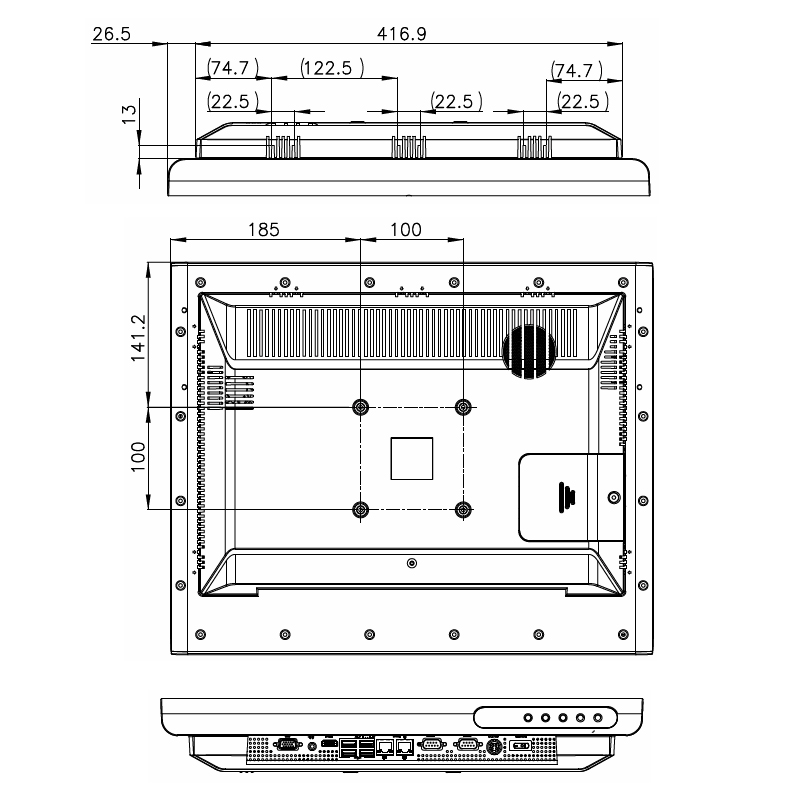

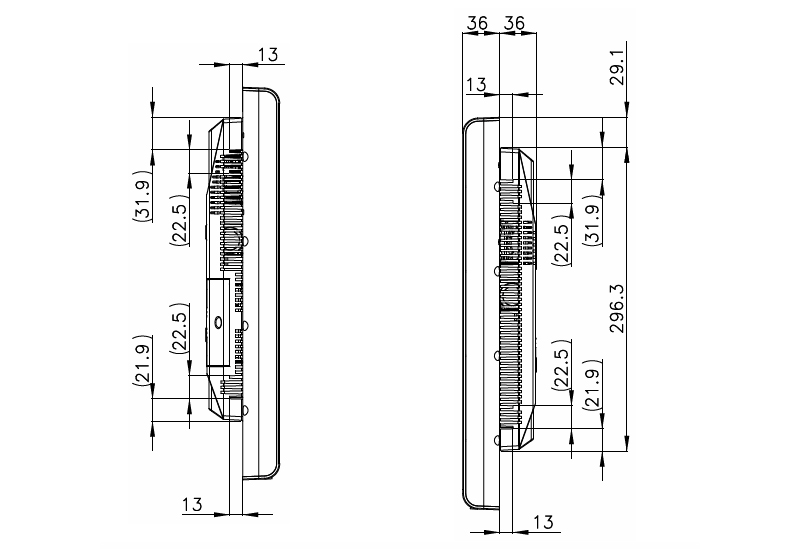

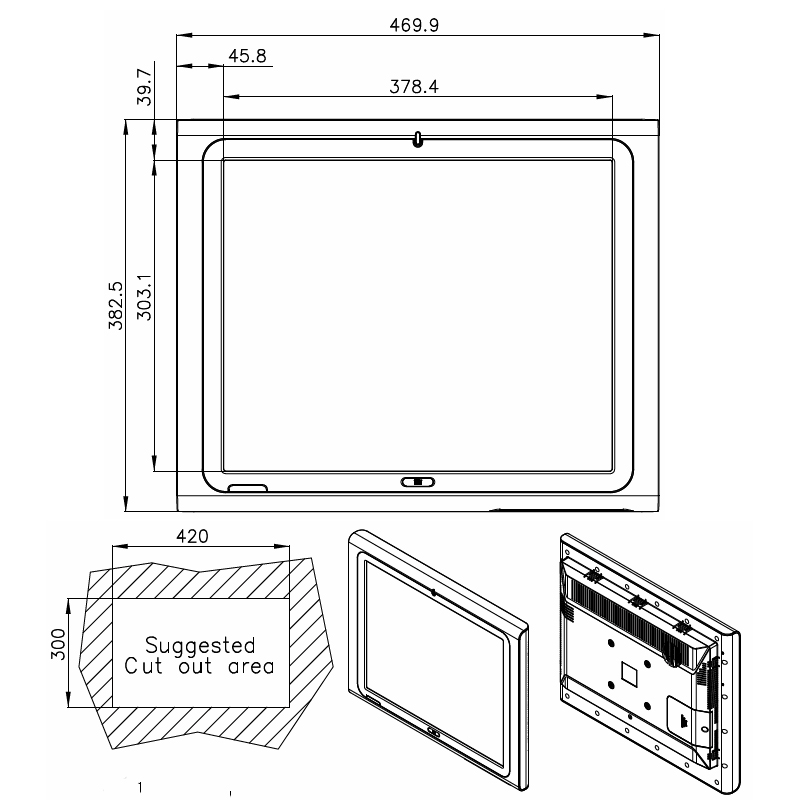

Dimension
  • PC7395
    Panel PC Core i3 / i5 / i7 embedded computer
    19" 1280 x 1024 touch screen
    IP64 ABS plastic front bezel & speaker
    2.96" short depth casing
    Panel / wall / VESA mount
    Starting at:
    $1,810.00
PC7395
$1,810.00

LCD Panel and Touch Screen:
  The 19 inch (1024x768) LCD panel is an embedded PC LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel with a 5-wire flat touch window. The software OSD utility allows users to adjust system settings from the software under the Windows environment instead of adjusting from the membrane keypad below the front panel.

Onboard System Board:
  The embedded system board comes with a mobile Core i3/i5/i7 and Celeron processor. It comes with the features of a standard motherboard and the additional function for industrial application. It comes with an HM55 chip set, blue tooth function, SODIM DDR3 memory (up to 8GB), 2 x serial/ 4 x USB ports, speaker and on board dual LAN. The small size of the board allows it to be mounted into the compact-size housing. The working temperature range is from 0°C to 50°C.

Storage Device :
 The system comes with a 2.5" SATA HDD and a CF card to that are mounted on the side of the embedded board.

Expansion:
 We provide 2 x RS-232, 12VDC input, 1 x VGA, 1 x HDMI, 4x USB 2.0, and also 2 x RJ-45 Giga LAN.

Power Supply:
The power supply is an open-frame 12VDC input power supply from 90VAC~264VAC. An external 12VDC 96W power adapter for AC power source.

Mounting:
Panel PC can be panel, wall, rack, stand and arm VESA mounted (100mm x 100mm).

References
What is mounting solution?
Mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly.
