HMI Panel PC comes with Core i3 / i5 / i7 embedded computer system, 17-inch 380nit LCD with resistive type touch screen, IP64 rated ABS plastic front bezel, Dual LAN, wireless LAN, HDMI video out port & 3.0" depth slim type panel PC. Option for VESA / panel / wall / desktop mounting.
Loading...
Panel PC PCH3991 Front View

PCH3991

PC7375

  • 17" 1280 x 1024 industrial LCD panel
  • 5-wire resistive-type touch screen monitor
  • Core i3 / i5 / i7 embedded computer system
  • 802.11 b/g/n high speed wireless
  • 3W internal speaker
  • IP64 rated front plastic beze
  • versatile mounting solution. panel .wall .stand mounting
$1,750.00
Availability: In stock
SKU
PC7375
Email
Panel PC - 17 inch 1280 x 1024 LCD touch screen, Core-i embedded CPU, Wireless LAN, HDMI video port, IP64 rated ABS plastic front bezel, speaker and ultra slim 3 inch depth enclosure. Panel / wall/ VESA mount.
Material
Heavy-duty steel
LCD Panel
Size: 17 " TFT LCD
Max. Resolution: 1280 x 1024
Brightness: 350
Contrast Ratio 800:1
Viewing Angle (H/V):160'(H) / 160'(V)
Pixel Pitch (mm): 0.264(H) x 0.264(V)
Backlight MTBF: 50000 hrs
Colors: 16.7M
Main System
CPU: Socket G (PGA989) Intel Arrondale processor
Chipset: Intel HM55
RAM: Two 204-pin 800/1066 DDR3 dual-channel SO-DIMMs supported (system max. 8GB)
SSD: SATA SDD
Watchdog Timer: Software programmable supports 1~255 sec. System reset
Audio: AMP 3W + 3W (internal speaker)
Expansion Interface: 1 x wireless Lan 802.11 b/g/n module (internal PCle mini card
interface), 1 x Bluetooth function (internal USB interface, Bluetooth V2.1+EDR)
Drive Bay: 1 x 2.5" SATA HDD bay
LED function: 1 x Power on/off LED on front panel
Membrane keypad:
LCD on/off, Brightness up/down, Volume up/down (5 keys)
Touch Screen
Resistive type 5-wire (touch controller IC is on board) or capacitive type touch screen
without HDD bay
Connectors
1 x RS-232 COM port
1 x RS-232/422/485 COM port
2 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power switch
1 x Reset Button
1 x Audio port (line-out)
1 x VGA
1 x Power jack
1 x HDMI port
Power supply
96W power adapter
Input: 90 VAC~264VAC, 50/60 Hz
Output: 12 VDC
Power requirement: 12 VDC
Power consumption: 85W
Mounting
Panel, wall, rack, stand and arm VESA 100mm x 100mm
Color
Black
Environmental
Environment Temperature Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
IP level: Front panel IP64
Safety & EMI: CE/ FCC/ CB/ CCC
Net Weight
6.0 kg
Dimension
428mm(W) x 350mm(D) x 76mm(H)
panel pc
panel pc
PC 7375:
Panel PC comes with 17 inch 1280 x 1024 touch screen monitor,, Core i3-350M 2.26GHz CPU, 2GB DDR3 memory & 120GB SATA HD.
IP64 rated front ABS plastic bezel, Panel or wall mount ready.

Price: $1,750
Document
Description
Download Link
file iconPC_7375-data.pdf
Data Sheet

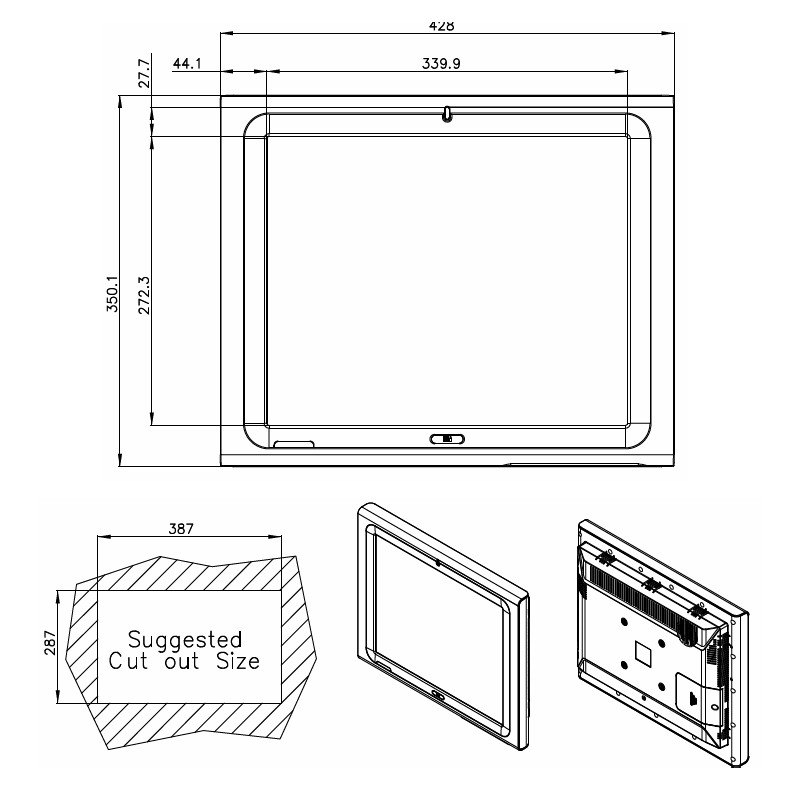

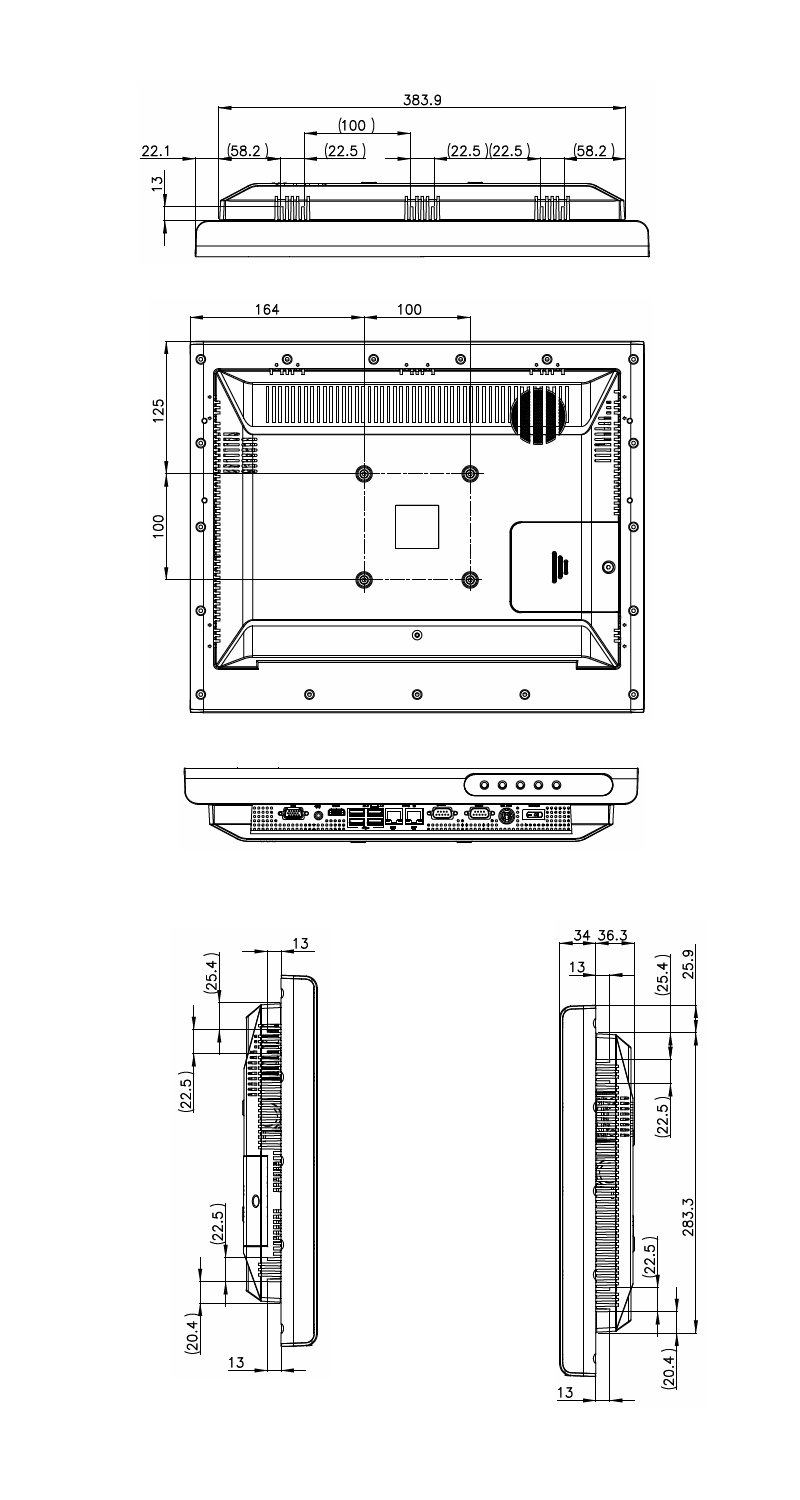

file iconPC_7375-dim.pdf
Dimension
  • PC7375
    Panel PC Core i3 / i5 / i7 embedded computer
    17" 1280 x1024 touch screen
    IP64 ABS plastic front bezel & speaker
    3" short depth depth casing
    Panel / wall/ VESA mount
    Starting at:
    $1,750.00
PC7375
$1,750.00

LCD panel and touch screen:
  The 17 inch (1024x768) LCD panel is an embedded PC LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel with a 5-wire flat touch window. The software OSD utility allows users to adjust the system settings from the software under the Windows envronment instead of adjusting from the membrane keypad below the front panel.

Onboard system board:
  The embedded system board comes with a mobile Core i3/i5/i7 and Celeron processor. It comes with the features of a standard mother board and additional functions for industrial applications. It comes with an HM55 chipset, blue tooth function, SODIM DDR3 memory (up to 8GB), 2 x serial/ 4 x USB ports, speaker and on board dual LAN. The small size of the board allows it to be mounted into the compact-size housing. The working temperature range is from 0°C to 50°C.

Storage Device :
  The system comes with a 2.5" SATA HDD and a CF card for easy access that is mounted on the side of the embedded board.

Expansion:
  We provide 2 x RS-232, 12VDC input, 1 x VGA, 1 x HDMI, 4x USB 2.0, and also 2 x RJ-45 Giga LAN.

Power Supply:
  The open-frame 12VDC input power supply from 90VAC~264VAC. A external 12VDC 96W power adapter for AC power source.

Mounting:
  Panel PC can be panel, wall, rack, stand and arm VESA mounted (100mm x 100mm).

References
What is IP rating?
IP rating refers to the degree of protection against water and dust provided by a computer's enclosure.

What is projected capacitive touch screen?
Projected capacitive touch screen is a multi-touch solution capable to support 10 simultaneous touch points and is extremely durable in most environments.

What is mounting solution?
Mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly.
