Panel PC, Atom N270 fanless computer
15" 1024 x 768 touch screen
WiFi, stereo speaker, Web camera
Remote control
Wall mount ready
15" 1024 x 768 touch screen
WiFi, stereo speaker, Web camera
Remote control
Wall mount ready
HMI Panel PC comes with 15 inch 1024 x 768 LCD display with resistive type touch screen, Atom N270 embedded computer, CF card storage, wireless LAN, remote controller & 10 to 24VDC power input. panel / wall / VESA mount ready.
PC6415
- 15 inch 1024 x 768 industrial LCD panel
- Atom N270 1.6GHz fan less embedded computer
- Resistive-type touch screen monitor
- Integrated a 300K pixel camera with digital microphone
- IP63 front panel compliant
- Wireless LAN WiFi, AMP speaker & remote control
- Available for panel, wall, stand and arm, VESA mounting
- 90/264VAC power input, 49W power consumption
$1,195.00
Availability:
In stock
SKU
PC6415
Panel PC, 15 inch 1024 x 768 touch screen monitor, Atom N270 1.6GHz fan less embedded computer, WiFi, stereo speaker, Web camera, remote control & wall mount ready.
- Material
- ABS+PC plastic front frame
- LCD Panel
- Size: 15 ”
Display Resolution: 1024 x 768
Brightness: 250
Display Color: 16.2M
Viewing Angle (H/V): 160'(H)/ 160'(V)
Contrast Ratio: 600:1 (typ.)
Pixel Pitch: 0.297 (H) x 0.297 (V)
Backlight MTBF: 40,000 hours
- Motherboard
- CPU: Intel Atom N270 1.6GHz processor
Chipset: Intel 945GSE + ICH7M
Memory: Supports one 400MHz or 533MHz DDR2 SO-DIMM (Max. 2GB)
SSD: CF TypeII
HDD: 1 x 2.5" SATA HDD bay
Optional for HSUPA mobile module (USB module)
- Connectors
- 1 x RJ-45 for RS-232 COM Port
1 x RJ-45 for RS-232/422/485 COM port
1 x RJ-45 for Giga LAN
5 x USB2.0
2 x Power switch
1 x Reset Button
1 x DIO(4in/4out)
1 x Terminal block for 10~28VDC Input
1 x VGA Port
1 x Power Jack
- Camera
- 300K pixel camera with digital microphone
- Power supply
- 36W Power adapter
Input: 90~264VAC, 50/60Hz
Output: 12VDC
10~28VDC power requirement
49W power consumption
- Other Function
- Comes with
1 xAMP 1.5W + 1.5W audio
1 x wireless LAN module
1 x Bluetooth function
1 x remote controller
- Color
- Back/White/Gray
- Mounting
- Panel, Wall, VESA 100mm x 100mm
- Net/ Gross Weight
- 1.8kg

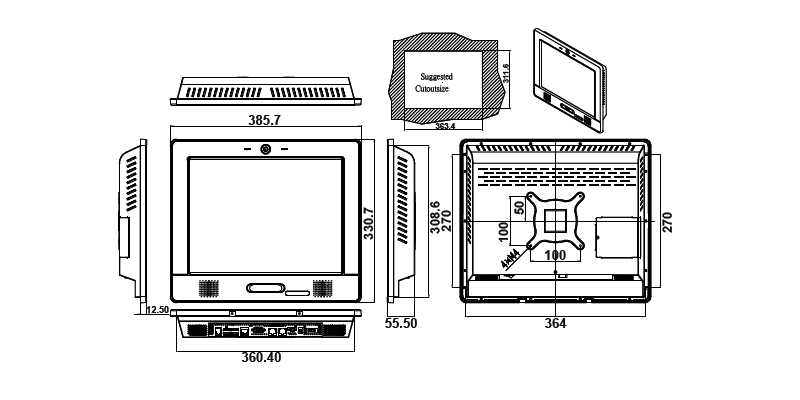

- Dimension 385.7mm x 55.5mm x 330.7mm
(W) x (D) x (H)
- Certification
- FCC, CE, CCC
- Environmental
- Environment Temperature
Operating: -20 to 60 degree C
Storage: -20 to 60 degrees C
Relative Humidity: 5~90%, non-condensing
Vibration: 5~17Hz
Shock: 10G acceleration part to part
PC 6415:
15" 1024 x 768 LCD panel with touch screen, Atom embedded system, wireless LAN, stereo speaker, Web Camera, remote controller & Panel or wall mount ready, white or black face plate color available
Price starts from: $1,195.00
Document
Description
Download Link
PC_6415-data.pdfData Sheet

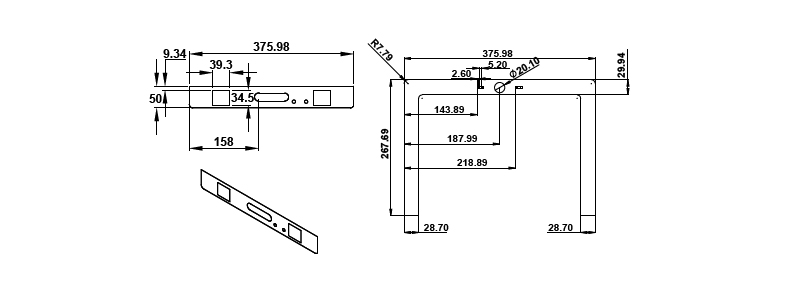

PC_6415-dim.pdfDimension
PC_6415-um.pdfUser Manual
-
