Panel PC, Atom N270 fanless computer
8" 800 x 600 touch screen
WiFi, stereo speaker
Remote control
Wall mount ready
8" 800 x 600 touch screen
WiFi, stereo speaker
Remote control
Wall mount ready
Panel PC comes with 8-inch 800 x 600 LCD display with resistive type touch screen, Atom N270 embedded computer, CF card storage, wireless LAN, remote controller (on/off LCD screen) & 10 to 28VDC power input. panel / wall / VESA mount ready.
PC6408
- 8-inch 800 x 600 industrial LCD panel
- Resistive-type touch screen monitor
- Atom N270 1.6GHz fan less embedded computer
- IP63 front panel compliant
- Wireless LAN, AMP speaker & remote control
- Available for panel, wall, stand and arm, VESA mounting
- 90/264VAC power input, 25W power consumption
$910.00
Availability:
In stock
SKU
PC6408
Panel PC - 8 inch 800 x 600 touch screen monitor, Atom N270 1.6GHz fan less embedded computer, WiFi, stereo speaker, remote control & wall mount ready.
- Material
- ABS+PC plastic front frame
- LCD Panel
- Size: 8 ”
Display Resolution: 800 x 600
Brightness: 250
Display Color: 262K
Viewing Angle (H/V): 140'(H)/ 130'(V)
Contrast Ratio: 500:1 (typ.)
Pixel Pitch: 0.2025 (H) x 0.2025 (V)
Back light MTBF: 30,000 hours
- Motherboard
- CPU: Intel Atom N270 1.6GHz processor
Chip set: Intel 945GSE + ICH7M
Memory: Supports one 400MHz or 533MHz DDR2 SO-DIMM (Max. 2GB)
SSD: CF TypeII
- Touch Screen
- Resistive Type 5-wire with RS-232 interface
- Connectors
- 1 x RJ-45 for RS-232 COM Port
1 x RJ-45 for RS-232/422/485 COM port
1 x RJ-45 for Giga LAN
5 x USB2.0
2 x Power switch
1 x Reset Button
1 x Terminal block for 10~28VDC Input
1 x VGA Port
1 x Power Jack
- Power supply
- 36W Power adapter
Input: 90~264VAC, 50/60Hz
Output: 12VDC
10~28VDC power requirement
25W power consumption
- Other Function
- Comes with
1 xAMP 1.5W + 1.5W audio
1 x wireless LAN module
1 x remote controller
- Color
- Back/White/Gray
- Mounting
- Panel, Wall, VESA 100mm x 100mm
- Net/ Gross Weight
- 0.8kg
- Dimension
- 263.2mm x 54.4mm x 221.2mm
(W) x (D) x (H)
- Certification
- FCC, CE, CCC
- Environmental
- Environment Temperature
Operating: -10 to 50 degree C
Storage: -20 to 60 degrees C
Relative Humidity: 5~90%, non-condensing
Vibration: 5~17Hz
Shock: 10G acceleration part to part
PC 6408:
8" 800 x 600 LCD panel with touch screen, Atom embedded system, wireless LAN, stereo speaker, remote controller & Panel or wall mount ready, white or black face plate color available
Price starts from: $910.00
Document
Description
Download Link
PC_6408-data.pdfData Sheet

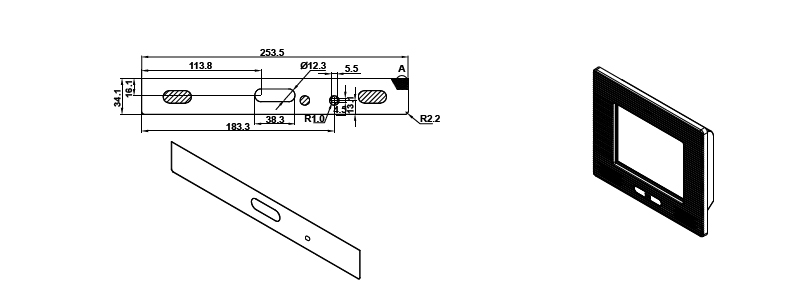

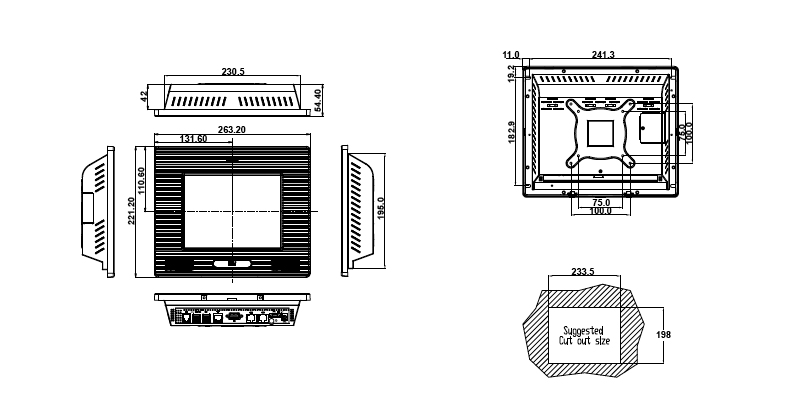

PC_6408-dim.pdfDimension
PC_6408-um.pdfUser Manual
-
