Panel PC comes with Core 2 Duo industrial embedded computer, 15-inch 350nit LCD panel, resistive type touch screen monitor (RS-2320, Ip65 rated stainless steel front bezel, Dual LAN, 2.5-inch SATA HD & option for slim type DVD optical drive.
Loading...
Panel PC PC5153 Front View

PC5153

Panel PC PC6172 Front View

PC6172

PC6152

  • 15 inch 1280 x 1024 industrial LCD panel
  • Resistive-type touch screen monitor
  • Core 2 Duo or Celeron M embedded computer
  • Support Intel 945GME + ICH7R Chip set
  • On-board type II compact flash slot
  • Stainless front panel
  • Option for slim SATA DVD optical drive
$1,540.00
Availability: In stock
SKU
PC6152
Email
Panel PC - 15 inch 1024 x 768 touch screen monitor, Core 2 Duo embedded computer, IP65 rated stainless steel front bezel & 3.31" depth housing. VESA mount ready.
Material
Heavy-duty steel
LCD Panel
Size: 15" SXGA LCD
Max. Resolution: 1024 x 768
Brightness: 350
Pixel Pitch (mm): 0.297(H) x 0.297(V)
Main System
CPU: Intel Core Duo/ Core solo/ Core 2 Duo/ Celeron M processor
Chip set: Intel 945GSE + ICH7M + FWH (FSB533/667MHz)
Memory Support: 2 x 200pin DDR2 SO-DIMM
Max. System Memory: 4GB
Open Frame: yes
Sound: AC’97 Codec
Waterproof Level: IP65
Touch Screen
Resistive type 5-wire flat touch window (single touch) or projective capacitive type flat touch window (multi-touch)
Connectors
2 x PS/2 Port
1 x Line in / Line out / MIC in
4 x COM port (COM 1/3/4 for RS232, COM2 for RS232/ 422/ 485, COM3/4 support +5V, +12V selectable)
4 x USB 2.0
1 x LAN (10/100/1000 Mbps)
1 x VGA
2 x 2.5” SATA HDD (optional)
1 x IDE CF Slot on board
1 x slim CD ROM (optional)
Power supply
AC ATX 180W power adapter
Mounting
VESA 100mm x 100mm
Color
Black
Environmental
Environment Temperature Operating: 0 to 40 degree C
Storage: -20 to 60 degrees C
Humidity: 20~90%
Safety & EMI: CE/ FCC
Net Weight
7.3 kg
Dimension
403mm(W) x 84mm(D) x 303mm(H)

PC 6152:
17-inch touch panel PC, Celeron M 1.73GHz, 1GB memory & 120GB SATA HD .
Price: $ 1,540.00


Document
Description
Download Link
file iconPC_6152-data.pdf
Data Sheet

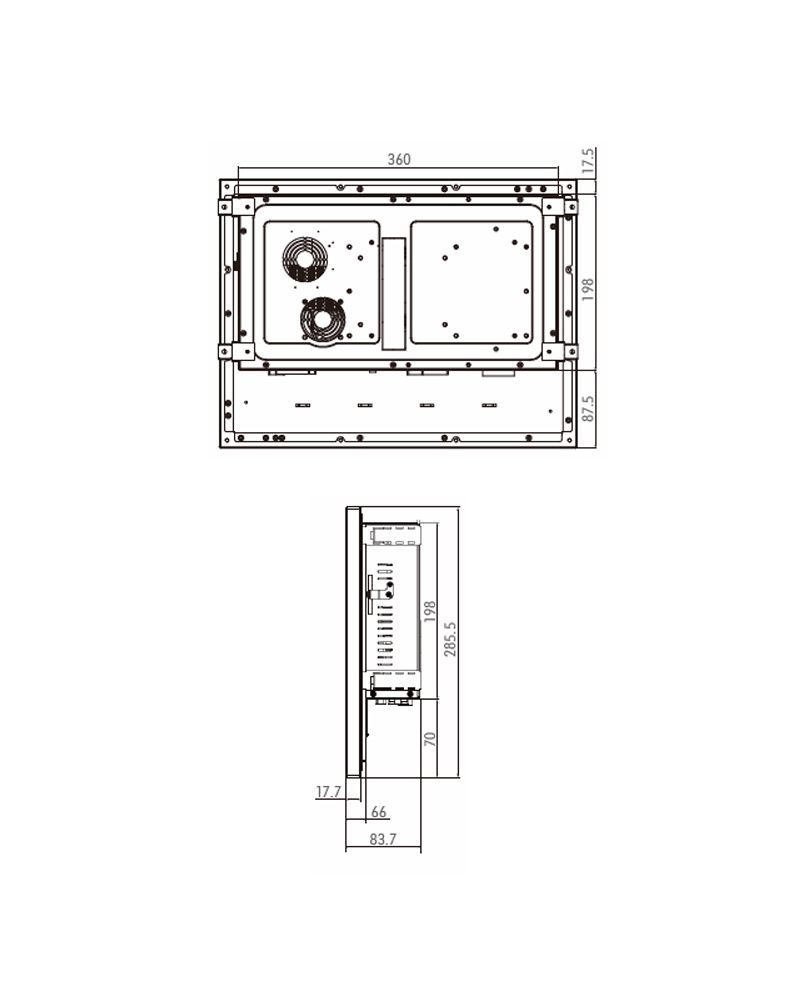

file iconPC_6152-dim.pdf
Dimension
file iconPC_6152-um.pdf
User Manual
  • PC6152
    Panel PC Core 2 Duo embedded computer
    15" 1024 x 768 touch screen
    Stainless steel front bezel
    3.31" short depth casing
    VESA mount ready
    Starting at:
    $1,540.00
PC6152
$1,540.00

LCD Panel and Touch Screen:
  The 15 inch (1024x768) LCD panel is a SXGA LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel with 5-wire flat touch window. The resistive touch screen provides protection for the LCD panel and a stainless steel bezel with projected capacitive or resistive touchscreen that is sealed around the front panel housing.

On Board System Board:
  The embedded fanless system board comes with a Core 2 duo/ Celeron M processor. It comes with standard motherboard features as well as  additional functions for industrial applications. It accepts Celeron M processor, DDR2 memory (up to 4GB), 4 x serial/USB ports and on board LAN/Audio. The small size of the board allows it to be mounted into the compact pc's housing. The working temperature range is from 0° C to 40° C.

Storage Device :
The system comes with 1 x CF slot, 1 x 2.5" SATA HDD Bay (optional), and 1 x Slim CD ROM (optional).

Expansion:
We provide 1 x VGA, 1 x Line in / Line out / MIC in, and 4 x COM port (COM 1/3/4 for RS232, COM2 for RS232/ 422/ 485, COM3/4 support +5V, +12V selectable).

Power Supply:
Comes with an open-frame AC ATX 180W power adapter.

Mounting:
Panel PC can be VESA mounted (100mm x 100mm).
