24 inch HMI Panel PC comes with a 1920 x 1080 full HD display resolution, 4th generation Haswell CPU, projected capacitive multi touch screen, IP65 rated aluminum front bezel, AC power input, and -10° to 50°C wide range working temperature.
Loading...
21.5

PC5026

PC5824

  • IP65 rated aluminum front bezel
  • 24 inch 1920 x 1080 Full HD industrial monitor
  • Projected capacitive multi-touch screen monitor
  • 4th generation Haswell Core i CPU
  • 2 full size PCIe mini card expansion
  • Support IPMI 2.0 compliant remote intelligent solution
  • Dual LAN, 6 USB, 5 COM, VGA & HDMI video port
  • -10ºC to 50ºC wide range working temperature
  • 90~264V AC power input, option for DC power input
Availability: In stock
SKU
PC5824
Email
24 inch 1920 x 1080 full HD touch panel PC with an IP65 rated ultra-slim aluminum front panel bezel, AC power input, and -10°C to 50°C wide range working temperature.
Material
IP65 rated aluminum front bezel
Sheet metal rear cover
LCD panel
Size: 24”
Max. Resolution: 1920 x 1080
Brightness: 250 cd/m^2
Contrast Ratio: 3000:1
Viewing Angle (H/V): 178'(H)/ 178'(V)
Pixel Pitch (mm): 0.28 x 0.28
Colors: 16.7M
MTBF: 30,000 hrs
Touch Screen
24 inch projected capacitive multi-touch screen monitor
System
CPU: 4th generation Haswell Core i3 Dual-Core i3-4330 3.5GHz /
4th generation Haswell Core i5 Quad-Core i5-4570S 3.6GHz /
Pentium dual Core G3220 3.00GHz CPU
Chipset: H81
Memory: 2 x 204-pin DDR3 SO-DIMM (Max. 16GB)
Video input
VGA & HDMI video output
Panel Control
1 x Reset button
1 x Power switch
Drive Bay
1 x 2.5” HDD/SDD drive bay or
1 x 3.5” HDD/SDD drive bay
Mounting
VESA mount
Option for arm, stand, wall / panel mounting kit
Expansion Slot
1 x full size PCIe mini Card
1 x full size PCIe mini card colay mSATA
Connectors
5 x COM, 1 for RS422/485, 4 for RS-232
4 x USB 2.0
2 x USB 3.0
1 x HDMI
1 x VGA
2 x RJ45 GbE LAN
1 x AC/DC power plug
1 x AT / ATX Switch
1 x Clear CMOS
Power supply
90~264V AC, 50/60Hz power input
Option for 24V DC, 50/60Hz power input
Weight
23.2lb

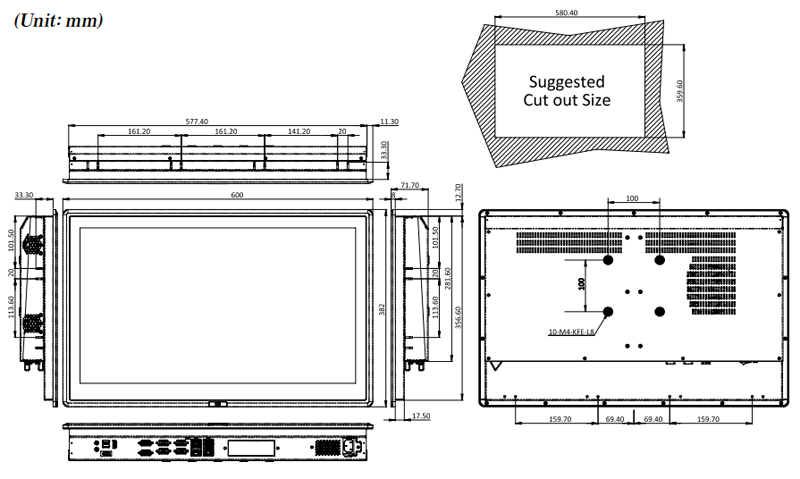

Dimension
23.62”(W) x 15.04”(H) x 1.94”(D)
Environmental
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Relative Humidity: 10~95%, non-condensing
Safety
CE, FCC

PC5824:
24 inch industrial Panel PC with IP65 rated ultra-slim aluminum front bezel, 4th generation Haswell Core i embedded computer, onboard 4GB DDR3 memory, 1 x 2.5" or 3.5" HDD/SSD drive bay, and projected capacitive multi-touch screen. Option for arm, stand, wall/panel mounting kit.

Document
Description
Download Link
file iconPC5824-SP.pdf
Spec Sheet
file iconPC58XX-UM.pdf
User Manual
  • PC5824
    Panel PC with ultra slim enclosure
    24 inch 1920 x 1080 LCD monitor
    Projected capacitive 10-point touch screen
    IP65 rated aluminum front bezel
    Haswell Pentium/Core i embedded CPU
    Intel H81 chipset, 4GB SODIM memory up to 16GB
    1 x 2.5 inch HDD/SDD drive bay, 2 x full size PCIe mini card
    220W AC power supply
    Panel/wall mount ready
    Starting at:
PC5824

24" Panel PC

PRODUCT DESCRIPTION
An industrial-grade Panel PC features with 24 inches LCD monitor with 1920 x 1080 full HD display resolution and projected capacitive or 5-wire resistive touch screen options. Based on Intel’s most powerful Haswell 4th generation Core i3-4330 / i5-4570S processor with H81 chipset, the PC58XX line delivers extraordinary computing performance while consuming low amount of power. The embedded computer board includes one onboard DDR3 SO-DIMM socket for a maximum of 16GB system memory and one 2.5 in. SATA Hard Disk Drive (option for 3.5-inch hard drive) along with dual Ethernet, five COM ports, six USB ports, two full-size mini PCI Express slots, a VGA and an HDMI port to accommodate a wide range of connectivity requirements. The enclosure is encased in a rugged chassis with an IP65 rated ultra-slim aluminum front bezel and a sheet metal rear cover, which meets the toughest industrial and environmental standards. In addition to panel mounting, standard VESA mounting holes are available on the rear for easy mounting to any fixture or wall. The system supports wide voltage power input from 90 to 264V AC and an optional 24V DC to meet the requirements of unstable electricity environments. Besides, it can operate in wide range temperature environments from 14°F to 122°F (-10°C to +50°C).
