Panel PC comes with Quad-Core / Dual-Core embedded computer, 19-inch 1280 x 1024 LCD panel, resistive type touch screen monitor, IP65 rated aluminum front panel, Dual Gigabit LAN, 2.5-inch SATA HD, slim DVD and 1 x PCI / PICEx4 expansion slot.
Loading...
Panel PC PC5176 Front View

PC5176

Panel PC PC5173 Front View

PC5173

PC5196

  • 19-inch 1280 x 1024 industrail LCD panel
  • 5-wire resistive-type touch screen monitor
  • IP65 rated Alimuinum front bezel
  • Quad-Core / Dual-Core embedded computer
  • Selectable AT / ATX power mode
  • 1 x PCIEx4 or PCI expansion slot
  • Available for Panel / wall / Stand mounting type
$1,695.00
Availability: In stock
SKU
PC5196
Email
Panel PC - 19 inch 1280 x 1024 touch screen monitor, Quad-Core / Dual-Core embedded computer, IP65 rated aluminum front bezel & 1 x PCI / PCI-Ex4 slot. panel / wall mount ready.
Material
Heavy-duty steel,
IP65 rated Alimuinum front bezel
LCD panel
Size: 19 inch LCD
Max. Resolution: 1280(W) x 1024(H)
Brightness: 450
Contrat Ratio: 1000:1
Viewing Angle (H/V):160'(H) / 170'(V)
Pixel Pitch (mm): 0.294(H) x 0.294(V)
Backlight MTBF: 50000 hrs
Colors: 16.7M
Main system
CPU: LGA 775 Intel Core 2 Extreme/ Quad/ Duo, Celeron with a 1333/ 1066/ 800 Hz FSB
support
RAM: Supports two 800/1066M Hz DDRlll DIMM (4GB Max.)
SSD: CF type ll
Chipset: Intel G41 + Intel ICH7
HDD Driver Bay: 1 x 2.5" SATA/IDE HDD bay with anti-shock
Extension Slot: Either 1 x PCI slot or 1 x PCIe x 1 slot (optional riser card), 1 x PCIe mini
card
LED function: 1 x Power on/off LED on front panel
Touch screen
Resistive type 5-wire with RS-232 interface
Connectors
4 x RS232 COM port
1 x RS-232/422/485 port
2 x RJ-45 for LAN port
6 x USB 2.0
1 x VGA 2.0
1 x Audio (Line-in, Line-out, MIC-in)
1 x LPT
1 x PS/2 (KB/MS)
1 x Power switch
1 x AT/ ATX switch
Power supply
AC input ATX power supply, 220W power adapter
Input: 90 VAC~264VAC, 50/60 Hz
Output (max.): 3.3A @ 14A, 5V@ 12A, 12V @ 10A, -12V @ 0.8A
DC input ATX power supply, 200W power adapter
Input: 24 VDC (18~36VDC)
Output (max.): 3.3A @ 12A, 5V @ 12A, 12V @ 15.4A, -12A@ 0.5A
Mounting
Panel, wall, rack, stand and arm VESA 100mm x 100mm Silver (Pantone 8001C)
Color
Black
Environmental
Environment Temperature Operating: -10 to 50 degree C
Storage: -20 to 60 degrees C
Vibration: 5~17 Hz, 0.1 double amplitude displacement
17~640 Hz, 1.5 G acceleration peak to peak
Shock: 10G acceleration part to part (11ms)
Net Weight
28.35 lbs

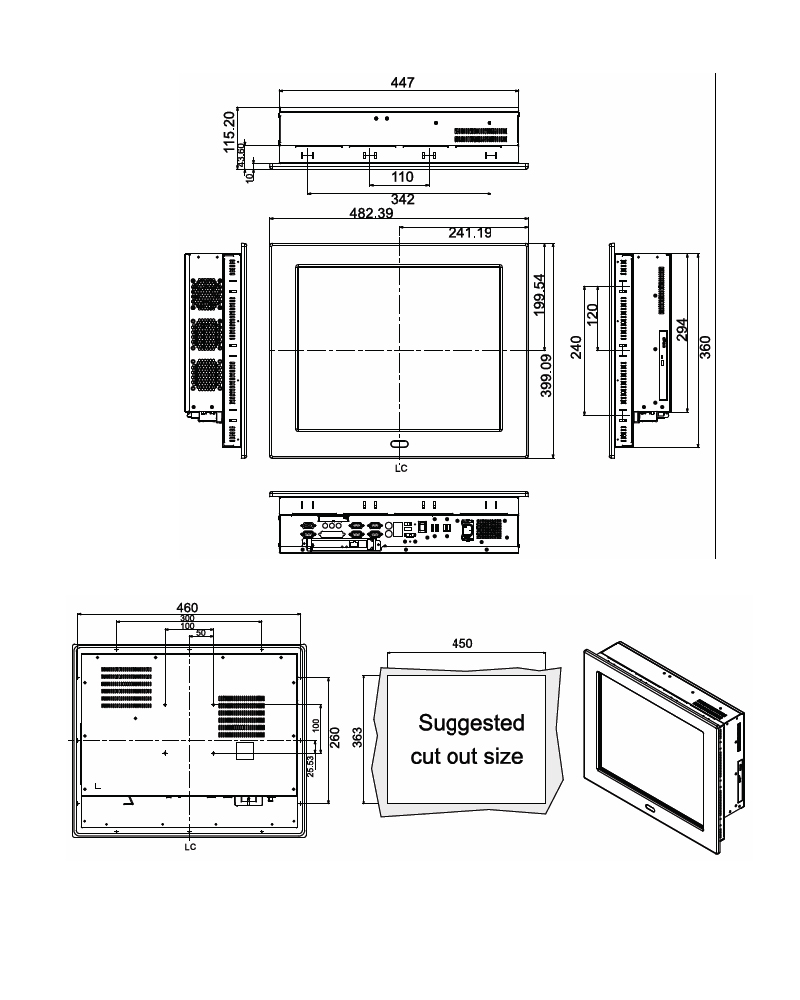

Dimension
483mm(W) x 399mm(D) x 115.2mm(H)

PC 5196: 19" LCD panel with resistive-type touch screen, Dual Core 2.2GHz embedded system, 1GB DDR3 memory, 120GB SATA-3 HD


Price start from: $1,695.00
Document
Description
Download Link
file iconPC_5196-data.pdf
Data Sheet
file iconPC_5196-dim.pdf
Dimension
  • PC5196
    Panel PC Quad Core embedded computer
    19" 1280 x 1024 touch screen
    IP65 rated aluminum front bezel
    1 x PCI / PCIEX expansion slot
    Panel / wall mount ready
    Starting at:
    $1,695.00
PC5196
$1,695.00

LCD Panel & Touch Screen :
  The 19 inch (1280x1024) LCD panel is a TFT LCD panel active type digital to digital which connects to the onboard video. The resistive-type touch screen is mounted on the front of the LCD panel with 5-wire flat touch window. The OSD function lets you to adjust system settings from software under the Windows environment instead of adjusting from the membrane keypad below the front panel. While the power is connected, the system will automatically turn on.

Onboard System Board :
  The embedded system board comes with a G41+ICH7 chipset that supports a Core Quad / Dual core processor, 2 x DDR3 memory socket (up to 4GB memory), Dual ethernet Lan, 4 x RS-232 port, 1 x RS-232/422/485 port, & 4 USB ports. The small size of the board allows it to be mounted into the compact-size housing. The working temperature range is from 0°C to 50°C. A CMOS reset button for reset system located on the back of I/O window.

Storage Device :
  The system comes with one 2.5" SATA HDD bay (anti-shock), slim DVD optical drive and user accessable CF slot on the bottom of the panel.

Expansion :
  Available option for 1 x PCI or 1 x PCIe x 4 expansion slot (through riser card).

Power Supply :
  The system comes with 90VAC~264VAC 220W AC power supply. A selectable AT/ATX mode switch located on the back of I/O window. Optional 24VDC (18-36VDC) 200W DC power input is available.

Mounting:
   Panel PC can be panel, wall, rack, stand and arm VESA mounted(optional items).
