Industrial Panel PC comes with Dual-Core embedded computer system, 17-inch LCD panel, resistive type touch screen monitor, wireless LAN with Antenna, IP65 compliant aluminum front panel, Dual Gigabit LAN, built-in hard drive, optical drive and 1 x PCI / PCIEx1 expansion slot.
Loading...
Panel PC PC5196 Front View

PC5196

Panel PC PC5153 Front View

PC5153

PC5173

  • 17-inch 1280 x 1024 industrial LCD panel
  • IP65 rated aluminum front bezel
  • Quad-Core / Dual-Core embedded computer
  • 5-wire resistive-type touch screen monitor
  • wireless ready for 801.11 b/g/n (integrated PIFA antenna)
  • Available for panel, wall, stand and arm, VESA mounting
  • 90/264V power input, 220W power supply
$1,890.00
Availability: In stock
SKU
PC5173
Email
Panel PC - 17 inch 1280x 1024 touch screen monitor, Dual-Core / Quad-core embedded computer, , wireless LAN with antenna, IP65 rated aluminum front bezel & 1 x PCI or PCI-Ex1 slot. panel / wall mount ready.
Material
Heavy duty steel construction
Aluminum front panel
LCD Panel
Size: 17”
Display Resolution: 1280 x 1024
Brightness: 380
Display Color: 16.7M
Viewing Angle (H/V): 160'(H)/ 170'(V)
Contrast Ratio: 1000:1 (typ.)
Pixel Pitch: 0.264 (H) x 0.264 (V)
Backlight MTBF: 50,000 hours
Motherboard
CPU: Intel Core 2 Extreme/Quad/Duo, Celeron processor
Chipset: Intel G41 + Intel ICH7
Memory: Supports two 800/1066 MHz DDR3 DIMM (Max. 4GB)
Driver Bay: 1 x 2.5" SATA/IDE HDD bay with anti-shock, Slim type CD-ROM bay
SSD: CF TypeII
Touch Screen
Resistive Type 5-wire with RS-232 interface
Expansion
1 x PCI slot or 1 x PCIe x 1 slot (Optional riser card)
1 x PCIe Mini card
Connectors
4 x RS232 COM port
1 x RS-232/422/ 485 port
2 x RJ-45 for LAN port
4 x USB 2.0
1 x VGA port
1 x Audio (Line-out, Line-in, MIC-in)
1 x LPT
1 x PS/2 (KB/MS)
1 x Power switch
1 x AT/ATX switch
Power supply
AC Input ATX power supply
220W power supply, 90-264VAC, 50/60Hz input
Max. Output: 3.3A@14A, 5 @16A, 12V@10A, [email protected]
DC Input ATX power supply
200W power supply, 24VDC, 50/60Hz input
Max. output: 3.3A@12A, 5V@12A, [email protected], [email protected]
Color
Silver
Mounting
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm silver
Net/ Gross Weight
8kg/ 12kg

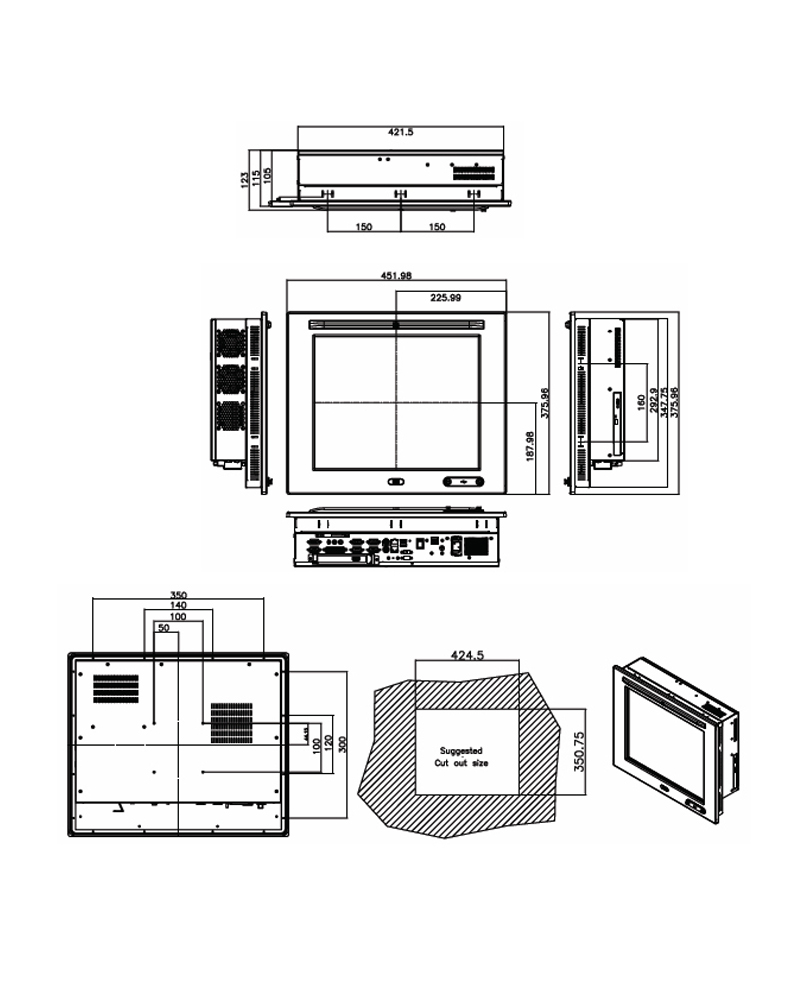

Dimension
452mm x 115mm x 356mm
(W) x (D) x (H)
Certification
FCC-B, CE, UL
Environmental
Environment Temperature
Operating: -10 to 50 degree C
Storage: -20 to 60 degrees C
Relative Humidity: 5~90%, non-condensing
Vibration: 5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peak
Shock: 10G acceleration part to part(11ms duration)

PC 5173:
17" LCD panel w/ resistive-type touch screen, Dual-Core 1.8GHz, 1GB memory, 160GB HD, wireless LAN, silver color

Price starts from: $1,890.00


Document
Description
Download Link
file iconPC_5173-data.pdf
Data Sheet
file iconPC_5173-dim.pdf
Dimension
file iconPC_5173-um.pdf
User Manual
  • PC5173
    Panel PC Dual Core embedded computer
    17" 1280 x 1024 touch screen
    Wireless LAN with antenna
    IP65 rated aluminum front bezel
    1 x PCI or PCIex1 slot
    Panel / wall mount ready
    Starting at:
    $1,890.00
PC5173
$1,890.00

LCD Panel and Touch Screen:
  The PC5173 is a wirelss industrial grade Panel PC integrated 17-inch (1280 x 1024) LCD display with a resistive type touch screen that has a IP65 rated aluminum front bezel. The resistive-type touch screen is mounted on the front of the 17" LCD panel with the 5-wire conected to an internal embedded system by an RS-232 interface port.

Onboard System Board:
  The internal embedded system board supported socket-775 type processor (Quad core or Dual core) up to 1333 FSB, one IP65 security front USB port and Dual LAN. A PIFA type antenna is mounted around the fornt bezel and one wireless 802.11 PCIe mini card was preinstalled. IT's ready for 802.11 b/g/n performance which supporting up to 300mbps data transfer rates. It supports DDR3 DIMM memory socket for max. 4GB, 4 x RS-232 ports, 2.5" SATA HD, CF type slot and slim tyope optical drive (optional item). The working temperature range is from -10°C to 50 °C.

Input/Output Connectors :
 The system comes with 4 x RS-232/USB 2.0 ports, 1 x RS232/422/485 (COM1), 1 x Audio (Mic-in/ Line-out), 2 x RJ-45 for Ethernet and 1 x VGA port.

Expansion:
 The panel PC comes with either one PCI slot or one PCIe x 1 slot (Optional riser card).

Power Supply:
 The power supply comes with an AC/DC input ATX power supply, 90VAC~264VAC, 50/60Hz, 220 W power supply. Optional: 24VDC 200W power supply.

Mounting:
 Panel, wall, stand, and arm, and VESA mounted (100mm x 100mm). Color: silver.
