Panel PC comes with Dual Core1.8GHz industrial embedded system, 17-inch 1280 x 1024 LCD panel, resistive type touch screen monitor, IP65 rated aluminum front panel, Dual LAN, 2.5-inch SATA HD, slim DVD & 1 x PCI expansion slot.
Loading...
Panel PC PC8120 Front View

PC8120

Panel PC PC5192 Front View

PC5192

PC5172

  • 17 1280 x 1024 LCD panel
  • Resistive type touch screen monitor (RS-232 port)
  • NEMA4 / IP65 front aluminum bezel
  • Dual Core embedded industrial computer
  • On-board Video/Dual Gigabit LAN/HD Audio
  • 2.5-ich SATA HD / slim DVD
  • Wall or panel mount ready
  • One PCI expansion slot
$2,365.00
Availability: In stock
SKU
PC5172
Email
Panel PC - 17 inch 1280 x 1024 touch screen monitor, Dual-Core embedded computer, IP65 rated aluminum front bezel & 1 x PCI expansion slot. Panel / wall mount ready.
Front Panel
Material Aluminum Front Panel with Steel Chassis
Front Panel NEMA 4 or IP65-rated
White Pantone 413C Color
LCD Panel
Size: 17-inch Sunlight Readable
Resolution: 1280 x 1024
Luminance: 300
Contrast ratio: 800:1
Viewing Angle(H-V): 160°/160°
Colors: 65G (36 bits)
LCD Panel MTBF: 50,000 hrs
Main System
CPU: Socket 775 Core 2 Duo, Dual core 533/800/1066MHz FSB
Chipset: Intel 945G + ICH7, AMI BIOS
2 x DDR2 memory socket, 4GB memory (max)
1 x Compact Flash Type 2 socket
1 x 2.5" internal SATS HD drive with anti-shock
1 x slim-type Optical drive, (CD-ROM/DVD RW)
2 x broadcom bcm5787M Gigabit LAN with ASF2.0 remote control
1 x HD Audio Realtek ALC883
Touch Screen
5-wire type resistive-type touch screen
3 gram activation pressure
Light transmission 75% typical
Chemical / Solvent / Abrasion resistant
RS-232 interface
Expansion Slot
1 x PCI-32 half-size expansion slot
1 x PCI-e mini card
System Fan
2 x 40mm ball bearing cooling fan
I/O Ports
4 x RS-232 ports, 1 x RS-232/422/485 port
1x parallel port
2 x PS/2 Ports (Keyboard & mouse)
1 x D-sub 15-pin VGA ports
4 x USB ports
2 x RJ45 GbE ports
1 x MIC, 1 x Line-in, 1 x speaker port
1 x compact Flash slot
Power supply
220W ATX power 90~240VAC, 50/60Hz auto switch power supply
Output (max): 3.3V@ 14A, 5V@16A, 12V@10A, [email protected]
Mounting
Panel/wall mount ready, Optional for rack mount (19" rack cabinet)
Environmental
Operating/Storage temperature: 0°C to 50°C / -20°C to 60°C
Operating Humidity: 5% to 95%, @ 60°C non-condensing
Vibration: 5 - 17Hz, 0.1" peak-to-peak displacement
17-640Hz, 1.5G acceleration peak-to-peak
Shock: 10G acceleration peak-to-peak (11ms)
Net Weight
20 lbs
Dimension
452mm(W) x 356mm(H) x 115mm(D)
Safety
CE, FCC

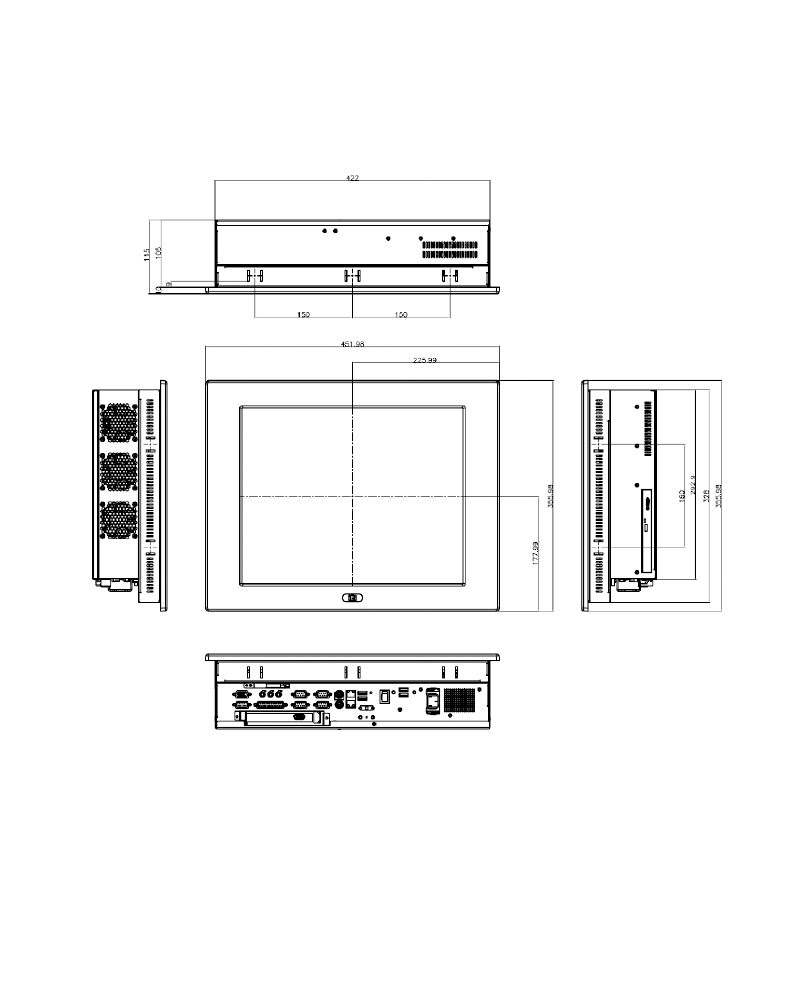

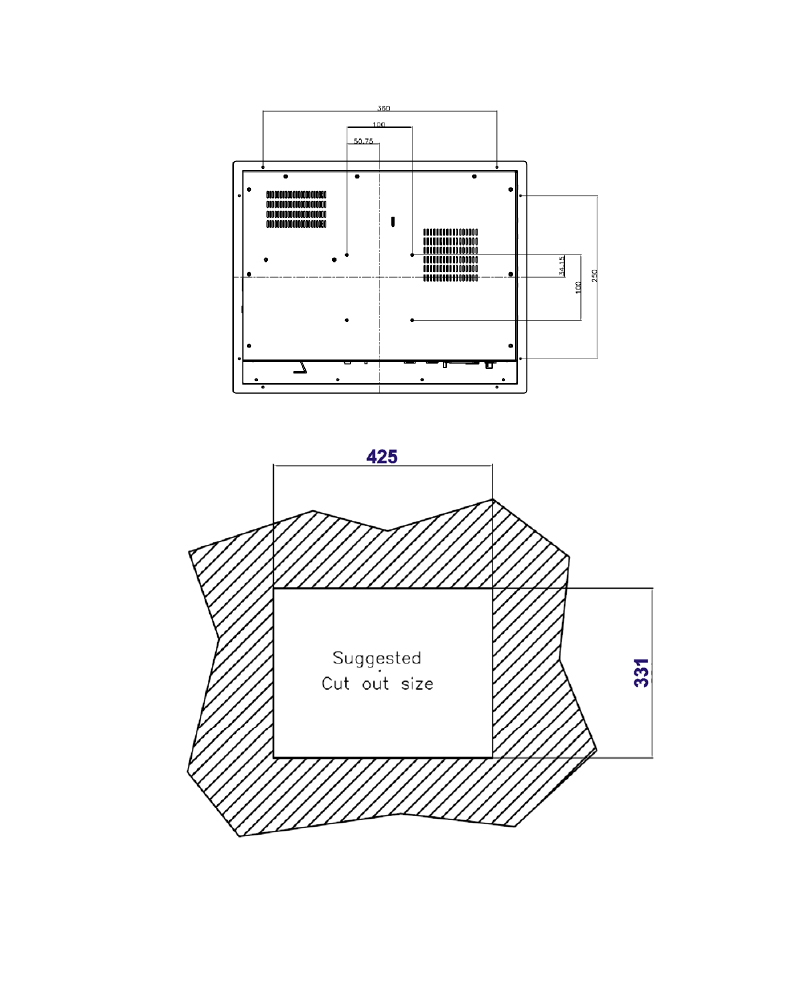

PC5172-dim-1.jpg PC5172-dim-2.jpg

PC 5172:
Panel PC 5172, 17" LCD panel with resistive-type touch screen, Dual-Core 1.8GHz, 1GB memory, 250GB HD, slim DVD, beige color
Price starts from: $1,595.00


Document
Description
Download Link
file iconPC_5172-data.pdf
Data Sheet
file iconPC_5172-dim.pdf
Dimension
file iconPC_5172-inst.pdf
Installation Guide
file iconPC_5172-um.pdf
User Manual
  • PC5172
    Panel PC Dual Core embedded computer
    17-inch 1280 x 1024 touch screen
    IP65 rated aluminum front bezel
    1 x PCI expansion slot
    Panel / wall mount ready
    Starting at:
    $2,365.00
PC5172
$2,365.00

LCD Panel and Touch Screen:
  The 17" 1280x1024 LCD panel is an active type digital to digital which connects to the onboard video. It comes with a standard 15-pin VGA connector on the back of the panel pc for the external display. The resistive type touch screen is mounted on the front of the LCD panel and uses a 5-wire connection to the on-board COM port (standard on COM-3). The touch screen provides protection for the LCD panel and is sealed around the front panel housing to prevent water and dust (NEMA 4/12 rated) from entering.

Onboard System Board:
  The embedded system board (Intel 945G chip-set, Socket 775, Dual Core 1.8GHz, up to 2.5GHz) comes with the features of the standard motherboard and the additional function for industrial application. It accepts DDR2 667/800 memory (2 x memory sockets up to 4.0GB), 5 RS-232 ports (1 for RS-232/422/485) and onboard Dual Gigabyte LAN/ HD Audio. The small size of board allows it to be mounted into the slim-type panel pc housing.

Storage Device:
 The system comes standard 2.5" SATA  internal SATA HD with anti-shock device, slim-type DVD (can be upgrade to DVD-RW) and slim-type1.44MB floppy drive (internal). It also provided Compact-flash type-II socket for the Windows embedded computer application.

Expansion:
 We provide 1 x PCI-32 expansion slot and 1 x PCIe mini card for your unique hardware applications. The riser board is built in the system and provides 1 PCI-32 expansion slot on the back of the panel pc.

Power Supply:
 The 180W 110/220VAC 50/60Hz auto-switch ATX power module is integrated into the panel pc.

Mounting:
 Panel pc can be wall mounted or panel mounted (mounting kits come with panel pc). It also comes with standard VESA mounting holes on the back of the panel pc. Option for 19" rack mount kit is available.
