Panel PC comes with Quad-ore / Dual-Core industrial embedded computer, 15-inch 1024x 768 LCD panel, resistive type touch screen monitor, IP65 compliant aluminum front panel, Dual Gigabit LAN, 2.5" SATA HD, slim DVD and 1 x PCI or PICEx4 expansion slot (optional item).
Loading...
Panel PC PC5192 Front View

PC5192

Panel PC PC5176 Front View

PC5176

PC5156

  • 15-inch 1024 x 768 industrial LCD Panel
  • 5-wire resistive-type touch screen monitor
  • IP65 rated Alimuinum front bezel
  • Quad-Core / Dual-Core industrial embedded computer
  • Selectable AT/ATX power mode
  • 1 x PCIEx4 or PCI expansion slot
  • Available for Panel / wall / Stand mounting type
$1,465.00
Availability: In stock
SKU
PC5156
Email
Panel PC - 15 inch 1024 x 768 touch screen monitor, Quad-Core / Dual-Core embedded computer, IP65 rated aluminum front bezel & 1 x PCI / PCI-Ex4 slot. panel / wall mount ready.

MaterialHeavy-duty steel

LCD Panel
Size: 15 " TFT LCD
Max. Resolution: 1024(W) x768(H)
Brightness: 350
Contrast Ratio 700:1
Viewing Angle (H/V):125'(H) / 140'(V)
Pixel Pitch (mm): 0.297(H) x 0.297(V)
Backlight MTBF: 50000 hrs
Colors: 16.2M
Main System
CPU: LGA 775 Intel Core 2 Extreme/ Quad/ Duo, Celeron with a 1333/ 1066/ 800 Hz FSB support
RAM: Supports two 800/1066M Hz DDRlll DIMM (4GB Max.)
SSD: CF type ll
Chipset:Intel G41 + Intel ICH7
HDD Driver Bay: 1 x 2.5-inch SATA HDD bay with anti-shock
Extension Slot: Either 1 x PCI slot or 1 x PCIe x 1 slot (optional riser card), 1 x PCIe mini card
LED function: 1 x Power on/off LED on front panel

TouchScreen
Resistive type 5-wire with RS-232 interface
Connectors
4 x RS232 COM port
1 x RS-232/422/485 port
2 x RJ-45 for LAN port
4 x USB 2.0
1 x VGA 2.0
1 x Audio (Line-in, Line-out, MIC-in)
1 x LPT
1 x PS/2 (KB/MS)
1 x Power switch
1 x AT/ ATX switch

Power supply
AC input ATX power supply, 220W power adapter
Input: 90 VAC~264VAC, 50/60 Hz
Output (max.): 3.3A @ 14A, 5V@ 12A, 12V @ 10A, -12V @ 0.8ADC input ATX power supply, 200W power adapter
Input: 24 VDC (18~36VDC)
Output (max.): 3.3A @ 12A, 5V @ 12A, 12V @ 15.4A, -12A@ 0.5A

Mounting
Panel, wall, rack, stand and arm VESA 100mm x 100mm Silver (Pantone 8001C)

Color
Black

Environmental
Environment Temperature Operating: -10 to 50 degree C
Storage: -20 to 60 degrees C
Vibration: 5~17 Hz, 0.1 double amplitude displacement 17~640 Hz, 1.5 G acceleration peak to peak
Shock: 10G acceleration part to part (11ms)

Net Weight
7 kg / 11 kg

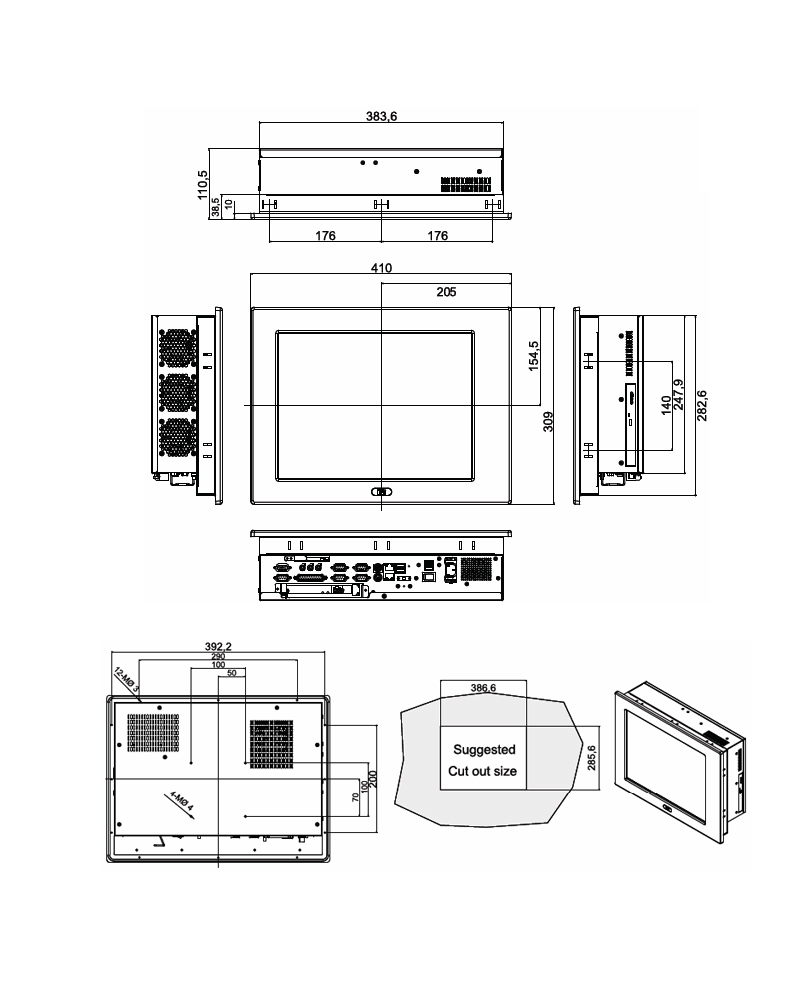

Dimension
410mm(W) x 309mm(D) x 110.5mm(H)

PC 5156: 15.1" LCD panel with resistive-type touch screen, Dual Core 2.2GHz / Quad core 2.66GHz embedded system, 1GB DDR3 memory, 120GB SATA-3 HD

price start from: $1465.00

Document
Description
Download Link
file iconPC_5156-data.pdf
Data Sheet
file iconPC_5156-dim.pdf
Dimension
  • PC5156
    Panel PC Quad Core embedded computer
    15" 1024 x 768 touch screen
    IP65 rated aluminum front bezel
    1 x PCI / PCIex4 slot
    Panel / wall mount ready
    Starting at:
    $1,465.00
PC5156
$1,465.00

LCD Panel and Touch Screen:
  The 15 inch (1024x768) LCD panel is an LCD panel active type digital to digital which connects to the on board video. The resistive-type touch screen is mounted on the front of the LCD panel with a 5-wire flat touch window. The OSD function lets you to adjust system settings from software under the Windows environment instead of adjusting from the membrane keypad below the front panel. While the power is connected, the system will automatically turn on.

On Board System Board:
  The embedded system board comes with G41+ICH7 chipset that supports Core Quad / Dual core processor, 2 x DDR3 memory socket up to 4GB memory, Dual ethernet Lan, 4 x RS-232 port, 1 x RS-232/422/485 port, & 4 USB ports. The small size of board allows it to be mounted into the compact-size panel pc's housing. The working temperature range is from 0°C to 50°C. A CMOS reset button for reset system located on the back of I/O window.

Storage Device :
The system comes with one 2.5" SATA HDD bay (anti-shock), slim DVD optical drive and user accessable CF slot on the bottom of the panel.

Expansion:
Available option for 1 x PCI or 1 x PCIe x 4 expansion slot (through riser card).

Power Supply:
The system comes with 90VAC~264VAC 220W AC power supply. A selectable AT/ATX mode switch located on the back of I/O window. Optional: 24VDC (18-36VDC) 200W DC power input.

Mounting:
Panel PC can be panel, wall, rack, stand and arm VESA mounted (optional items).
