NOTICE: PRODUCT EOL. VISIT FANLESS INDUSTRIAL PANEL PCS - UL CERTIFIED FOR RELATED PRODUCTS.

Panel PC with a 24 inch 1920 x 1080 Full HD industrial LCD panel, Projected Capacitive multi-touch screen, IP65 rated flat front bezel, and a -10°C to 50°C wide range working temperature. The system is powered by the Intel Celeron N2930 Quad-Core 1.83GHz CPU and supports a 4GB memory (up to 8GB) and a 64GB SSD.
Loading...
PC5015

PC5015

10.1

PC9101

PC5024

  • IP65 rated flat front bezel
  • 24 inch 1920 x 1080 Full HD TFT LCD monitor
  • Projected Capacitive multi-touch screen monitor
  • Intel Celeron N2930 Quad Core 1.83GHz embedded computer
  • Anti-shining AR coating in front
  • Ultra slim 2.15" in thickness
  • -10°C to 50°C wide range working temperature
  • External 110/220VAC power adapter
Availability: In stock
SKU
PC5024
Email
Panel PC with 24 inch 1920 x 1080 full HD multi-touch screen and Celeron N2930 Quad Core 1.83GHz CPU with fanless cooling system, has an IP65 rated ultra slim flat front bezel, built-in 802.11 wireless LAN and -10 to 50 degree C wide range working temperature.
Material
IP65 rated rugged enclosure
Anti-shining AR coating in front
Ultra slim 2.15" in thickness
LCD panel
Size: 24 inch
Max. Resolution: 1920 x 1080
Brightness: 250 nits
Contrast Ratio: 5000:1
Viewing Angel (H/V): 178° x 178°
Active Area(mm): 531.36(H) x 289.89(V)
Pixel Pitch (mm): 0.27675(H) x 0.27675(V)
Color: 16.7M
Option for 1000 nits high brightness panel
System
CPU: Celeron N2930 Quad Core 1.83GHz CPU
Memory: 4GB DDR3 SO-DIMM, Max. 8GB
Storage: 64GB mSATA SSD / 500GB SATAII HDD bay
Touch screen
Projected Capacitive multi-touch screen monitor
Connectors
4 x COM, 3 for RS-232, 1 for RS-232/422/485
2 x USB, 1 for USB 2.0, 1 for USB 3.0
2 x Gigabit Ethernet ports (RJ-45)
1 x AC input
1 x HDMI output
Wireless Communication
Built-in 802.11 b/g/n/ac + Bluetooth 4.0
Protection
Front IP65
Power supply
AC power adapter
Mounting (Option)
VESA or pipe mount
Color
Black

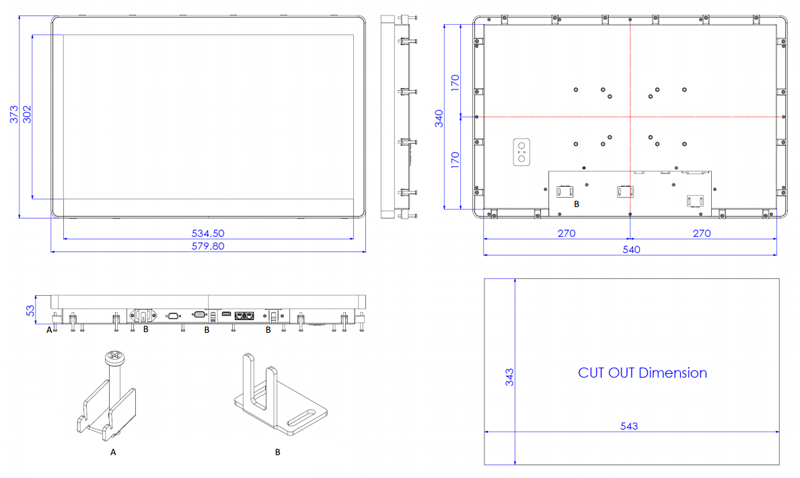

Dimension
22.83”(W) x 2.14”(D) x 14.69”(H)
Environmental
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Relative Humidity: 10% to 95%, non-condensing
Vibration: 5Hz~500Hz/ 1Grms/ 3 Axis
Shock: 15G, 11ms duration

PC5024:
24 inch 1920 x 1080 full HD industrial panel PC with IP65 rated flat front bezel, Intel Celeron N2930 Quad-Core 1.83GHz embedded computer, 4GB DDR3 memory, 64GB mSATA SDD or 500GB SATAII HDD, and Projected Capacitive multi-touch screen monitor.

NOTICE: PRODUCT EOL. VISIT FANLESS INDUSTRIAL PANEL PCS - UL CERTIFIED FOR RELATED PRODUCTS.

Document
Description
Download Link
file iconPC5024-SP.pdf
Spec Sheet
  • PC5024
    24 inch 1920 x 1080 Full HD TFT LCD monitor
    Projected Capacitive multi-touch screen monitor
    Intel Celeron N2930 Quad Core 1.83GHz CPU
    Anti-shining AR coating in front
    Ultra slim 2.15" in thickness
    -10°C to 50°C wide range working temperature
    Built-in 802.11 b/g/n/ac + Bluetooth 4.0
    External 110/220VAC power adapter
    IP65 rated flat front bezel
    Starting at:
PC5024

24-inch multi-touch Panel PC

PRODUCT DESCRIPTION
PC5024 features a 24” ultra-slim multi-touch Panel PC with projected capacitive touch screen, Celeron N2930 1.83GHz, IP65 rated front panel, configuration with 4GB DDR3 memory, two Ethernet, two USB, four COM, HDMI output, and AC power adapter. PC5024 is powered by a high-performance Intel Celeron N2930 Quad-Core 1.83GHz processor with 4GB DDR3 SO-DIMM memory sockets scalable up to 8GB and 64GB mSATA SSD or 500GB SATAII HDD storage bay, ensuring adequate performance for end-users while consuming small amounts of power. Furthermore, its fanless design ensures silent operating, improved reliability, and reduced maintenance. With its rich I/O ports including a dual Ethernet, four COM ports, one USB 2.0, one USB 3.0, HDMI output, AC power input, and built-in 802.11 b/g/n/ac wireless LAN along with a Bluetooth 4.0, this new solution makes it ideal for applications that are in need of peripheral connectivity, including information management, entertainment management systems, point of sale terminals, automation, and a variety of commercial and industrial applications. The panel PC features an IP65 rated rugged enclosure offering waterproof and dustproof. The IP65 rated indicates the ability to protect against the ingress of dust and protection against the ingress of water projected by low-pressure water jets from any direction. Along with the IP65 rated flat front bezel is the anti-shining AR coating. These standards make the Panel PC ideal to work in harsh environments in both commercial and industrial use. The panel PC is equipped with a 24” 1920 x 1080 full HD display resolution on a projected capacitive multi-touch screen. The sturdy screen offers high performing image quality with 250-nits brightness (options for 1000nits high brightness), 1000:1 contrast ratio, and 16.7 million colors. The ultra-slim 2.15” in thickness panel offers easy installation using the VESA or pipe mount. The range of thermal conditions is of wide range, it is able to operate in a temperature from 14°F to 122°F and stored in -22°F to 158°F.
