NOTICE: PRODUCT EOL. REPLACEMENT PRODUCT IS PC9215 21.5" FHD FANLESS INDUSTRIAL PANEL PC SUPPORTING 1920 X 1080 RESOLUTION, INTEL PROCESSORS, RESISTIVE TOUCH SCREEN, AND WIDE RANGE 9 TO 36V DC POWER INPUT.

Intelligent display unit comes with 21.5 inch 1920 x 1080 full HD projected capacitive multi-touch screen and N2930 Quad Core 1.83GHz fanless CPU,
Loading...

PC5022

  • 21.5 inch 1920 x 1080 full HD TFT LCD monitor
  • Projected capacitive multi-touch screen monitor
  • IP65 rated flat front bezel
  • Anti-shining AR coating in front
  • Ultra slim 2.14" in thickness
  • Celeron N2930 Quad Core 1.83GHz embedded computer
  • -10ºC to 50ºC wide range working temperature
  • AC power adapter
Availability: In stock
SKU
PC5022
Email
Panel PC with 21.5 inch 1920 x 1080 full HD multi-touch screen and Celeron N2930 Quad Core 1.83GHz CPU with fanless cooling system, has an IP65 rated ultra slim flat front bezel, built-in 802.11 wireless LAN and -10 to 50 degree C wide range working temperature.
Material
IP65 rated rugged enclosure
Anti-shining AR coating in front
Ultra slim 2.14" in thickness
LCD panel
Size: 21.5”
Max. Resolution: 1920 x 1080
Brightness: 250nits
Contrast Ratio: 1000:1
Active Area(mm): 476.64(H) x 268.11(V)
Pixel Pitch (mm): 0.248(H) x 0.248(V)
Color: 16.7M, 8 bits + FRC
Option for 1000 nits high brightness panel
System
CPU: Celeron N2930 Quad Core 1.83GHz CPU
Memory: 4GB DDR3 SO-DIMM, Max. 8GB
Storage: 64GB mSATA SSD / 500GB SATAII HDD bay
Touch screen
Projected capacitive multi-touch screen monitor
Connectors
4 x COM, 3 for RS-232, 1 for RS-232/422/485
2 x USB, 1 for USB 2.0, 1 for USB 3.0
2 x Gigabit Ethernet ports (RJ-45)
1 x AC input
1 x HDMI output
Wireless Communication
Built-in 802.11 b/g/n/ac + Bluetooth 4.0
Protection
Front IP65
Power supply
AC power adapter
Consumption: 70W typical, normal operation
Mounting (Option)
VESA or pipe mount
Color
Black

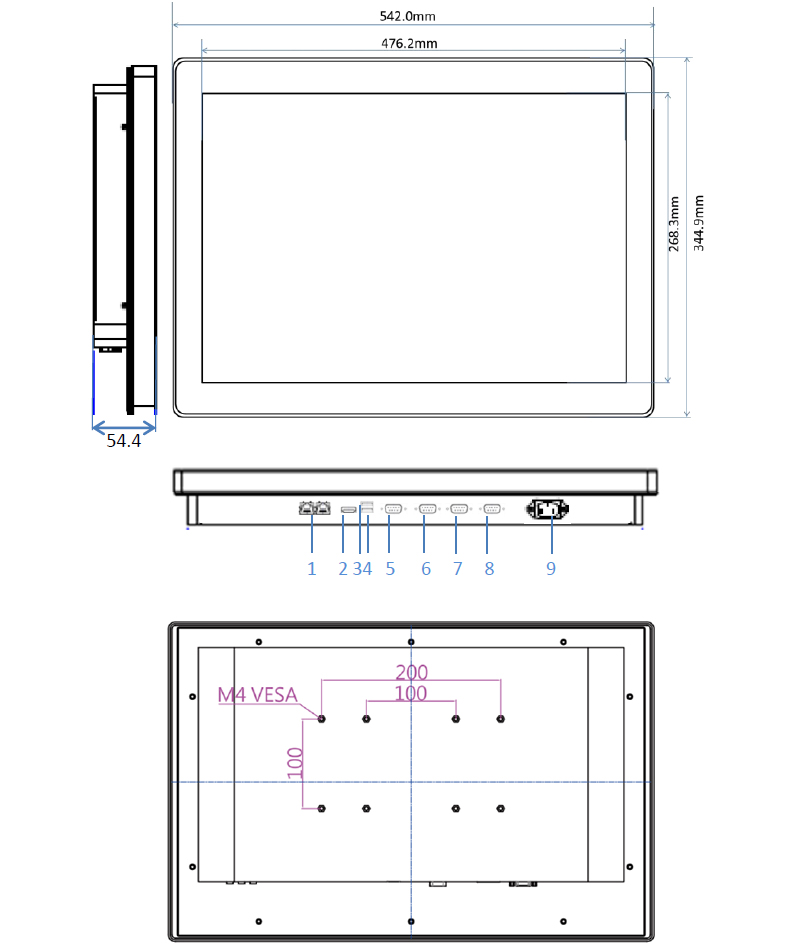

Dimension
21.34”(W) x 2.14"(D) x 13.58”(H)
Environmental
Operating: -10°C to 50°C (14°F to 122°F)
Storage: -30°C to 70°C (-22°F to 158°F)
Relative humidity: 10% to 95%, non-condensing
Vibration: 5Hz~500Hz/ 1Grms/ 3 Axis
Shock: 15G, 11ms duration

PC5022:
21.5 inch 1920 x 1080 full HD resolutions industrial Panel PC with IP65 rated flat front bezel, Celeron N2930 Quad Core 1.83GHz embedded computer embedded computer, 4GB DDR3 memory, 64GB mSATA SDD or 500GB SATAII HDD, and projected capacitive multi-touch screen monitor.

NOTICE: PRODUCT EOL. REPLACEMENT PRODUCT IS PC9215 21.5" FHD FANLESS INDUSTRIAL PANEL PC SUPPORTING 1920 X 1080 RESOLUTION, INTEL PROCESSORS, RESISTIVE TOUCH SCREEN, AND WIDE RANGE 9 TO 36V DC POWER INPUT.

Document
Description
Download Link
file iconPC5022-SP.pdf
Spec Sheet
  • PC5022
    Panel PC
    Intel Celeron N2930 1.83GHz Quad Core CPU
    4GB DDR3 memory up to 8GB
    fanless cooling system
    21.5" 1920 x 1080P full HD display
    250-nits high brightness display
    projective capacitive Multi-touch screen
    1 x 2.5" SATA hard drive
    Built-in 802.11a/b/g/n/ac wireless LAN and bluetooth 4.0 moudule
    IP65 rated flat front bezel
    External AC power adapter
    75mm VESA mount ready
    Starting at:
PC5022

PRODUCT DESCRIPTION
Intelligent display unit with Full HD display and multi-touch screen and HDMI for the multi media applications. The ultra slim PC5022 system provides reliable and user-friendly applications, It includes a 21.5” inch Projected capacitive multi-touch screen display. The fanless system is powered by an efficient N2930 Quad Core 1.83GHz CPU (7.5W TDP) in 22nm technology to provide advanced graphics processing capability via the new Intel® HD Graphics. The panel PC is protected with a rugged IP65 front bezel. This level of protection allows the system to withstand detrimental chemicals, liquids, dust, and other harmful elements in the typical industrial environment. With an advanced thermal design, the PC5022 tolerates a wide range of temperatures ranging from -10°C to 50°C (14°F to 122°F). The industrial grade panel PC offers a projected capacitive multi-touch screen monitor with a full HD display resolution of 1920 x 1080. The panel PC is designed to reflect light out of the screen and offers better viewing because it is equipped with an anti-shining AR coating for reducing glare in environments with excessive ambient light. The slim and lightweight design is ideal for factory automation, building automation, kiosks, and many other industrial services. The PC5022 offers rich I/O interfaces. It comes with a built-in wireless communication 802.11 b/g/n/ac and Bluetooth 4.0 known for a larger range of network connections. For larger viewing purposes, the panel PC includes one HDMI output, four COM ports, one USB 2.0, one USB 3.0, and one AC input. The system includes a 64 GB mSATA or a 500GB SATAII HDD. The storage device treats compressed and uncompressed files the same for more efficient and faster speeds. It also includes two Gigabit Ethernet ports. The system board accepts a 4GB DDR3 memory SODIMM socket and a maximum of 8 GB to deliver superior performance and high-speed data. The SODIMM offers speed, reliability, functionality, and usability. Mounting options include VESA of pipe mount.
