Panel PC comes with a 17 inch full IP67/69K rated anti-corrosion stainless steel touch panel, Celeron N2930 fanless embedded CPU, 5-wire resistive type touch screen, and extended working temperature of -20°C to 60°C. Option for Core i5 5200U / Core i7 6600U CPU, projected capacitive type screen, high brightness display, optical bonding, and DC power input.
Loading...
15

PCH8150

21.5

PCH8215

PCH8170

  • Full IP67/69K rated rugged stainless steel enclosure
  • 17 inch 1280 x 1024 LED backlight LCD monitor
  • 5-wire Resistive type touch screen
  • Intel Celeron N2930 1.83GHz Processor
  • Option for Core i5 5200U / Core i7 6600U
  • 2 x USB + 1 x LAN + 1 x COM port
  • 110/240VAC power input, option for DC power input
  • Extended working temperature -20°C to 60°C
$1,825.00
Availability: In stock
SKU
PCH8170
Email
17" full IP67/69K stainless steel panel PC with Celeron N2930 1.83GHz processor, resistive type touch screen, and extended working temperature of -20°C to 60°C
Material
SUS316 stainless steel
IP67/69K rated anti-corrosion stainless steel
LCD panel
Size: 17”
Max Resolution: 1280 x 1024
Brightness (cd/m²): 400
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): -85~85 (H); -80~80 (V)
Colors: 16.2M, 6 bits + FRC
Option for high brightness / optical bonding
Touch screen
5-wire resistive type touch screen monitor
Option for projected capacitive touch screen
System
CPU: Celeron N2930 1.83GHz (std)
Option for Core i5 5200 / Core i7 6600
Memory: 1 x 4GB DDR3 SO-DIMM (Max.8GB)
Storage: 1 x 128GB SSD (Max.250GB)
Ethernet: 1 x Gigabit LAN
Option for WiFi and Bluetooth module
Connectors - C16 / IP Rated
Serial Ports: 1 x RS232 (IP67)
USB Ports: 2 x USB (IP67)
Ethernet: 1 x RJ45 GbE LAN (IP67)
Power: 1 x AC Input (IP66)
IP66 rated 6ft extended cables included for each I/O
Power Supply
110/240VAC power input
Power Consumption: 30W (typ)
Option for 9 to 36V DC power input
Weight
15.43 lb / 7 kg

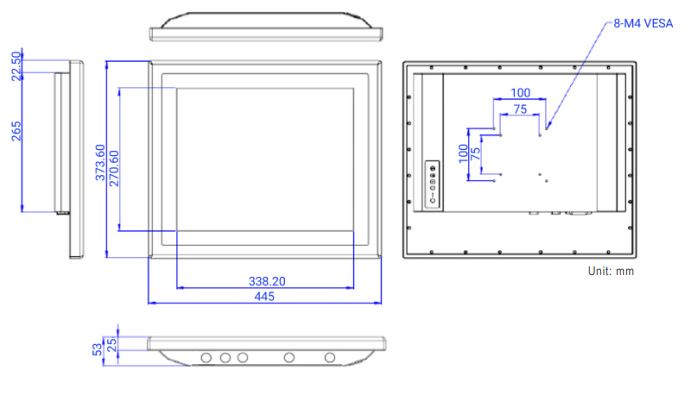

Dimension
25.98”(W) x 9.44”(D) x 21.65”(H)
Mounting
VESA mount (75mm / 100mm)
Option for panel mount with gasket
Environmental
Operating Temperature: -20°C to 60°C
Relative Humidity: 10% to 95%, non-condensing
IP Protection
Full-IP67/69K rated protection

PCH8170:
17 inch 1280 x 1024 industrial LCD, full IP67/69K rated stainless steel enclosure, Celeron N2930 1.83GHz CPU, resistive type touch screen, 2 x USB + 1 x LAN + 1 x COM, 6ft cables for each I/O, 110/240VAC power input.
Lead Time: 6 to 8 weeks

Document
Description
Download Link
file iconPCH8170-SP(V1-2).pdf
Spec Sheet
file iconPCH8XXX-UM(V1-2).pdf
User Manual
file iconPCH8170-TEST REPORT.pdf
MIL-STD-810G Test Report
file iconPCH8170-PM-DIM.pdf
Panel Mount Dimension
  • PCH8170
    Panel PC - Fanless Embedded Computer
    Full IP67/69K rated stainless steel enclosure
    Intel Celeron N2930 1.83GHz CPU
    Option for Core i5 5200 / Core i7 6600U CPU
    4GB memory, up to 8GB
    1 x 128GB SSD, up to 250GB
    17 inch 1280 x 1024 400-nits LCD panel, option for high brightness
    Resistive type touch screen, option for Capacitive type touch screen
    AC power input, option for DC power input
    VESA mount ready
    Starting at:
    $1,825.00
PCH8170
$1,825.00

PRODUCT DESCRIPTION
Featuring a waterproof fully sealed stainless steel enclosed panel PC, the PCH8170 delivers a backbone of endurance and reliability. The fully sealed stainless steel device allows the entire material to be washed down with ease. The device is equipped with a fully IP66/69K rated protection. It can resist the most brutal of conditions normally seen in chemical and food plants and food factories. Its stainless steel body allows the system to withstand corrosion, damaging chemicals, mud, dust, heavy moisture that can potentially do some serious harm to a piece of equipment. Using stainless steel panel PC’s like the PCH8170 has a full wash down ability design. Stainless steel in its nature is easy to clean because it doesn’t absorb dust and prevents fingerprints. Compared to most other metals, using stainless steel will allow the panel PC to last longer because of the stain and rustproof material. It is also nonporous, eliminating any germs and bacteria that would subside on the device. The PCH8170 offers a sleek and shiny finish. This design allows the system applicable for long term operations while it delivers reliability and stability. The fanless embedded system features a Celeron Bay Trail-M N2930 1.83GHz Quad-Core CPU specifically optimized for improved performance and energy efficiency. The panel PC includes a 17-inch 1280 x 1024 5-wire resistive type touch screen, one of the most popular uses in touch screen technology. This type of resistive touch features a durable design that allows for activation with any object, operates on low power for power efficiency, and invulnerable towards liquids, oils, dust, etc. The PCH8170 features rich I/O interfaces. The system includes a total of 2 x USB, 1 x LAN, 1 x COM, and 1 x Power input. M12 industrial connectors are all fully sealed to ensure protection from washdowns and other surface contaminants. The robust industrial-grade device operates at a wide range of working temperatures ranging from 0°C to 45°C (32°F to 113°F). Standard VESA mounting is available in the back for industrial applications in the field, office, kitchen, or factories.
