Stainless steel panel PC with a 15 inch 1024 x 768 LED backlight LCD monitor and full IP67/69K rated anti-corrosion stainless enclosure. The PC is powered by the Celeron N2930 1.83GHz CPU and features a 5-wire resistive type touchscreen and extended working temperatures from -10°C to 55°C. Option for Core i5 5200U/Core i7 6600U CPU, Capacitive type touch screen, high brightness display, optical bonding, and DC power input.
Loading...
17

PCH8170

PCH8150

  • Full IP67/69K rated rugged stainless steel enclosure
  • 15 inch 1024 x 768 LED backlight LCD monitor
  • Option for high brightness display & optical bonding
  • 5-wire Resistive type touch screen, option for Capacitive touch screen
  • Intel Celeron N2930 1.83GHz CPU, option for Intel Core i CPU
  • Extended working temperature of -10°C to 55°C
  • 1 x LAN, 2 x USB, 1 x COM, 1 x AC Input (IP Rated Connectors)
  • VESA (100 x 100mm) mounting holes, option for panel mount w/ gasket
  • 110/240V AC power input, option for 9 to 36V DC power input
$1,792.00
Availability: In stock
SKU
PCH8150
Email
15" full IP67/69K stainless steel panel PC with the Celeron N2930 1.83GHz processor, Resistive type touch screen, and extended working temperatures of -10°C to 55°C.
Material
SUS316 stainless steel
IP67/69K rated anti-corrosion stainless steel
LCD panel
Size: 15 inch
Max Resolution: 1024 x 768
Brightness (cd/m²): 250
Contrast Ratio (typ.): 500:1
Viewing Angle (H/V): -70~70 (H); -60~60 (V)
Colors: 16.2M, 6 bits + FRC
Option for high brightness / optical bonding
Touch screen
5-wire Resistive type touch screen monitor
Option for Capacitive type touch screen
System
CPU: Celeron N2930 1.83GHz (std)
Option for Core i5 5200 / Core i7 6600
Memory: 1 x 4GB DDR3 SO-DIMM (Max.8GB)
Storage: 1 x 128GB SSD (Max. 250GB)
Ethernet: 1 x Gigabit LAN
Option for WiFi and Bluetooth module
Connectors - C16 / IP Rated
Serial Ports: 1 x RS232 (IP67)
USB Ports: 2 x USB (IP67)
Ethernet: 1 x RJ45 GbE LAN (IP67)
Power: 1 x AC Input (IP66)
Cables
IP66 rated 6ft extended cables included for each I/O
Power Supply
Power Input: 110/220VAC power input
Power Consumption: 30W (typ)
Option for 9 to 36V DC power input
Weight
16.53 lb / 7.5 kg

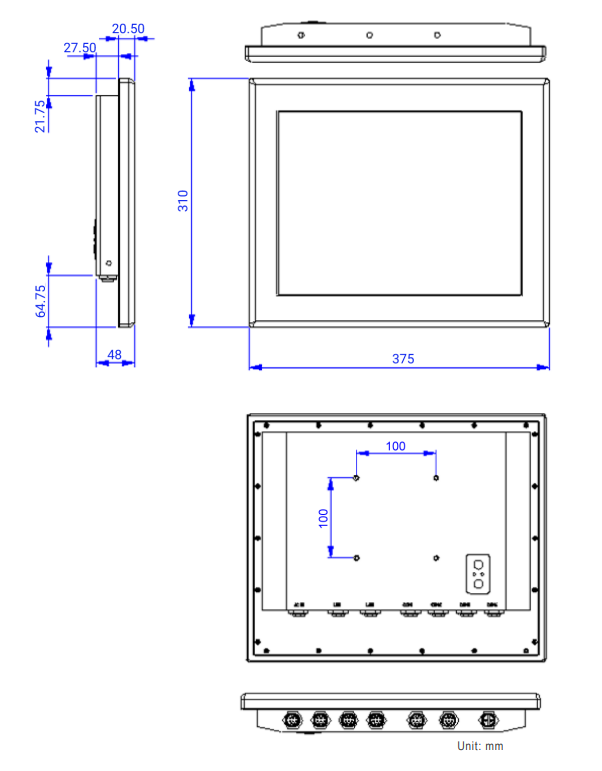

Dimension
16.14”(W) x 2.15”(D) x 12.20”(H)
Mounting
VESA mount (100 x 100mm)
Option for panel mount with gasket
Environmental
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Relative Humidity: 10% to 95%, non-condensing
IP Grade: Full-IP67/69K

PCH8150:
15 inch 1024 x 768 250-nit industrial LCD monitor, Resistive type touch screen, Intel Celeron N2930 1.83GHz CPU, 4GB memory, 128GB SSD, 2 x USB + 1 x LAN + 1 x COM (6 feet cables included for each I/O), VESA mount, 110/240VAC power input, full IP67/69K rated stainless steel enclosure.
Lead Time: 6 to 8 weeks

Document
Description
Download Link
file iconPCH8150-SP.pdf
Spec Sheet
file iconPCH8XXX-UM(V1-2).pdf
User Manual
  • PCH8150
    Panel PC - Fanless Embedded Computer
    Full IP67/69K rated rugged stainless steel enclosure
    15 inch 1024 x 768 LED backlight LCD monitor
    Option for high brightness display & optical bonding
    5-wire Resistive type touch screen, option for Capacitive touch screen
    Intel Bay Trail Celeron N2930 1.83GHz processor
    Option for Intel Core i5-5200 / Core i7-6600U CPU
    Option for WiFi & Bluetooth module
    1 x LAN, 2 x USB, 1 x COM, 1 x AC Input (IP Rated Connectors)
    VESA (100 x 100mm) mounting holes, option for panel mount w/ gasket
    110/240V AC power input, option for 9 to 36V DC power input
    Starting at:
    $1,792.00
PCH8150
$1,792.00

PRODUCT DESCRIPTION
Stainless steel panel PC’s are the most ideal for demanding industrial tasks. There are multiple perks of using stainless steel for embedded systems. One of the key factors of this material is that there is no need to worry about hygienic qualities. Stainless steel by its nature is easy to clean because it doesn’t attract much bacteria and viruses to its surface. This material is resistant to corrosion from atmospheric environments and water, thus making this rugged panel PC perfect for long term industrial usage. Because of its invulnerability to heat, chemicals, and corrosion, this model makes an ideal fit for kitchens, food processing plants, hospitals, and industries that have a high demand for low maintenance and easy cleaning materials. PCH8150 provides an advanced CPU, Bay Trail-M Celeron N2930 1.83GHz Quad-Core. This CPU processor is faster than Atoms and single cored processors. Because it is operating as a quad-core, it allows for faster and more productive multitasking applications and dual-core CPUs.The rugged PC includes a 5-wire resistive type touch screen. The five-wire resistive sensor is extremely durable compared to 4 wired touch screens. It features film to conductive glass technology. This allows the screen to operate properly even if the top is damaged or scratched. The 5-wire type touch screen and the stainless steel enclosure serve to be a long-lasting durable piece of machinery. Its rich I/O system consists of 2 x USB, 1 x Gigabit LAN, 1 x RS232, and 1 x 110/220VAC power input. The PC also includes one mini PCIe internal expansion slot. The device operates at temperatures ranging from 0°C to 45°C (32°F to 113°F) and includes a standard VESA mount.
