Military-grade panel PC with a 10.4 inch 1024 x 768 industrial LCD monitor, Resistive type touchscreen, dual LAN, one COM port, two USB ports, and the Intel Celeron N2930 1.83GHz CPU. The monitor comes with an IP65 rated front bezel with -10°C to 60°C wide range working temperature and MIL-STD-810G testing standards.
Loading...
19

PCM8019

PCM8010

  • Front IP65 rated rugged enclosure
  • 10.4 inch 1024 x 768 LED backlight monitor
  • 5-wire resistive type touch screen monitor
  • 350-nits high brightness LCD panel, option for 1000-nits
  • Celeron N2930 1.83GHz embedded system
  • 1 x GbE LAN, 1 x COM, 2 x USB 2.0
  • MIL-STD-810G -10°C to 60°C wide range working temperature
  • Wide range 9~36V DC power input
$2,660.00
Availability: In stock
SKU
PCM8010
Email

10.4" 1024 x 768 military-grade panel PC with resistive type touch screen, Celeron N2930 1.83GHz CPU, IP65 rated front rugged enclosure, and MIL-STD-810G compliance.

Material
IP65 rated front bezel
LCD panel
Size: 10.4 inch
Max. Resolution: 1024 x 768
Brightness (cd/m²): 350, option for 1000-nits
Contrast Ratio (typ.): 1200:1
Viewing Angle (H/V): 176° x 176°
Backlight: LED
Colors: 16.2M
Touch Screen
5-wire resistive type touch screen monitor
Optical Bond (Option)
Optical bonding
System
CPU: Intel Celeron N2930 1.83GHz CPU
Memory Slot: DDR3 SO-DIMM 4GB
Chipset: Fintek F81866
Graphic: Integrated Intel HD Graphics
Ethernet: Intel WG82574L GbE
Audio: Realtek ALC886 HD Audio Codec
Drive Bay
mSATA SSD 64GB, Max. 512GB SSD
Connectors
1 x COM port (RS-232)
2 x USB 2.0 ports
1 x RJ45 GbE LAN
1 x 9~36V DC Input (D38999 connector)
Power supply
Wide range 9~36V DC power input
Power Consumption: 40 watts (typical)
Option for external AC power adapter
Power EMI Filter (Option)
EMI filter
Mounting
VESA (75 x 75mm) mount
Option for panel mount (by request)
Weight
TBD

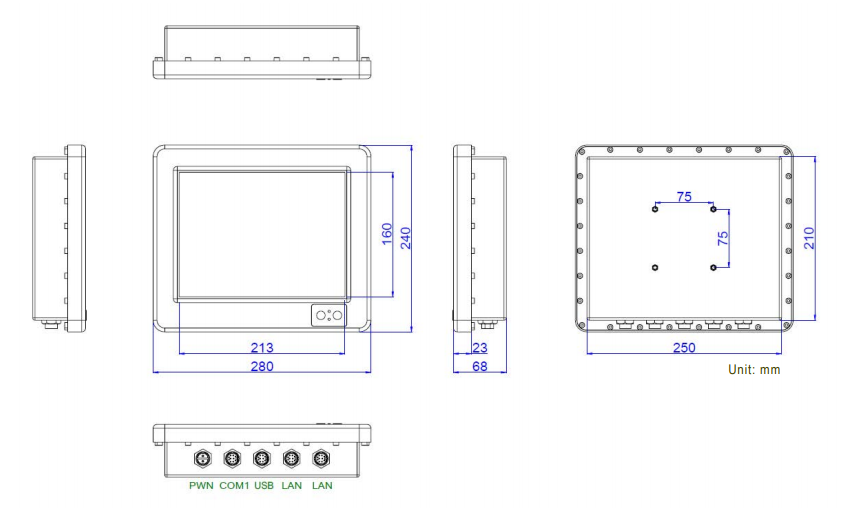

Dimension
11.02"(W) x 9.45"(H) x 2.68"(D)
Environmental
Operating Temperature: -10°C to 60°C (14°F to 140°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Relative Humidity: 10% to 95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6

PCM8010:
10.4 inch 1024 x 768 military-grade panel PC, 5-wire resistive type touch screen, Intel Celeron N2930 1.83GHz CPU, 4GB DDR3 memory, 1 x LAN + 1 x COM + 2 x USB, IP65 rated front bezel, MIL-STD810G compliance, wide range 9~36V DC power input. Option for optical bonding, external AC power adapter, and EMI filter.

Document
Description
Download Link
file iconPCM8010-SP.pdf
Spec Sheet
file iconPCM8010-UM(V1-2).pdf
User Manual
file iconPCM8010-SP(Panel Mount Ver).pdf
Spec Sheet (Panel Mount Version)
  • PCM8010
    Front IP65 rated rugged enclosure
    10.4 inch 1024 x 768 LED backlight monitor
    5-wire resistive type touch screen monitor
    350-nits high brightness LCD panel, option for 1000-nits
    Celeron N2930 1.83GHz embedded system
    -25ºC to 60ºC wide range working temperature
    1 x LAN, 2 x USB, 1 x COM
    Wide range 9~36V DC power input
    Starting at:
    $2,660.00
PCM8010
$2,660.00

PRODUCT DESCRIPTION
PCM8010 is a fanless military-grade panel PC powered by Celeron Bay Trail N2930 1.83GHz. The front IP65 rated bezel is complemented with MIL-STD-810G and a wide range of operating temperatures. Featured with integrated Intel HD Graphics, 16.2 million colors, and an option for a 1000-nit high brightness display, the 10.4 inches LED monitor displays brilliant image qualities. Along with the Fintek F81866 chipset, SATA II HDD 500GB or mSATA SSD 64/128GB drive bay, LAN, COM, and two USB ports, PCM8010 will meet the functionality and practicality of requirements in demanding environments. The 10.4 inch LCD panel displays a maximum resolution of 1024 x 768. The standard configuration is 350-nit brightness but an option for 1000-nit high brightness is available. The contrast ratio is 1200:1 with a viewing angle at 176’(H)/ 176’(V). The backlight is LED and with 16.2 million colors. The 5-wire resistive type touch screen monitor is highly resistive to liquids and contaminants, easily activated with fingers, stylus or gloved hands, and consumes a low amount of power. The CPU is Celeron Bay Trail N2930 1.83GHz with a memory slot of DDR3 SO-DIMM 4GB (maximum 8GB), Fintek F81866 chipset, Integrated Intel HD Graphics, Intel WG82574L GbE Ethernet, and audio of Realtek ALC886 HD Audio Codec. The drive bay consists of SATA II HDD 500GB or mSATA SSD 64/128GB. The power supply is of a wide range of 9~36V DC power input. The connectors include two USB 2.0, COM port (RS-232), two RJ45 GbE LAN, and 9~36V DC input. PCM8010’s dimension is 11.02”(W) x 9.45”(H), creating an easy installation for VESA mount or an option for 30°~90° Swivel bracket. The full IP67 rating protects immersion of liquids and contaminants and MIL-STD 810G protects for vibration and shock, safeguarding the unit during harsh environment settings. The ability for wide range operating temperature of -10°C to 60°C (-14°F to 140°F) also takes contribution to the durability and long wear of the panel PC.
