Military Grade PC - MIL-STD-810 / Full IP67 Rated
Military-grade panel PCs designed to meet MIL-STD-810G testing standards for industrial and military computing applications. Available with display sizes from 10.4" to 19", these military-grade PCs are integrated with Intel's high performance or energy efficiency processors and support a wide range of I/O ports including LAN, COM, VGA, HDMI, or USB. With fully IP-rated enclosures and a wide range of working temperatures, these PCs provide reliability for operation in harsh working environments and mission-critical applications.
-
![]()

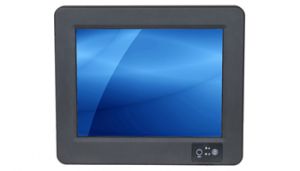

- Front IP65 rated rugged enclosure
- 10.4 inch 1024 x 768 LED backlight monitor
- 5-wire resistive type touch screen monitor
- 350-nits high brightness LCD panel, option for 1000-nits
- Celeron N2930 1.83GHz embedded system
- 1 x GbE LAN, 1 x COM, 2 x USB 2.0
- MIL-STD-810G -10°C to 60°C wide range working temperature
- Wide range 9~36V DC power input
-
![]()

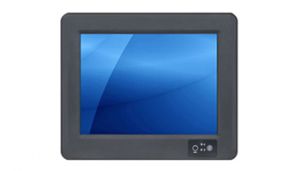

- Fully IP67 rated rugged enclosure
- 10.4 inch 1024 x 768 LED backlight monitor
- 5-wire Resistive type touch screen monitor
- 400-nits high brightness LCD panel, option for 1000-nits
- Intel Celeron N2930 1.83GHz embedded system
- 1 x GbE LAN, 1 x COM, 2 x USB 2.0 (D38999 connectors)
- MIL-STD-810G -15°C to 60°C wide range working temperature
- Wide range 9~36V DC power input
-
![]()

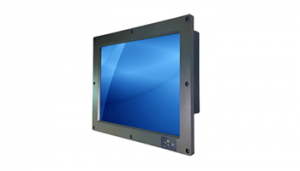

- Fully IP67 rated rugged enclosure
- 12.1 inch 1024 x 768 industrial LCD panel
- 5-wire resistive type touch screen with EMI mesh filter
- 400-nits LCD panel, option for 1000-nits high brightness
- Intel Celeron N2930 1.83GHz embedded system
- 2 x LAN + 2 x USB + 1 x RS-232 (D38999 connectors)
- MIL-STD-810G -10°C to 60°C wide range working temperature
- Wide range 9~36V DC power input with EMI filter
-
![]()
- Fully IP67 rated rugged enclosure
- 15.6 inch 1920 x 1080 LED backlight monitor
- 5-wire resistive type touch screen monitor
- 1000-nits high brightness LCD panel
- 6th generation Core i7-6600U 2.6GHz CPU
- 3 x GbE LAN, 2 x COM, 2 x USB 2.0 (D38999 connectors)
- MIL-STD-810G -20°C to 60°C wide range working temperature
- 9~36V isolated DC power input, option for AC power input
-
![]()

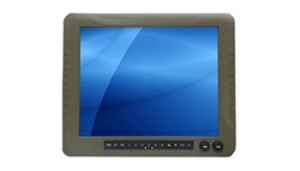

- Fully IP67 rated rugged enclosure
- 17 inch 1280 x 1024 LED backlight monitor
- 5-wire resistive type touch screen with EMI filter
- 1000-nits high brightness LCD panel
- 6th generation Core i7-6600U 2.6GHz embedded system
- 1 x LAN, 4 x COM, 1 x VGA video port (D38999 connectors)
- MIL-STD-810G -20ºC to 60ºC wide range working temperature
- 9~36V isolated DC input
-
![]()

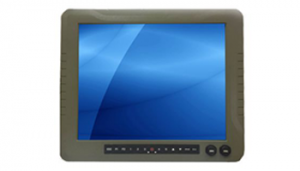

- Fully IP67 rated rugged enclosure
- 19 inch 1280 x 1024 LED backlight monitor
- Optional 5-wire resistive type touch screen monitor
- 1000-nits high brightness LCD panel
- 6th generation Core i7-6600U 2.6GHz embedded system
- 1 x LAN, 2 x COM, 1 x VGA video port (D38999 connectors)
- MIL-STD-810G -20ºC to 60ºC wide range working temperature
- 110~240V AC power input, option for 9~36V isolated DC input
-
![]()

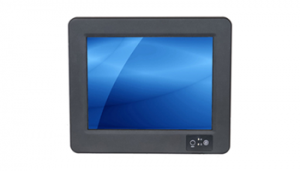

- Fully IP67 rated rugged enclosure
- 10.4 inch 1024 x 768 LED backlight monitor
- 5-wire resistive type touch screen monitor
- 350-nits high brightness LCD panel, option for 1000-nits
- 5th generation Core i5 5200U 2.2GHz embedded system
- 1 x LAN, 1 x COM, 2 x USB (D38999 connectors)
- MIL-STD-810G -20ºC to 60ºC wide range working temperature
- Wide range 9~36V DC power input
-
![]()
- Fully IP65 rated rugged enclosure
- 15 inch 1024 x 768 LED backlight monitor
- 5-wire resistive type touch screen monitor
- 1000-nit high brightness LCD panel
- 6th generation Core i5-6200U 2.3GHz CPU
- 1 x HDMI output, 1 x GbE LAN, 2 x COM, 2 x USB 2.0
- MIL-STD-810G -20°C to 60°C wide range working temperature
- 9~36V DC isolated DC power input, option for AC power adapter
-
![]()
- Fully IP66 rated anti-corrosion aluminum housing
- 15 inch 1024 x 768 LED backlight monitor
- 5-wire resistive type touch screen monitor
- 1000-nit high brightness LCD panel
- 6th generation Core i7-6600U 2.6GHz CPU
- 1 x HDMI output, Dual LAN, 2 x COM, 2 x USB
- MIL-STD-810G vibration, shock, and temperature
- 9~36V DC power input, option for AC power adapter
-
![]()
Fully IP66 rated anti-corrosion aluminum housing
- 15 inch 1024 x 768 LED backlight monitor
- 5-wire resistive type touch screen monitor
- 1000-nit high brightness LCD panel
- 8th generation Core i7-8665UE 2.0GHz CPU
- 6 x RJ45 GbE LAN, 2 x COM, 6 x USB
- MIL-STD-810G vibration, shock, and temperature
- 9~36V DC with EMI filter
REFERENCES
What is MIL-STD Rating?
The U.S. Military Standard (MIL-STD) gives a guideline for devices that are said to be “rugged” or “ruggedized”. It was introduced to provide a series of tests to simulate how the material would hold up to environmental stress during an operational lifetime. The MIL-STD standards detail 28 different testing methods that cover everything from temperature to fungal infestation to gunfire. The eight tests used to determine if a computing device is rugged include high temperature, low temperature, rain, humidity, sand and dust, immersion, vibration, and shock.
IP ratings are standards for electrical enclosures defined by the IEC (International Electrotechnical Commission). The rating refers to the degree of protection against water and dust provided by a computer's enclosure. The IP rating is expressed as a two-digit number (Example: IP-65). The first number designates protection from solids, while the second number designates protection from liquids. On the other hand, NEMA ratings are standards that are useful in defining the types of environments in which an electrical enclosure can be used. The NEMA rating system is defined by the NEMA (National Electrical Manufacturer Association), and frequently signifies a fixed enclosure’s ability to withstand certain environmental conditions.
