The PC9156C is a 15.6" fanless panel PC with the Intel Celeron J6412 CPU with SoC chipset, Resistive type touchscreen, and aluminum front bezel with IP66 rated waterproof front bezel. With a versatile range of I/O ports, including four USB ports, one RS-232/422/485 port, one audio line-out, two GbE LAN ports, and one DisplayPort, it ensures seamless connectivity. The PC9156C is designed with a durable aluminum die-casting chassis, featuring an IP66-rated waterproof front bezel, and supports a wide 9 to 36V DC power input, ensuring reliable performance in harsh environments.
Loading...
15

PC9150C

17

PC9170C

PC9156C

See PC9156 for product specifications.

$1,395.00
Availability: In stock
SKU
PC9156B-1
Email
The PC9156C is a 15.6-inch fanless industrial panel PC with an Intel Celeron J6412 CPU, 8GB RAM, 128GB M.2 storage, and a durable, waterproof aluminum chassis.
Material
Solid aluminum die-casting chassis
IP66 compliant front panel
LCD Panel
Size: 15.6 inch TFT LCD
Resolution: 1366 x 768
Brightness (cd/m²): 16.7M
Contrast Ratio (typ.): 500:1
Viewing Angle (H/V): 170° x 160°
Color: 16.7M
MTBF (hrs): 50,000
Touch Screen
Type: Resistive touch (Standard) / Projected Capacitive touch (Option)
Light Transmission: Resistive 80% / Projectived Capacitive 90%
Interface: USB
System
CPU: Intel Celeron J6412 processor (2.0GHz)
System Chipset: SoC
Memory: 1 x 260-pin SO-DIMM up to 32GB
Storage
1 x M.2 B-Key slot (Support SATA3; 2242/2280, Default 2242)
Expansion Slot
1 x Mini-PCIe slot (full size)
1 x M.2 E-key
1 x Nano SIM Card Holder
Connectors
2 x USB 3.2 Gen2 Type A
2 x USB 2.0 Type A
1 x RS-232/422/485 (Default RS-232)
1 x Audio Line Out
2 x 2.5GbE LAN RJ-45
1 x DP
1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector
Mounting
Panel or VESA (100mm) mount
Power Supply
Power Input: 9 to 36V DC power input
Power Consumption: TBD
Weight
TBD
Dimension

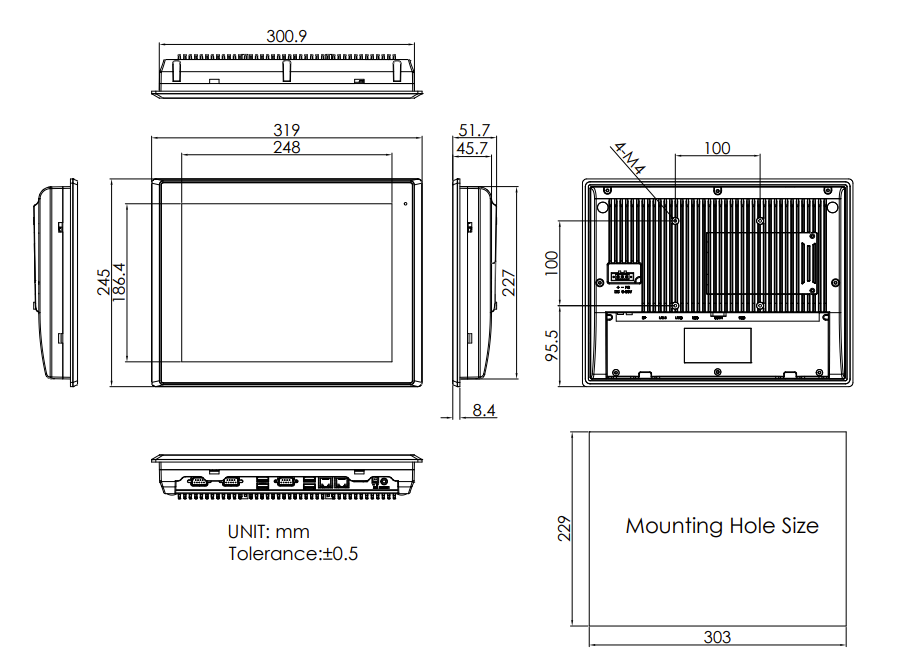

12.56"(W) x 2.04"(D) x 9.65"(H)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Humidity: 10 to 95% @ 40°C, non-condensing
Certification
CE, FCC Class A

PC9156C:
15.6 inch 1366 x 768 fanless industrial panel PC, Intel Celeron J6412 CPU, onboard 8GB DDR4 memory, Resistive type touch screen, 9 to 36V DC power input, IP66 rated flat front panel. Option for Projective Capacitive touch screen, 16 or 32GB memory, WLAN bluetooth, and Windows 11 OS.

  • PC9156C
    15.6" 1366 x 768 Resistive touch LCD monitor
    Option for Projected Capacitive touch screen
    IP66 compliant aluminum front bezel
    Intel Celeron J6412 CPU
    8GB DDR4 memory, option for 16GB or 32GB
    Option for M.2 WLAN/Bluetooth
    Wide range 9 to 36V DC power input
    Panel / VESA mount (100mm) ready
    Starting at:
    $1,395.00
PC9156C
$1,395.00
