The PC9150C is a high-performance 15-inch fanless industrial panel PC, equipped with an Intel Celeron J6412 CPU and 8GB RAM. This robust industrial PC features a resistive touch screen and 128GB M.2 storage, making it ideal for various applications. With a versatile range of I/O ports, including four USB ports, one RS-232/422/485 port, one audio line-out, two GbE LAN ports, and one DisplayPort, it ensures seamless connectivity. The PC9150C is designed with a durable aluminum die-casting chassis, featuring an IP66-rated waterproof front bezel, and supports a wide 9 to 36V DC power input, ensuring reliable performance in harsh environments.
Loading...
12.1

PC9120

15.6

PC9156C

PC9150C

  • 15 inch 1024 x 768 industrial LCD panel
  • IP66 compliant aluminum die-casted front bezel
  • Resistive touch, option for Projected Capacitive touch
  • Intel Celeron J6412 processor with SoC chipset
  • 4 x USB, 1 x RS-232/422/485, 1 x Audio Line Out, 2 x LAN, 1 x DP
  • Supports expansion via Full-size Mini-PCIe and M.2 slots
  • Wide range 9 to 36V DC power input
$1,365.00
Availability: In stock
SKU
PC9150C
Email
The PC9150C is a 15-inch fanless industrial panel PC with an Intel Celeron J6412 CPU, 8GB RAM, 128GB M.2 storage, and a durable, waterproof aluminum chassis.
Material
Solid aluminum die-casting chassis
IP66 compliant front panel
LCD Panel
Size: 15 inch TFT LCD
Resolution: 1024 x 768
Brightness (cd/m²): 300
Contrast Ratio (typ.): 2000:1
Viewing Angle (H/V): 176° x 176°
Color: 16.2M
MTBF: 70,000 hrs
Touch Screen
Type: Resistive touch (Standard) / Projected Capacitive touch (Option)
Light Transmission: Resistive 80% / Projectived Capacitive 90%
Interface: USB
System
CPU: Intel Celeron J6412 processor (2.0GHz)
System Chipset: SoC
Memory: 1 x 260-pin SO-DIMM up to 32GB
Storage
1 x M.2 B-Key slot (Support SATA3; 2242/2280, Default 2242)
Expansion Slot
1 x Mini-PCIe slot (full size)
1 x M.2 E-key
1 x Nano SIM Card Holder
Connectors
2 x USB 3.2 Gen2 Type A
2 x USB 2.0 Type A
1 x RS-232/422/485 (Default RS-232)
1 x Audio Line Out
2 x 2.5GbE LAN RJ-45
1 x DP
1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector
Mounting
Panel or VESA (100mm) mount
Power supply
Power Input: 9 to 36V DC power input
Power Consumption: TBD
Weight
9.7 lb / 4.4 kg (estimated)

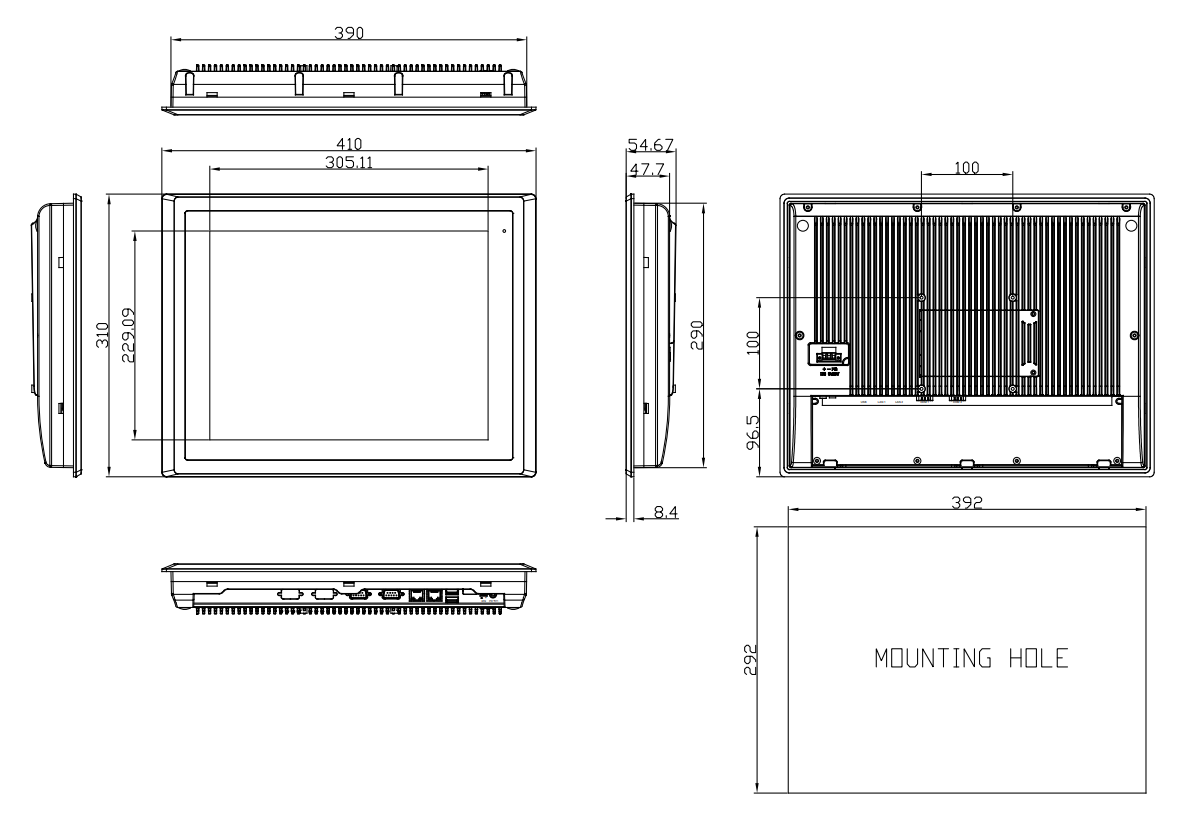

Dimension
16.14"(W) x 2.15"(D) x 12.20"(H)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Humidity: 10 to 95% @ 40°C, non-condensing
Certification
CE, FCC Class A

PC9120C:
15 inch 1024 x 768 fanless industrial panel PC, Intel Celeron J6412 CPU, onboard 8GB DDR4 memory, Resistive type touch screen, 9 to 36V DC power input, IP66 rated flat front panel. Option for Projective Capacitive touch screen, 16 or 32GB memory, WLAN bluetooth, and Windows 11 OS.

  • PC9150C
    15" 1024 x 768 Resistive touch LCD monitor
    Option for Projected Capacitive touch screen
    IP66 compliant aluminum front bezel
    Intel Celeron J6412 CPU
    8GB DDR4 memory, option for 16GB or 32GB
    Option for M.2 WLAN/Bluetooth
    Wide range 9 to 36V DC power input
    Panel / VESA mount (100mm) ready
    Starting at:
    $1,365.00
PC9150C
$1,365.00
