The PC9080 is an 8" fanless industrial panel PC powered by the Intel Celeron N2930 1.83GHz quad-core CPU with 4GB DDR3L memory and SATA MO-297 SSD bay. Housed in a die-cast aluminum bezel, the PC features an IP66 rated waterproof front bezel for harsh working environments. It also features a Resistive type touch screen and multiple I/Os including 2 x USB 3.0, 1 x RS-232/422/485, 1 x RS-232, 1 x Audio, and 2 x GbE LAN. The PC9080 is a reliable system designed to meet various industrial standards and IoT applications. Option for Projected Capacitive touch screen, 1000-nit high brightness display, -20°C to 60°C wide operating temperature, and Windows OS.
Loading...
7

PC9070

10.1

PC9101

PC9080

  • 8 inch 800 x 600 350-nit industrial LCD panel
  • Die-cast aluminum bezel with IP66 rated waterproof front bezel
  • Intel Celeron N2930 1.83GHz quad-core CPU with DDR3L memory
  • 2 x USB 3.0, 1 x RS-232/422/485, 1 x RS-232, 1 x Audio, 2 x GbE LAN
  • Resistive type touch screen, option for Projected Capacitive touch screen
  • Option for 1000-nit high brightness display or optical bonding
  • Option for -20°C to 60°C wide range working temperature
  • Wide range 9 to 36V DC power input
$965.00
Availability: In stock
SKU
PC9080
Email
8 inch 800 x 600 fanless panel PC with Celeron N2930 1.83GHz processor, 4GB DDR3L memory, and an IP66 rated flat front bezel with an aluminum die-casting chassis.
Material
Solid aluminum die-casting chassis
IP66 compliant front panel
LCD Panel
Size: 8 inch TFT LCD
Resolution: 800 x 600
Brightness (cd/m²): 350
Contrast Ratio (typ.): 500:1
Viewing Angle (H/V): 140° x 120°
Colors: 16.2M
MTBF (hrs): 40,000
Touch Screen
Resistive type touch screen
Light Transmission: 80%
Interface: USB
Projected Capacitive type touch screen (option)
Light Transmission: 90%
Interface: USB
System
CPU: Celeron N2930 1.83GHz
Memory: Onboard 4GB DDR3L 1333MHz
Chipset: SoC
Storage
1 x SATA MO-297 SDD bay
Expansion Slot
1 x internal mini-PCIe slot full size
Connectors
2 x USB 3.0
1 x DB-9 RS-232/422/485, COM 1 (Default RS-232)
1 X RS-232 DB-9, COM 2
1 x Audio line out
2 x GbE LAN RJ-45
1 X 3-pin DC power input terminal
1 x 2-pin connector for power on/off button
Power Supply
Power Input: 9 to 36V DC power input
Power Consumption: 26W (Max)
Option for external AC power adapter
Mounting
Panel or VESA (75mm) mount
Weight
4.19 lb / 1.9 kg

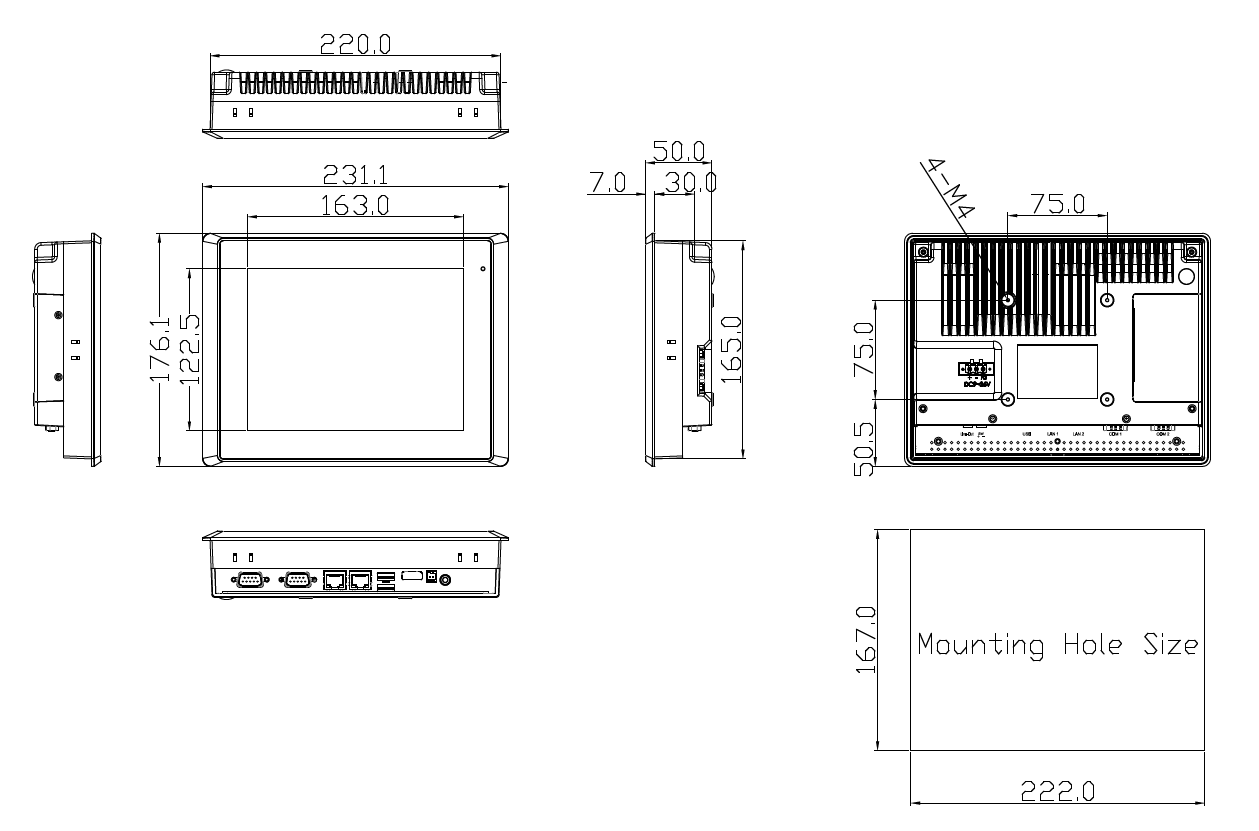

Dimension
9.09"(W) x 1.97"(D) x 6.93"(H)
Environmental
Operating Temperature: 0°C to 50°C
Option for -20°C to 60°C wide range working temperature
Storage Temperature: -30°C to 70°C
Relative Humidity: 10 to 90% @ 40°C, non-condensing
Certification
CE, FCC Class A

PC9080:
8 inch 800 x 600 fanless touch panel PC, Resistive type touch screen, Intel Celeron N2930 1.83GHz CPU, 4GB memory, 9 to 36V DC power input, IP66 rated front bezel. Option for PCAP type touch screen / 1000-nit high brightness display / optical bonding, external AC power adapter, -20°C to 60°C wide operating temperature, and Windows OS.

Document
Description
Download Link
file iconPC9080-SP(V1-2).pdf
Spec Sheet
file iconPC9XXX-UM.pdf
User Manual
file iconPC9080-FCC Part 15B Measurement & Test Report.pdf
Certification
file iconPC9080-FCC Declaration of Conformity.pdf
Certification
  • PC9080
    8" 800 x 600 resistive type touch screen monitor
    Option for Projected Capacitive type touch screen
    Option for 1000-nit high brightness or optical bonding
    Onboard 4GB DDR3L memory & 64GB SSD
    Option for -20°C to 60°C wide operating temperature
    Wide range 9 to 36V DC power input
    Panel or VESA (75mm) mount ready
    Starting at:
    $965.00
PC9080
$965.00

PRODUCT DESCRIPTION
PC9080 is an 8” industrial Panel PC with Celeron N2930 1.83GHz CPU, fanless feature, resistive type LCD touch screen, and support Mini PCIe expansion slot for future add on device. The LCD panel is of 8 inches, 800 x 600 resolution, 350nit brightness, and colors of 16.2 million, displaying brilliance graphical images. The touch screen monitor is resistive type, providing high resistance to surface contaminants and liquids like dust, oil, grease, and moisture. It has light transmission at 80% and uses an RS-232 interface. The option for a projected capacitive type touch screen is also available. The CPU type is Bay Trail N2930 1.83GHz, SoC chipset, and onboard DDR-III SODIMM 4 GB 800 MHz memory, providing excellent performance and storage space. The drive bay supports one SATA MO-297 SDD bay. The connectors include 2 COM ports (1 for RS-232/422/485, 1 for RS-232), 2 USB, 2 Ethernet ports, 1 line-out audio, 1 3-pin terminal block for DC power input. The system supports Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7, Windows 8, Windows Embedded Standard 8, Windows 8.1, Windows Embedded 8.1 Industry. It has a wide range of 9~36V DC power input. With the aluminum chassis, it provides durability and will keep its shape even in severe weather condition but it is also lightweight. With the die-casting, it is resistant to stress-cracking in presence to various reagents and is not hazardous waste. Working together, they create a protective casing especially with the IP66 design on the flat front panel. The operational temperature ranges from 32°F to 122°F and storage temperature -22°F to 158°F.
