Panel mount monitor with a 24 inch 1920 x 1080 full HD industrial LCD monitor, full-IP66/69K rated anti-corrosion stainless steel housing, P-cap touch screen, and 110/240VAC power input. Option for 1000-nit high brightness monitor, optical bonding, DVI/HDMI video input, -20°C to 60°C wide range working temperature, and DC power input.
Loading...
18.5 inch Stainless Steel Panel Mount Monitor - PMN80180

PMN80180

27

PMN80270

PMN80240

  • Full IP66/69K anti-corrosion stainless steel housing
  • 24 inch 1920 x 1080 Full HD industrial LCD monitor
  • Option for 1000-nit high brightness display or optical bonding
  • VGA video input, option for DVI or HDMI (IP66 rated connectors)
  • PCAP multi-touch screen, option for Resistive touch screen
  • Option for -20°C to 60°C wide range working temperature
  • VESA mount (100 x 100mm, 200 x 100mm)
  • 110/240VAC power input, option for 9 to 36V DC power input
$1,887.00
Availability: In stock
SKU
PMN80240
Email
24 inch 1920 x 1080 industrial LCD monitor with VGA video input, P-cap multi-touch screen monitor, IP66/69K rated stainless steel enclosure, and 110/240VAC power input.
Material
SUS316 stainless steel
Anti-corrosion stainless steel housing
LCD Panel
Size: 24 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 250
Contrast Ratio (typ.): 5000:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 531.36H x 289.89V
Pixel Pitch (mm): 0.27675H x 0.27675V
Colors: 16.7M
Option for 1000-nit high brightness
Option for optical bonding
Video Input
VGA video input
Option for DVI or HDMI input
Touch Screen
PCAP multi-touch screen with USB port
Option for Resistive touch screen with USB port
OSD
OSD Input: 5-key OSD buttons
OSD Function: Contrast, Color, Position, Auto Adjustment, Factory Settings
Power Supply
Input: AC 110~240V, Universal, ±10%
Power Consumption: 30W (typ.)
Option for 9~36V DC power input
Connectors
1 x VGA (IP66 connector)
1 x DVI (Optional, IP66 connector)
1 x HDMI (Optional, IP66 connector)
1 x USB for touch screen (IP66 connector)
Cables
6ft IP66 rated cables for touch screen, video input, and power
Weight
30.86 lb / 14 kg

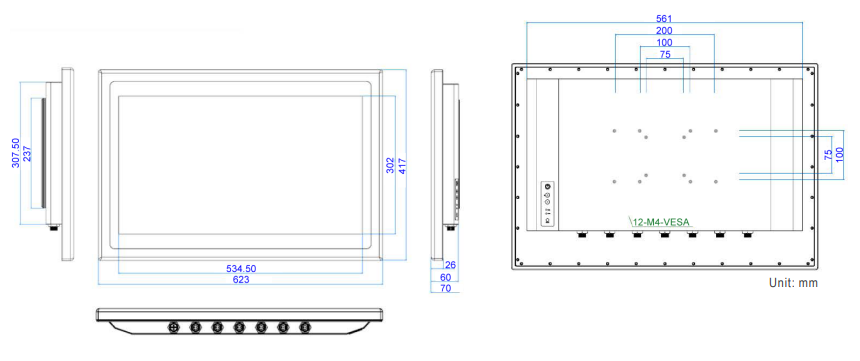

Dimension
24.53"(W) x 16.42"(H) x 2.76"(D)
Mounting
VESA mount (100 x 100mm, 200 x 100mm)
Environmental
Operating Temperature: 0°C to 50°C
Option for -20°C to 60°C wide range working temperature
Storage Temperature: -40°C to 80°C
Relative Humidity: 10% to 95%, non-condensing
IP Grade: Full-IP66/69K

PMN80240:
24 inch 1920 x 1080 Full HD industrial LCD monitor, VGA video input, PCAP multi-touch screen, 110/240VAC power input, full IP66/69K anti-corrosion stainless steel housing. Option for 1000-nit high brightness or optical bonding, Resistive type touch screen, DVI or HDMI video input, and 9 to 36V DC power input.
Lead Time: 6 to 8 Weeks

Document
Description
Download Link
file iconPMN80240-SP(V1-2).pdf
Spec Sheet
  • PMN80240
    Full IP66/69K anti-corrosion stainless steel housing
    24 inch 1920 x 1080 Full HD industrial LCD monitor
    Option for 1000-nit high brightness LCD panel or optical bonding
    VGA video input, option for DVI or HDMI (IP66 rated connectors)
    PCAP multi touch screen monitor, option for Resistive touch screen
    Option for -20°C to 60°C wide range working temperature
    VESA mount (100 x 100mm, 200 x 100mm)
    110/240VAC power input, option for 9 to 36V DC power input
