Industrial monitor with a 15.6 inch 1366 x 768 resistive type touchscreen display, VGA + DVI + HDMI + DP video input, and panel or VESA (100mm) mounting holes. Built with an aluminum die-casting chassis and IP66 waterproof flat front bezel, APA9156 can withstand the harsh conditions commonly found in industrial settings. Option for Projected Capacitive type touch screen and 1000-nits high brightness.

Skip to the beginning of the images gallery

APA9185

APA9238

APA9156

Aluminum die-casting enclosure
Features flat front bezel with IP66 design
15.6 inch 1366 x 768 Resistive type touch screen monitor
2.32" short depth metal rugged construction
Option for Projected Capacitive type touch screen monitor
VGA, DVI, HDMI, and DP video input
Panel mount or VESA (100mm) mount ready
9 to 36V DC power input w/ external AC power adapter

$785.00

Availability: In stock

SKU

APA9156

15.6" 1366 x 768 resistive type touchscreen monitor with VGA + DVI + HDMI + DP video input, IP66 rated flat front bezel, and 9 to 36V DC power input with external AC power adapter.

Specification

Material: Solid aluminum die-casting chassis
IP66 compliant flat front panel

LCD Panel: Size: 15.6 inch
Max Resolution: 1366 x 768
Brightness (cd/m²): 300, option for 1000-nit
Contrast Ratio (typ) : 500:1
Viewing Angle (H/V): 160° x 160°
Colors: 16.7M
MTBF (hrs): 50,000

Video input: 1 x VGA
1 x DP
1 x DVI-D (share with HDMI)
1 x HDMI (share with DVI-D)

Touch screen: Resistive type touch screen monitor with USB port (std)
Option for Projected Capacitive type touch screen monitor with USB port

Rear panel control: Power on/off switch
OSD membrane switch

Mounting Type: Panel mount or VESA (100mm) mount

Connectors: 1 x VGA port
1 x DP port
1 x DVI-D port (share with HDMI)
1 x HDMI port (share with DVI-D)
1 x USB Type B for touchscreen
1 x 3-pin terminal block DC power input
1 x 2W speaker (option)

Power supply: Power Input: 9~36V DC power input with external AC power adapter
Power Consumption: Max. 13W

Weight: 9.70 lb / 4.4 kg

Dimension: 16.22"(W) x 10.93"(H) x 2.32"(D)

Environmental: Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temeprature: -30°C to 70°C (-22°F to 158°F)
Relative Humidity: 10~90% @ 40°C, non-condensing

Certification: CE/FCC, Class A

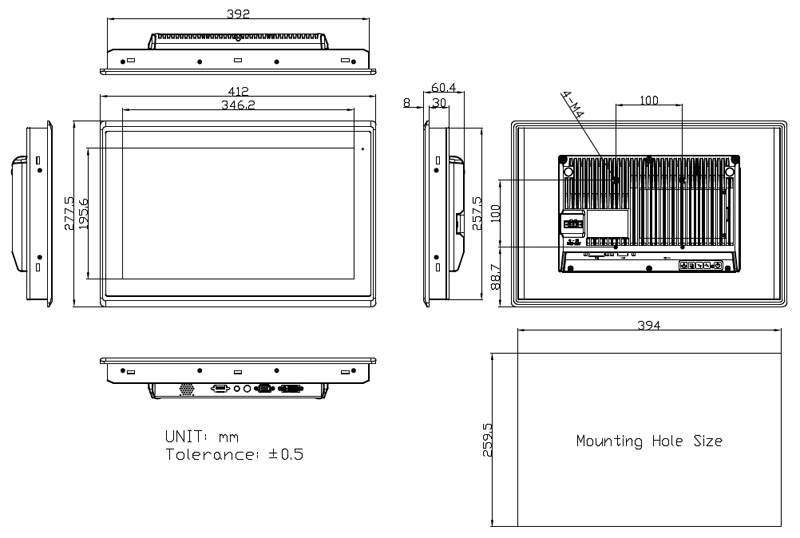

Dimensions

Order Info

APA9156:
15.6 inch 1366 x 768 resistive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input with external AC power adapter.

APA9156P:
15.6 inch 1366 x 768 projected capacitive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input with external AC power adapter.

Downloads

Document

Description

Download Link

APA9156-SP.pdf

Spec Sheet

Configure Now

APA9156

Starting at:
$785.00

APA9156

$785.00

Touch Screen

15.6-inch Resistive-type touch screen, USB port

15.6-inch Projected Capacitive-type touch screen, USB port + $82.00

High Brightness

N/A

1000-nits high brightness LCD panel + $254.00

Speaker

N/A

2W speaker + $42.00

Qty:

PRODUCT DESCRIPTION
A 15.6-inch panel mount monitor with IP65 flat front bezel and resistive type touch screen. The 2.38” short depth rugged monitor features an aluminum die-casting chassis, VGA / DVI-D / HDMI / DP video input, and is a VESA mount or panel mount ready. APA9156 displays a 15.6 inch LCD panel with 1366 x 768 resolution, 300-nits brightness, 500:1 contrast ratio, 16.7 M colors, and LED backlight. The mean time between failure (MTBF) is 50,000 hours. The signal input supports VGA and DVI. The touch screen is of resistive type touch with USB port. The option for capacitive type touch with USB is available. The connectors include 1 x VGA port, 1 x DVI port, 1 x HDMI port, 1 x DP port, 3-pin terminal block DC power input, USB for touch control. The power supply supports 9~36V DC power input. The panel controls for power on/off switch and OSD membrane switch. The panel mount monitor is built of solid aluminum die-casting chassis with an IP65 compliant flat front panel. The dimension measures at 16.22"(W) x 10.93"(H) x 2.38"(D) and weighs 10.14 lbs. The operating temperature can withstand at 0°C to 50°C (32°F to 122°F) and storage temperature at -20°C to 60°C (-4°F to 140°F). The relative humidity tolerates from 10~90%, at 40°C non-condensing.
