Industrial Touch Displays - IP66 Waterproof Front Bezel

Waterproof touch screen monitors featuring an aluminum die-casting chassis and IP66 rated front bezel for applications where dirt, dust, and water are present. The displays are available in sizes from 7" to 23.8" and can be configured with touch screen technology (Resistive or Projected Capacitive), 1000-nit high brightness display, and wide operating temperatures. These waterproof monitors provide a full range of input signals such as VGA, DVI-D. HDMI, and Display Port for various application requirements. This waterproof touch screen monitor series is ideal for use in factories, clean rooms, processing plants, and other industrial environments.

Industrial Touch Displays - IP66 Waterproof Front Bezel

HMI (human machine interface) computers integrating an embedded computer and user-friendly touch screen display into a compact, rugged enclosure designed for physically demanding environments. The monitors feature an aluminum die-casting chassis, IP66 rated flat front bezel, Resistive type touch screen, VGA / DVI / HDMI / DP video input, VESA mount, and 9 to 36V DC power input.

- Aluminum die-casting chassis
- Features flat front bezel with IP66 design
- 7 inch 800 x 480 Resistive type touch screen
- VGA, DVI, HDMI, and DP input
- Panel or VESA (75mm) mount ready
- 1.54" short depth metal rugged construction
- 9 to 36V DC power input w/ external AC power adapter
APA9070

$135.00
- Aluminum die-casting chassis
- Features flat front bezel with IP66 design
- 8 inch 800 x 600 Resistive type touch screen
- Option for Projected Capacitive type touch screen
- Option for 1000-nits high brightness display
- VGA, DVI, HDMI, and DP input
- Panel or VESA (75mm) mount ready
- 2.0" short depth metal rugged construction
- 9 to 36V DC power input w/ external AC power adapter
APA9080

$525.00
- Aluminum die-casting chassis
- Features flat front bezel with IP66 design

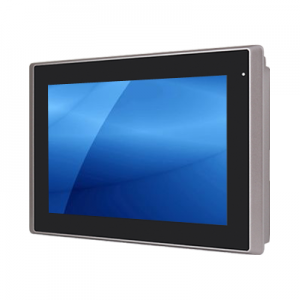

- 10.1 inch 1280 x 800 Resistive type touch screen
- Option for Projected Capacitive type touch screen
- Option for 1000-nits high brightness display
- VGA, DVI, HDMI, and DP input
- Panel or VESA (100mm) mount ready
- 1.93" short depth metal rugged construction
- 9 to 36V DC power input w/ external AC power adapter
APA9101

$685.00
- Aluminum die-casting chassis
- Features flat front bezel with IP66 design

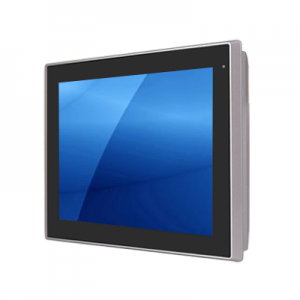

- 12.1 inch 800 x 600 Resistive type touch screen monitor
- Option for Projected Capacitive type touch screen
- Option for 1000-nits high brightness display
- VGA, DVI, HDMI, and DP input
- Panel or VESA (100mm) mount ready
- 2.03" short depth metal rugged construction
- 9 to 36V DC power input w/ external AC power adapter
APA9120

$685.00
- Aluminum die-casting chassis
- Features flat front bezel with IP66 design
- 15 inch 1024 x 768 Resistive type touch screen monitor
- 2.15" short depth metal rugged construction
- Option for Projected Capacitive type touch screen
- VGA, DVI, HDMI, and DP video input
- Panel mount or VESA (100mm) mount ready
- 9 to 36V DC power input w/ external AC power adapter
APA9150

$696.00
- Aluminum die-casting enclosure
- Features flat front bezel with IP66 design
- 15.6 inch 1366 x 768 Resistive type touch screen monitor
- 2.32" short depth metal rugged construction
- Option for Projected Capacitive type touch screen monitor
- VGA, DVI, HDMI, and DP video input
- Panel mount or VESA (100mm) mount ready
- 9 to 36V DC power input w/ external AC power adapter
APA9156

$785.00

Out of stock
- Aluminum die-casting chassis
- Features flat front bezel with IP66 design
- 17 inch 1280 x 1024 Resistive type touch screen monitor
- 2.55" short depth metal rugged construction
- Option for Projected Capacitive type touch screen
- VGA, DVI, HDMI, and DP video input
- Panel or VESA (100mm) mount ready
- 9 to 36V DC power input w/ external AC power adapter
APA9170

$987.00
- Aluminum die-casting chassis
- Features flat front bezel with IP66 design

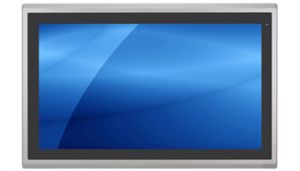

- 18.5 inch 1366 x 768 Resistive type touch screen monitor
- 2.36" short depth metal rugged construction
- Option for Projected Capacitive type touch screen
- VGA, DVI, HDMI, and DP video input
- Panel mount or VESA (100mm) mount ready
- 9 to 36V DC power input w/ external AC power adapter
APA9185

$1,100.00
- Aluminum die-casting chassis
- Features flat front bezel with IP66 design

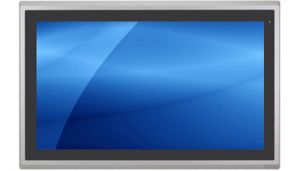

- 21.5 inch 1920 x 1080 FHD Resistive type touch screen monitor
- 2.55" short depth metal rugged construction
- Option for Projected Capacitive type touch screen
- VGA, DVI, HDMI, and DP video input
- Panel mount or VESA (100mm) mount ready
- 9 to 36V DC power input w/ external AC power adapter
APA9215

$1,392.00
- Aluminum die-casting chassis
- Features flat front bezel with IP66 design
- 23.8 inch 1920 x 1080 FHD industrial LCD monitor
- 1.73" short depth metal rugged construction
- Option for Projected Capacitive type touch screen
- VGA, DVI, HDMI, and DP video input
- Panel or VESA (200 x 100mm) mount ready
- 9 to 36V DC power input w/ external AC power adapter
APA9238

$1,387.00

Out of stock

REFERENCES
Industrial Touch Screen Monitors for Data Display, Smart Factory, and IIoT Solutions
Ultra-slim, rugged touch screen monitors designed to operate 24/7 in physically demanding environments. The developing industry becoming more complex and is in high demand for more reliable and efficient technologies. Embedded Human Machine Interface touch screen technology shows exceptional performance for complicated industrial applications. The APA series are rugged industrial displays designed for data display, smart factory, and IIoT applications. The monitors come with an aluminum die-casting enclosure with a front IP66 rated water and dust proof bezel and Resistive type touchscreen. The APA series also features a full range of input signals including VGA, DVI-D, HDMI, and DP ports to fulfill various application requirements. Available in a wide range of sizes from 7" to 23.8", the APA series is rugged and offers many features that make it the perfect solution for industrial applications and IIoT solutions.

Human Machine Interface (HMI) Solutions
Human-machine interface (HMI) solutions can vary in sophistication and cost, which depends mostly on the amount of interaction and information exchange is needed between the human operator and the machine. Computation-intensive tasks must be taken into account when choosing an HMI solution since HMI usually doubles as a data collection and supervisory communications hub. As with the other aspects of industrial automation, HMI display and input technologies have chased the curve of commercial computing technology, adapting the latest consumer advances to the unique demands of the industrial environment.

What is an IP Rating?
IP ratings are standards for electrical enclosures defined by the IEC (International Electrotechnical Commission). The rating refers to the degree of protection against water and dust provided by a computer's enclosure. The IP rating is expressed as a two-digit number (Example: IP-65). The first number designates protection from solids, while the second number designates protection from liquids.
