The APM5200 is a 20" industrial LCD monitor supporting 1600 x 1200 resolution and VGA + HDMI (no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5120 is equipped with a variety of optional features and modules including an IP65 rated front bezel, Resistive touch screen, additional input modules, and DC power input.

Loading...
12.1

APM5120

APM6084

APM6084

APM5200

  • 20" industrial LCD monitor
  • Supports 1600 x 1200 native resolution
  • VGA + HDMI (no speaker) video input
  • Option for HDMI, Audio, 3G-SDI, or MCS
  • Option for Resistive 1-pt touch screen - USB
  • Option for front IP65 / NEMA4 rated protection
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,360.00
Availability: In stock
SKU
APM5200
Email

20" industrial LCD monitor supporting 1600 x 1200 native resolution, VGA + HDMI (no speaker) video input, VESA (100mm) mount, 100/240VAC power input, and an aluminum front bezel.

Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65/NEMA4 rated front bezel
LCD Panel
Size: 20 inch
Native Resolution: 1600 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ): 800:1
Colors: 16.7 M
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.255
Display Area (mm): 408H x 306V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight Type: CCFL
MTBF (hrs): 45,000
Video input
Standard: VGA + HDMI (no speaker)
Option: HDMI, Audio, 3G-SDI input, or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Lockable USB connector
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter included
1 x Power cord included
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 45W, Standby 4W
Option for 12V / 24V / 48V /125V DC power input
Weight
15.4 lb / 7 kg

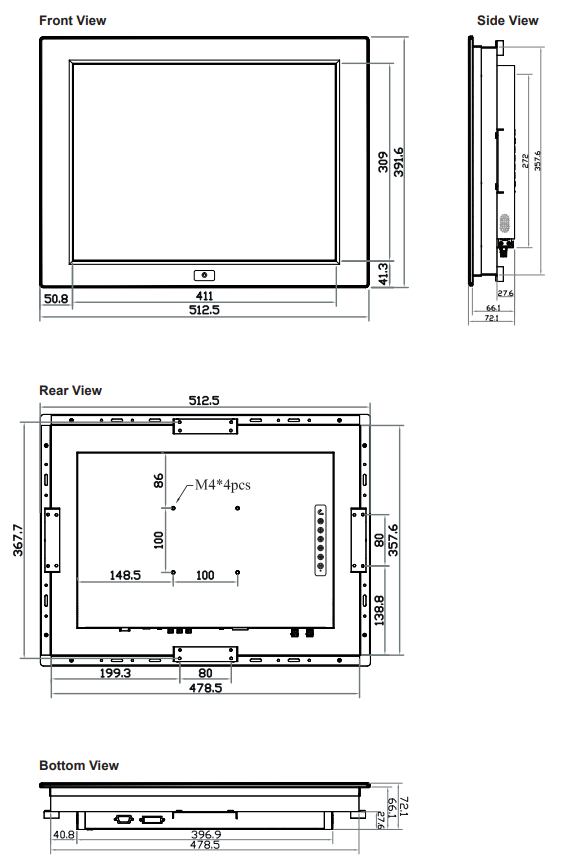

Dimension
20.2"(W) x 2.8"(D) x 15.4"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APM5220:
20" industrial LCD monitor, 1600 x 1200 native resolution, VGA + HDMI (no speaker) video input, VESA (100 x 100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPM5200-SP.pdf
Spec Sheet
file iconAPM5200-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
file iconTouch Screen Calibration Guide.pdf
Touch Screen Calibration Guide
