The APM5170 is a 17" industrial LCD monitor supporting 1280 x 1024 resolution and VGA + HDMI (no speaker) video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5170 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology, additional input modules, and DC power input.

Loading...
15

APM5150

APM5170

  • 17" industrial LCD monitor
  • Supports 1280 x 1024 native resolution
  • VGA + HDMI (no speaker) video input
  • Option for HDMI, BNC, 3G-SDI, or MCS
  • Option for Resistive or PCAP touch screen - USB
  • Option for front IP65 / NEMA4 rated protection
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$618.00
Availability: In stock
SKU
APM5170
Email

17" industrial LCD monitor supporting 1280 x 1024 native resolution, VGA + HDMI (no speaker) video input, VESA (100mm) mount, 100/240VAC power input, and an aluminum front bezel.

Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65/NEMA4 rated front bezel
LCD Panel
Size: 17 inch
Native Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio (typ): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.264
Display Area (mm): 337.92H x 270.33V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness; 3H
Backlight Type: LED
MTBF (hrs): 50,000
Video input
Standard: VGA + HDMI (no speaker)
Option: HDMI, BNC, 3G-SDI input, or MCS multi-display control
Touch screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 1-pt or 10-pt touch screen - USB port
Lockable USB connector
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter
1 x Power cord
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 22W, Standby 4W
Option for 12V / 24V / 48V /125V DC power input
Weight
14.5 lb / 6.6 kg

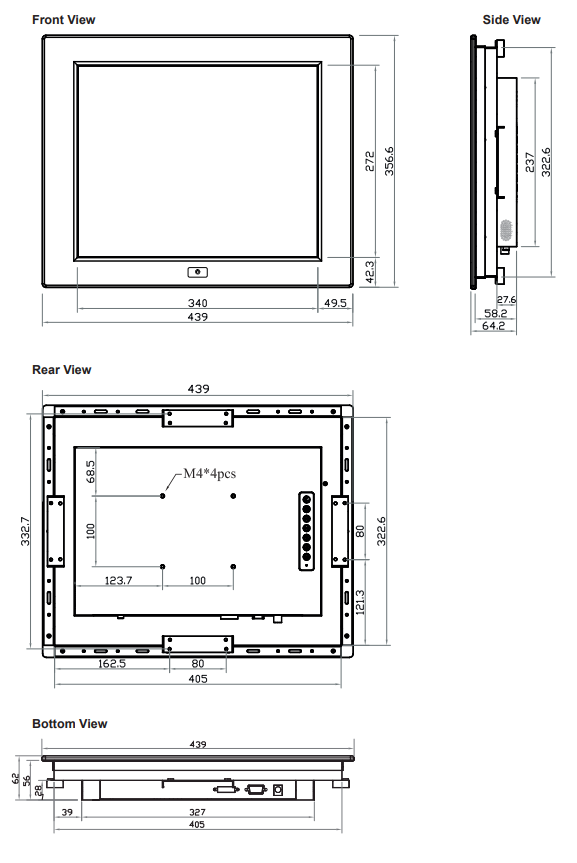

Dimension
17.3"(W) x 2.5"(D) x 14"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APM5170:
17" industrial LCD monitor, 1280 x 1024 native resolution, VGA + HDMI (no speaker) video input, VESA (100 x 100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPM5170-SP.pdf
Spec Sheet
file iconAPM5170-UM.pdf
User Manual
file iconMCS-UM.pdf
MCS User Manual
file iconTouch Screen Calibration Guide.pdf
Touch Screen Calibration Guide
  • APM5170
    17" industrial LCD monitor
    Supports 1280 x 1024 native resolution
    VGA + HDMI (no speaker) video input
    Option for HDMI, BNC, 3G-SDI, or MCS
    Option for Resistive or PCAP touch screen - USB
    Option for front IP65 / NEMA4 rated protection
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $618.00
APM5170
$618.00

PRODUCT DESCRIPTION
The APM5170 is a 17" panel mount monitor supporting an industrial LED backlight LCD panel displaying high picture quality. The APM5170 features a 2.5" short depth metal rugged construction with a 6mm aluminum front bezel and 3mm protective glass. The option for IP65 / NEMA4 front bezel is available. The LCD panel displays a crisp image of resolution 1280 x 1024, 250-nits brightness, 1000:1 contrast ratio, 16.7 million colors, and an active area of 337.92H x 270.33V mm. The LED backlight is supported by 30,000 hours of MTBF (mean time between failures). The video and signal input is VGA and DVI-D. Option available for HDMI, BNC, Audio w/speaker, Remote Control, or SDI input. The monitor is panel or VESA (100 x 100mm) mount ready. The power supply is an auto-sensing 100 to 240VAC, 50 / 60Hz power input with the option for a 12V / 24V / 48V / 125V DC power input. Options are available for a Resistive or Projected Capacitive multi-touch screen monitor with a USB controller. The rear panel has a power on/off switch and an OSD membrane switch. The OSD menu controls Brightness, Contrast, Phase & Clock, Color, H & V position, and Auto-tune. Option for MCS multi-display OSD menu control via a serial port is available. The APM5170 is CE, FCC, RoHS, and TAA compliant.
