The APM5150 is a 15" industrial LCD monitor supporting 1024 x 768 resolution and VGA video input. Designed to meet professional and industrial demands, the display features an aluminum front bezel, improved energy efficiency, and a fanless architecture that provides around-the-clock operation. The APM5150 is equipped with a variety of optional features and modules including IP65 rated front bezel, touch screen technology, additional input modules, and DC power input.
Loading...
17

APM5170

19

APM5190

APM5150

  • 15" industrial LCD monitor
  • Supports 1024 x 768 native resolution
  • VGA video input
  • Option for HDMI, Audio, 3G-SDI, or MCS
  • Option for Resistive or PCAP touch screen - USB
  • Option for front IP65 / NEMA4 rated protection
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$670.00
Availability: In stock
SKU
APM5150
Email
15" industrial LCD monitor supporting 1024 x 768 native resolution, VGA video input, VESA (100 x 100mm) mount, 100/240VAC power input, and an aluminum front bezel.
Material
8mm aluminum front bezel
Rear rugged heavy-duty metal construction
Option for IP65/NEMA4 rated front bezel
LCD Panel
Size: 15 inch
Native Resolution: 1024 x 768
Brightness (cd/m²): 350
Contrast Ratio (typ) : 800:1
Colors: 16.2 M
Viewing Angle (H/V): 160° x 150°
Response Time (ms): 8
Dot Pitch (mm): 0.297
Display Area (mm): 304.128H x 228.096V
Surface Treatment: Haze 25%
Surface Hardness: 3H
Backlight: CCFL
MTBF (hrs): 50,000
Video input
Standard: VGA
Option: DVI-D, HDMI, Audio, 3G-SDI, or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
VESA (100 x 100mm) mount
Cable
1 x 6ft VGA cable included
1 x Power adapter included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 12W, Standby 4W
Option for 12V / 24V / 48V /125V DC power input
Weight
10.3 lb / 4.7 kg

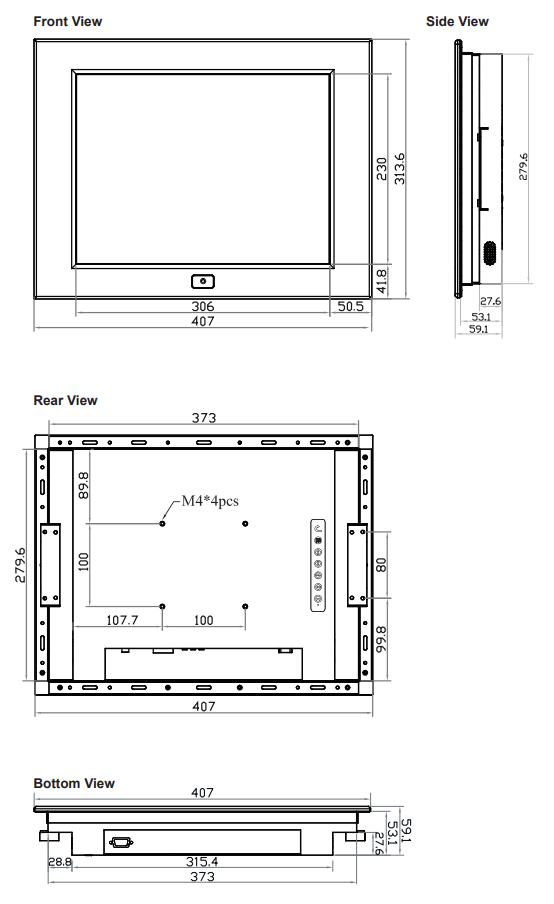

Dimension
16"(W) x 2.3"(D) x 12.3"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

APM5150:
15" industrial LCD monitor, 1024 x 768 native resolution, VGA video input, VESA (100 x 100mm) mount, 100/240VAC power input, aluminum front bezel, Black color.

Document
Description
Download Link
file iconAPM5150-SP.pdf
Spec Sheet
file iconAPM5150-UM.pdf
User Manual
file iconTouch Screen Calibration Guide.pdf
Touch Screen Calibration Guide
  • APM5150
    15" industrial LCD monitor
    Supports 1024 x 768 native resolution
    VGA video input
    Option for HDMI, Audio, 3G-SDI, or MCS
    Option for Resistive or PCAP touch screen - USB
    Option for front IP65 / NEMA4 rated protection
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $670.00
APM5150
$670.00
