The RPM-HD17 is a 2U multi-display drawer featuring 17.3" LCD monitors supporting 1920 x 1080 native resolution, VGA + DVI-D video input, and 100/240VAC power input. The rack monitor drawer has built-in solid bearing slide rails and dual stereo speakers and a 2U short-depth rugged construction for mobility and durability.
RPM-HD17
- 2U multi-display rackmount display drawer
- Dual or triple 17.3" Full HD industrial LCD panels
- Supports 1920 x 1080 native resolution
- VGA + DVI-D video input (per panel)
- Option for HDMI or 3G-SDI input (per panel)
- Built-in solid bearing slide rails & front OSD buttons
- Built-in dual stereo speaker (per panel)
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V DC power input
In stock
SKU
RPM-HD17
2U 17.3" multi-display rackmount display drawer with 1920 x 1080, VGA + DVI-D input, built-in solid bearing slide rails, and a 2U high 22" depth rack console drawer.
- Material
- Heavy-duty steel
- LCD Panel
- Size: 17.3 inch
Max Resolution: 1920 x 1080
Refresh Rate (Hz): 60
Brightness (cd/m²): 300, option for 1000-nit high brightness
Contrast Ratio (typ.): 1000:1
Display Area (mm): 381.888H x 214.812V
Viewing Angle (H/V): 170° x 170°
Response Time (ms): 25
Dot Pitch (mm): 0.1989
Colors: 16.7M, 8-bit
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 15,000
- LCD Mounting Position
- RPM-HD17-2L: Dual display (left hinged mount)
RPM-HD17-2R: Dual display (right hinged mount)
RPM-HD17-3: Triple display
- Video Input
- Standard: VGA + DVI-D video input (per panel)
Option: VGA + HDMI or VGA + 3G-SDI input (per panel)
- Front Panel Control
- Power on/off switch
OSD (on-screen display)
- Drawer Design
- Built-in solid bearing slide rails
Mounting Distance: 21.7~31.1 inch (550~790 mm)
- Power Supply
- Input: Auto-sensing 100 to 240VAC, 50/60Hz
Consumption Per Panel: Max. 14W, Saving Mode 2W
Option for 12V / 24V / 48V DC power input
- Color
- Black
- Weight
- Dual Display: 42.7 lb / 19.4 kg
Triple Display: 53 lb / 24.1 kg

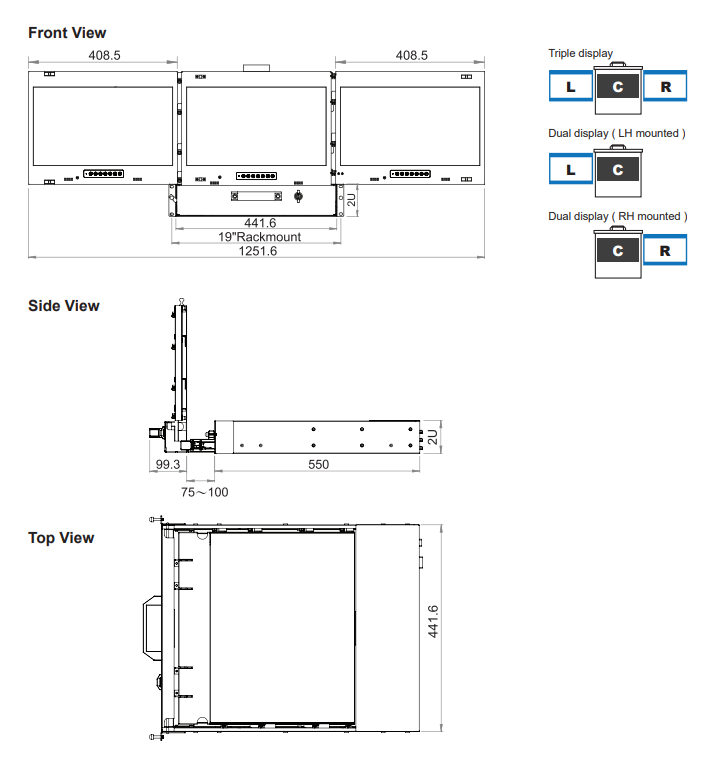

- Dimension
- Product: 17.4"(W) x 21.7"(D) x 3.5"(H)
Packing: 22.8"(W) x 26.9"(D) x 7.8"(H)
- Environmental
- Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
- Compliance
- CE, FCC, RoHS, TAA
RPM-HD17-2L:
Dual 17.3 inch 1920 x 1080 industrial LCD panels, left & center mounted display, VGA + DVI-D video input, 2U high 22" depth rackmount drawer, Black color.
RPM-HD17-2R:
Dual 17.3 inch 1920 x 1080 industrial LCD panels, center & right mounted display, VGA + DVI-D video input, 2U high 22" depth rackmount drawer, Black color.
RPM-HD17-3:
Triple 17.3" 1920 x 1080 industrial LCD panels, VGA + DVI-D video input, 100/240VAC power input, 2U high 22" depth rackmount drawer, Black color.
