The KDF8170 is a 17.3" widescreen LCD rack console drawer with 1920 x 1080 Full HD resolution, 104-key keyboard with touchpad, and VGA +HDMI (no speaker) video input. Mounted into a 1U standard 19" rackmount space with a short-depth design of only 460mm, this 1U rack console is the ideal solution for data centers and others IT environments. Options are available for MAC or SUN keyboard layout, touch screen technology, HDMI 1.4 + Audio input & output / DP 1.0 / SDI input, and DC power input.
Loading...
1U 17

KD8172

17 inch monitor keyboard drawer - front view

KD9150H

KDF8170

  • 17.3" Full HD rack LCD console drawer
  • Supports 1920 x 1080 native resolution
  • VGA + HDMI (no speaker) video input
  • 104-key keyboard with touchpad or trackball
  • Option for Resistive or Projected Capacitive touchscreen
  • Option for HDMI, DP, BNC, front USB hub, or 3G-SDI input
  • Short-depth drawer design of 18.1" (460mm)
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,185.00
Availability: In stock
SKU
KDF8170
Email

1U 17.3" rack LCD console drawer with 1920 x 1080 FHD resolution, VGA + HDMI (no speaker) input, and a 104-keyboard with touchpad in a 1U high 18.1" short-depth rack chassis.

Material
Heavy-duty steel
LCD Panel
Size: 17.3"
Native Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000: 1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 25
Dot Pitch (mm): 0.1989
Display Area (mm): 381.888H x 214.812V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 15,000
Keyboard & Pointing Device
104-key keyboard with 2-button touchpad - USB
Option for trackball pointing device or SUN keyboard
Video Input
VGA + HDMI (no speaker) video input
Option for HDMI, DP, BNC, front USB hub, or 3G-SDI
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Cable
1 x 6ft DVI-D USB console cable included
Mounting Distance
18.5 ~ 27.6 inch (470 ~ 700 mm)
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption (Screen On / Power Saving): Max. 14W / Max. 2W
Option for 12V / 24V / 48V / 125V DC power input
Color
Black (RAL 9005)
Weight
23.8 lb / 10.8 kg

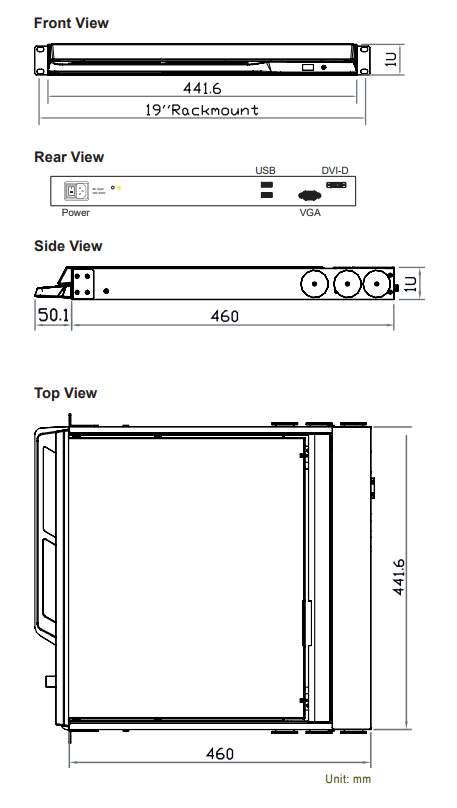

Dimension
17.4"(W) x 18.1"(D) x 1.73"(H)
* All dimensions stated are subject to change if options are selected / integrated to base model
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
FCC, CE, RoHS, TAA Compliant

KDF8170:
17.3 inch LCD rack console, 1920 x 1080 FHD resolution, VGA + HDMI (no speaker) input, 104-key keyboard with touchpad, 100/240VAC power input, 1U high 18.1 inch depth rack chassis, Black color.

Document
Description
Download Link
file iconKDF8170-SP.pdf
Spec Sheet
file iconKDF8170-UM.pdf
User Manual
  • KDF8170
    17.3" rack LCD console drawer
    Supports 1920 x 1080 Full HD resolution
    104-key keyboard with 2-button touchpad
    VGA + HDMI (no speaker) video input
    Option for HDMI 1.4 + Audio input & output / DP 1.0 / SDI input
    Option for Resistive or Projected Capacitive touch screen
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    1U high 18.1" short-depth rackmount chassis
    Starting at:
    $1,185.00
KDF8170
$1,185.00



PRODUCT DESCRIPTION
KDF8170 is a 17.3 inch rackmount LCD console drawer supporting a 1920  x 1080 Full HD industrial monitor, 300-nits brightness, 1000:1 contrast ratio, and 178° degree viewing angles. The monitor keyboard drawer comes with a 104-key keyboard with a 2-button touchpad (USB connector) and optional MAC or SUN keyboard layout. At 1U high and 18.9 inches in-depth, the rackmount drawer supports a widescreen LED backlight LCD monitor, radiating with the 16.7 million colors it contains. With mean time between failures (MTBD) of 15,000 hours, this sturdy monitor will be both long-lasting and with good viewings. KDF8170 also offers an optional Resistive 1-point or Projected Capacitive 10-point type touch screen. The built-in monitor and keyboard is cushioned by a heavy-duty steel casing, protecting from any hard operating environments. The anti-shock vibration feature, shock 10G acceleration of 11 ms duration, and vibration of 10~300Hz 0.5G RMS random vibration, also contributes to the protection in the operating environment. With the high load-rating slide rail with an angle bracket, the drawer can be slid in and out smoothly and effortlessly. The bracket already provides a long extension of 32 inches, but there is an option for an extension of up to 36 inches, offering more length to use when needed. Inside the drawer lies a monitor aforementioned and 104-keys keyboard integrated with a 2-button touchpad and a choice for a trackball also. On the backside locates a proprietary DB-15 KVM port and it comes with a 6 feet 4-in-1 KVM cable for DVI, USB, and two PS/2, and the 6 feet 4-in-1 KVM cable for VGA, USB, and two PS/2 is optional. KDF8170 can be fit according to preference, with the size and the power input. The dimensions will be varied depending on the need for a touch screen or video input or DC. The base of the measurements will be 17.4 inches in width, 18.90 inches in diameter, and 1.73 inches in height. The power supply supports an Auto-sensing 100/240 VAC power input. Option for 12V / 24V / 48V / 125V DC power input. The KDF8170 is best suitable for managing servers in data centers, server rooms, and other space-constraint environments.
