The KD9150H is a 16.2" WUXGA LCD rack console supporting 1920 x 1200 resolution, a 104-key keyboard with a 2-button touchpad, and 100/240VAC power input. The console features VGA + DVI-D + HDMI 1.4 video input, providing users with multiple options for connecting their devices. The KD9150H is integrated into a 1U rack enclosure that is designed for a standard 19" rack mount space for data centers and other IT environments
Loading...
1U 17.3

KDF8170

1U 17.3

KD80174

KD9150H

  • 16.2" WUXGA rack LCD console drawer
  • Supports 1920 x 1200 native resolution
  • VGA + DVI-D + HDMI 1.4 video input
  • 104-key keyboard with touchpad or trackball
  • Option for Resistive or Projected Capacitive touchscreen
  • Option for front USB hub, Audio, 3G-SDI input
  • Short-depth drawer design of 18.9" (480mm)
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,985.00
Availability: In stock
SKU
KD9150H
Email

16.2" 1920 x 1200 widescreen LCD monitor with VGA + DVI-D + HDMI video input and 104-key keyboard with touchpad in a 1U high 18.9" depth rackmount drawer.

Material
Heavy-duty steel
LCD Panel
Size: 16.2 inch
Native Resolution: 1920 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ.): 800:1
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 30
Dot Pitch (mm): 0.191
Display Area (mm): 343.8H x 214.9V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 20,000
Keyboard & Pointing Device
104-key keyboard with 2-button touchpad - USB
Option for keyboard with trackball or SUN keyboard
Video Input
VGA + DVI-D + HDMI
Option for front USB hub, Audio, or 3G-SDI input
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Front panel control
Power on/off switch
OSD (on screen display)
Mounting Distance
19.3~28.3 inch (490~720 mm)
Cable
1 x 6ft DVI-D USB console cable included
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 34W, Standby 4W
Option for 12V / 24V / 48V / 125V DC power input
Color
Black (RAL 9005)
Weight
24 lb / 10.9 kg

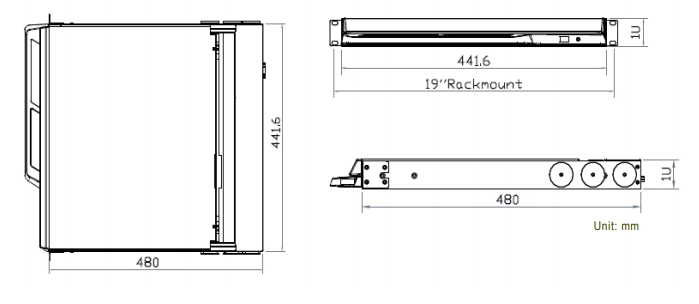

Dimension
17.4"(W) x 18.9"(D) x 1.73”(H)
* All dimensions stated are subject to change if options are selected / integrated to base model
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
FCC, CE, RoHS, TAA Compliant

KD9150H:
16.2 inch LCD rack console, 1920 x 1200 WUXGA resolution , VGA + DVI-D + HDMI video input, 104-key keyboard with touchpad, 1U high 18.9 inch depth rackmount terminal, Black color.

Document
Description
Download Link
file iconKD9150H-SP(V1-2).pdf
Spec Sheet
file iconKD9150H-UM.pdf
User Manual
  • KD9150H
    16.2" WUXGA rack LCD console drawer
    Supports 1920 x 1200 native resolution
    VGA + DVI-D + HDMI 1.4 video input
    104-key keyboard with touchpad or trackball
    Option for Resistive or Projected Capacitive touchscreen
    Option for front USB hub, Audio, 3G-SDI input
    Short-depth drawer design of 18.9" (480mm)
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $1,985.00
KD9150H
$1,985.00

PRODUCT DESCRIPTION
The KD9150H short depth rack console fitted with a 104-key keyboard, touchpad, and a 16.2 inch LCD monitor is built for space-limited environments with high graphics demand. The built-in 16.2" inch LCD panel provides 300 nits of brightness at contrast ratios of 800:1, a max resolution of 1920 x 1200, and 16.7 M color. These attributes, make it easy to see fine details in complex in high-density images. Ideal for markets requiring high-end graphic capability. The KD9150H accepts  VGA or DVI or HDMI video input signals and offers on-screen display allowing users to adjust display characteristics and select viewing options, rack console drawer features with a 104-key keyboard, touchpad with USB port connector. Measuring 1U high with 19-inch depth, KD9150H is designed for space-limited environments, This 1U monitor keyboard is housed in an all-steel enclosure that has built-in handles and ball-bearing slides that allow for smooth pull-in/out action. Also equipped with the unit is a power conserving function that allows extended monitor life cycles. It does this with an automatic switch that turns off when the unit is stowed away. To accommodate industrial applications that have harsh environmental conditions the KD9150H has been designed to withstand shock, vibration, and a wide range of operating temperatures. KD9150H comes packaged with 1 x 6-foot cable that easily connects to any application. Optional cables up to 15 feet long are also available.
