The KD8172 is a 1U 17" rackmount LCD console with supporting 1280 x 1024 native resolution, a 104-key keyboard with touchpad or trackball, VGA video input, and 100/240VAC power input in a 1U high short-depth rack mount drawer. The KD8172 is designed for industrial applications, data centers, and other IT environments.
Loading...
1U 17.3

KDF8170

KD8172

  • 17" rack LCD console drawer
  • Supports 1280 x 1024 native resolution
  • VGA video input
  • 104-key keyboard with touchpad or trackball
  • Option for Resistive or Projected Capacitive touchscreen
  • Option for HDMI, BNC, front USB hub, or 3G-SDI input
  • Short-depth drawer design of 18.1" (460mm)
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$1,086.00
Availability: In stock
SKU
KD8172
Email

17 inch 1280 x 1024 rack LCD console with VGA video input, keyboard with touchpad, 100/240VAC power supply, and a 1U high 18.1 inch depth rackmount drawer.

Material
Heavy-duty steel
LCD Panel
Size: 17 inch
Native Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000 : 1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.264
Display Area (mm): 337.92Hx 270.33V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: LED
Backlight Type: LED
MTBF (hrs): 30,000
Keyboard & touchpad
104-key keyboard with 2-button touchpad - USB port
Option for trackball pointing device or SUN keyboard
Video Input
VGA video input
Option for HDMI, Audio, BNC, front USB hub, or 3G-SDI input
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Cable
1 x 6ft DVI-D USB console cable included
Mounting Distance
18.5 ~ 27.6 inch (470 ~ 700 mm)
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 22 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V DC power input
Color
Black (RAL 9005)
Weight
26.4 lb / 12 kg

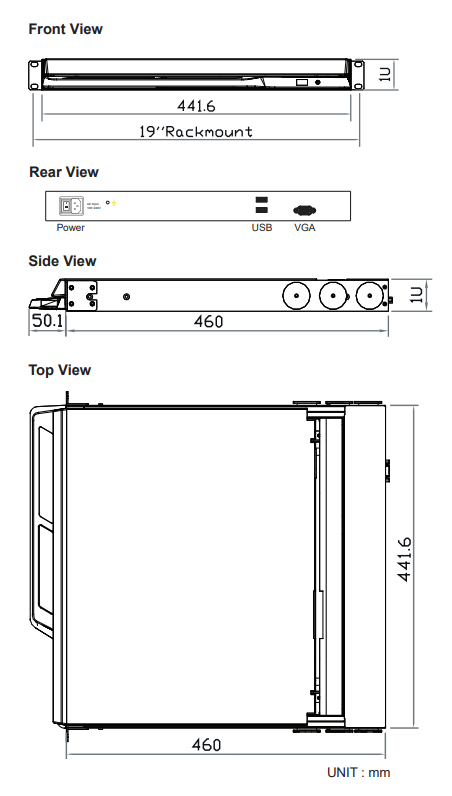

Dimension
17.4"(W) x 18.1"(D) x 1.73"(H)
* All dimensions stated are subject to change if options are selected / integrated to base model
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
FCC, CE, RoHS, TAA Compliant

KD8172:
17" LCD rack console, 1280 x 1024 native resolution, VGA video input, 104-key keyboard with touchpad, 100/240VAC power input, 1U high 18.1" depth rackmount drawer, Black color.

Document
Description
Download Link
file iconKD8172-SP(V1-2).pdf
Spec Sheet
file iconKD8172-UM(V1-2).pdf
User Manual
file iconKD8172-INST.pdf
Installation Guide
  • KD8172
    17" rack LCD console drawer
    Supports 1280 x 1024 native resolution
    VGA video input
    104-key keyboard with touchpad or trackball
    Option for Resistive or Projected Capacitive touchscreen
    Option for HDMI, BNC, front USB hub, or 3G-SDI input
    Short-depth drawer design of 18.1" (460mm)
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $1,086.00
KD8172
$1,086.00

PRODUCT DESCRIPTION
KD8172 presents a 17-inch monitor keyboard drawer of 104-key with a keypad and 1280 x 1024 industrial LCD panel. The 1U high, 18.12-inch depth rack mount drawer is built of heavy steel. The 17 inch displays a resolution of 1280 x 1024, 250-nit brightness, 1000:1 contrast ratio, and 16.7 million colors. It has an MTBF (mean time between failures) at 50,000 hours and has LED backlights. For industries requiring touch screen technology, KD8172 offers an option Resistive 1-point type touch screen wit USB port. The video input supports VGA only with option for VGA + DVI-D + HDMI + Audio or VGA + SDI input. The cable is of 6 feet 4-in-1 proprietary cable for VGA/ keyboard/ touchpad with an option for 10 feet or 15 feet KVM cable. The 104-key keyboard is integrated with a 3-button touchpad and an option for trackball is available. The design of the drawer is of high load-rating slide with angle bracket with extension up to 32-inch depth with optional extension up to 36-inch depth. The operational temperature can withstand from 32° to 131°F (0° to 50°C) and relative humidity of 5~90%, non-condensing. The shock resists at 10G acceleration (11ms duration) and vibration resists at 5~50Hz 1G RMS. The standard dimension is 17.4"(W) x 19.7"(D) x 1.73"(H) and weighs at 29 lbs.
