The KD81174 is a 17.3" rack LCD console drawer supporting DP 1.2 video input and a 104-key keyboard with touchpad in a 1U high 18.1" depth rack drawer. The display features a 4K display that supports up to 3840 x 2160 native resolution with 16.7 million colors. The KD81174 features a modular design that supports an integrated 8-port 4K KVM option for your applications. Options are available for additional video inputs, touch screen, and DC power input.
Loading...
1U 17.3

KD80174

KDF8174 17.3

KDF8174

KD81174

  • 17.3" 4K rack LCD console drawer
  • Supports 3840 x 2160 native resolution
  • Display Port 1.2 video input
  • 104-key keyboard with touchpad or trackball
  • Option for Resistive or Projected Capacitive touchscreen
  • Option for integrated 8-port 4K HDMI KVM switch
  • Short-depth drawer design of 18.1" (460mm)
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
$2,019.00
Availability: In stock
SKU
KD81174
Email
17.3" 3840 x 2160 4K rack LCD console with DP 1.2 video input, 104-key keyboard with touchpad, 100/240VAC power input, and a 1U high 18.1" short-depth chassis.
Construction
Heavy-duty steel
LCD Panel
Size: 17.3 inch
Max Resolution: 3840 x 2160@60Hz
Brightness (cd/m²): 400
Contrast Ratio (typ.) : 1000:1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.0995
Display Area (mm): 382.12H x 214.94V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 15,000
Keyboard & Pointing Device
104-key keyboard with 2-button touchpad
Option for keyboard with trackball or SUN keys
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Video Input
Display Port 1.2 video input
Option for HDMI 2.0, front USB hub, or 3G-SDI input
Integrated 8-Port 4K
KVM Switch (Option)
KVM Port: 8
Connector: HDMI 2.0 + USB-B ( Video + KB / MS )
Resolution: 16 : 9 - max. 3840 x 2160@60Hz / 16 : 10 - max. 1920 x 1200@60Hz / 4 : 3 - max. 1600 x 1200@60Hz
Local Console: 1 x local console
KVM Cables (Option)
6ft HDMI-USB KVM cable (CB-HDMI4K) or 6ft DP-USB KVM cable (CB-DP)
Speakers
Built-in dual stereo speakers
Front Panel Control
Power on/off switch
OSD (On Screen Display)
Mounting Distance
Single Console Drawer: 19.3 ~ 28.3 inch (490 ~ 720mm)
Console w/ KVM Drawer: 19.3 ~ 31.5 inch (490 ~ 800mm)
Power Supply
Input: Auto-sensing 100 to 240VAC, 50/60Hz
Consumption (Console / KVM):
Screen On: Max. 21W / Max. 38W
Power Saving Mode: Max. 2W / Max. 18W
Option for 12V / 24V / 48V / 125V DC input
Casing Color
Black front panel (RAL 9005)
Weight
Single Console: 24.7 lb / 11.2 kg
Console w/ KVM: 26.6 lb / 12.1 kg

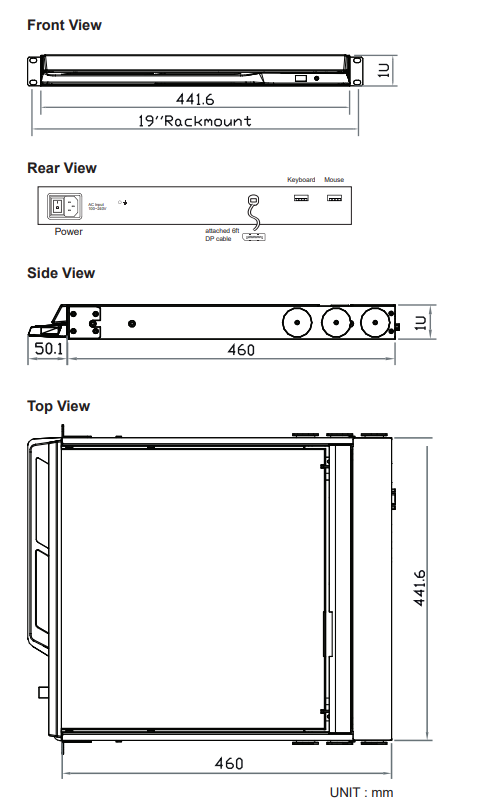

Dimension
Single Console: 17.4"(W) x 18.1"(D) x 1.73"(H)
Console w/ KVM: 17.4"(W) x 20.86"(D) x 1.73"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA

KD81174:
17.3" 4K rackmount LCD console drawer, 3840 x 2160 native resolution, Display Port 1.2 video input, 100/240VAC power input, 1U high 18.1" short-depth rackmount drawer, Black color.

Document
Description
Download Link
file iconKD81174-SP(V1-2).pdf
Spec Sheet
file iconKD81174-UM(V1-2).pdf
User Manual
  • KD81174
    17.3" 4K rack LCD console drawer
    Supports 3840 x 2160 native resolution
    Display Port 1.2 video input
    104-key keyboard with touchpad or trackball
    Option for Resistive or Projected Capacitive touchscreen
    Option for integrated 8-port 4K HDMI KVM switch
    Short-depth drawer design of 18.1" (460mm)
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    Starting at:
    $2,019.00
KD81174
$2,019.00

PRODUCT DESCRIPTION
KD81174 is a 17.3 inch 4K UHD rackmount console drawer designed for data centers, server racks, and other industrial environments. The rack console features a 4K display that supports up to 3840 x 2160 @ 60Hz native resolution with 400-nit brightness, 1000:1 contrast ratio, and 16.7M colors (8-bit). The monitor has an active area of 382.12H x 214.94 and 178° x 178° viewing angle. The console also features a 104-key keyboard with a full numerical pad and an integrated touchpad or trackball pointing device. KD81174 comes standard with one Display Port 1.2 video input and two USB ports for the keyboard & mouse. Option for DP + HDMI video input. KD81174 also features a built-in LED touch on-screen display (OSD) that provides administrators a convenient way to control the device settings (contrast, balance, horizontal position, vertical position, phase and clock, and brightness). In addition, KD81174 offers many upgrade options for different industry requirements. Options include Resistive or Projected Capacitive touch screen monitors, MAC or SUN keyboard layouts, and DC power input. With a slim design and short-depth chassis of 460mm (18.1 inches), the 17.3-inch rack console mounts only into a 1U rack space designed for a standard 19-inch rack mount cabinet. KD81174 also features a molded front handle for easy access and heavy-duty steel construction.
