Rackmount LCD console drawer with a 19 inch 1440 x 900 widescreen LED backlight LCD monitor, 104-key keyboard with touchpad, and a 1U high 22.8 inch short-depth rackmount drawer. The rack console is integrated with a 12-port DVI-D KVM switch and supports 1 x local user console. Option for DVI-D + USB KVM cable and MAC or SUN keyboard layout.
Loading...
1U 17.3

KDF81712

1U 20.1

KD82212

KDW81912

  • 19" widescreen rack LCD console drawer
  • Supports 1440 x 900 native resolution
  • 104-key keyboard with 2-button touchpad - USB
  • Integrated 12-port DVI-D KVM switch
  • 1 x local console
  • Option for 6ft or 15ft DVI-D USB KVM cables
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
  • 1U high 22.8" (580mm) depth rackmount drawer
$1,961.00
Availability: In stock
SKU
KDW81912
Email
19" 1440 x 900 widescreen rack LCD console with a 12 port DVI KVM switch and 104-key keyboard with touchpad in a 1U high 22.8" short-depth rackmount drawer.
Material
Heavy-duty steel
LCD Panel
Size: 19 inch
Native Resolution: 1440 x 900
Brightness (cd/m²): 250
Contrast Ratio (typ): 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.2835
Display Area (mm): 408.24H x 255.15V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Keyboard & pointing device
104-key keyboard with 2-button touchpad (combo free)
KVM port
Number of Ports: 12 x DVI KVM ports
Connector: DVI-D connector + USB 3.0 connector (for keyboard, mouse & audio)
KVM Usage
Advanced user profiles and configurable on screen display (OSD) & hotkey combination
Multilingual on-screen display menu
Supports eight characters password protection
Front Panel Control
Power on/off switch
OSD (on screen display)
1 x bank number LED indicator
12 x KVM ports LED indicators for on-line / Active / Remote
10 x KVM channel membrane buttons
1 x bank membrane button
Cables (Option)
Option for 6ft or 15ft DVI-D + USB KVM cables
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 55W, Standby 34W
Option for 12V / 24V / 48V / 125V DC power input
Color
Black (RAL 9005)
Weight
28 lb / 12.5 kg

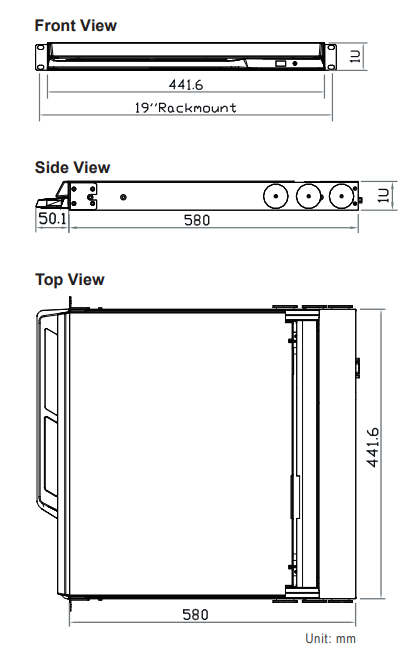

Dimension
17.4"(W) x 22.8"(D) x 1.73”(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

KDW81912:
1U 19" rack LCD console, 1440 x 900 native resolution, 12-port DVI KVM switch, 1 x local console, 100/240VAC power input, 1U 22.9 inch depth rackmount drawer, Black color.

Document
Description
Download Link
file iconKDW81912-SP(V1-2).pdf
Spec Sheet
file iconKDW81912-UM(V1-2).pdf
User Manual
  • KDW81912
    19" widescreen rack LCD console drawer
    Supports 1440 x 900 native resolution
    104-key keyboard with 2-button touchpad - USB
    Integrated 12-port DVI-D KVM switch
    1 x local console
    Option for 6ft or 15ft DVI-D USB KVM cables
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    1U high 22.8" (580mm) depth rackmount drawer
    Starting at:
    $1,961.00
KDW81912
$1,961.00

PRODUCT DESCRIPTION
KDW81912 is a 19-inch widescreen rackmount LCD monitor keyboard drawer integrated with a 12-port DVI-D KVM switch. The heavy-duty steel 1U rackmount drawer mounts into a standard 19" rackmount space and features a slim design with molded front handles for easy access. The LCD panel displays a 1440 x 900 resolution, 250nit brightness, 1000:1 contrast ratio, and 16.7 million colors. The backlight is LED and the mean time between failures is 30,000 hours. The 104-keys keyboard comes with a 2-button touchpad (combo free). The video input supports DVI-D video input. The dimension measures at 17.3"(W) x 22.9"(D) x 1.75"(H) and 33 lbs. The operational temperature can withstand from 0° to 50° C (32° to 122° F). The anti-shock resists at 10G acceleration (11ms duration). The anti-vibration resists at 5 ~ 500Hz 1G RMS random vibration. The KVM switch controls for advanced user-profiles and configurable on-screen display, hotkey combination, multi-lingual on-screen display menu, and supports eight characters password protection. The 12 x DVI KVM ports include 1x DVI, 1x USB 3.0 port for keyboard, and mouse. Option for 6ft or 15ft DVI-D + USB KVM cables.
