KD82234 1U 23.8" 4K LCD Console Drawer w/ Side Open Design

Specification

Material: Heavy-duty steel

LCD Monitor: Size: 23.8 inch
Native Resolution: 3840 x 2160
Brightness: (cd/m²) 250
Contrast Ratio (typ): 1000:1
Colors: 1.07 Billion, 10-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 25
Dot Pitch (mm): 0.13725
Display Area (mm): 527.04H x 296.46V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000

Keyboard & Pointing Device: 104-key keyboard with 2-button touchpad - USB port
Option for keyboard with trackball or SUN keys

Video Input: Display Port 1.2 video input
Option for HDMI 2.0, front USB hub, or 3G-SDI input

Integrated 8-Port 4K KVM Switch (Option): KVM Port: 8
Connector: HDMI 2.0 + USB-B ( Video + KB / MS )
Resolution: 16 : 9 - max. 3840 x 2160@60Hz / 16 : 10 - max. 1920 x 1200@60Hz / 4 : 3 - max. 1600 x 1200@60Hz
Local Console: 1 x local console

KVM Cables (Option): 6ft HDMI-USB KVM cable (CB-HDMI4K) or 6ft DP-USB KVM cable (CB-DP)

Speakers: Built-in dual stereo speakers

Front Panel Control: Power on/off switch
OSD (On Screen Display)

On Screen Display Control: Brightness, Contrast, Phase & Color, H &V position, Auto-tune, Recall & Language

Drawer Design: Pull-out drawer with side access design
KD82234: Left side open
KD82234R: Right side open

Mounting Distance: Single Console Drawer: 26.4 ~ 35.4 inch (670 ~ 900 mm)
Console w/ KVM Drawer: 26.4 ~ 38.6 inch (670 ~ 980 mm)

Cable: 2 x USB cables included for keyboard and mouse

Power Supply: Input: Auto-sensing 100 to 240VAC, 50/60Hz
Consumption (Console / KVM):
Screen On: Max. 43W / Max. 54W
Power Saving Mode: Max. 2W / Max. 18W
Option for 12V / 24V / 48V / 125V DC input

Color: Black

Weight: Single Console: 33.7 lb / 15.3 kg
Console w/ KVM: 35.4 lb / 16.1 kg

Dimension: Single Console: 17.4"(W) x 27.2"(D) x 1.73"(H)
Console w/ KVM: 17.4"(W) x 29.5"(D) x 1.73"(H)

Environmental: Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration

Compliance: CE, FCC, RoHS, TAA

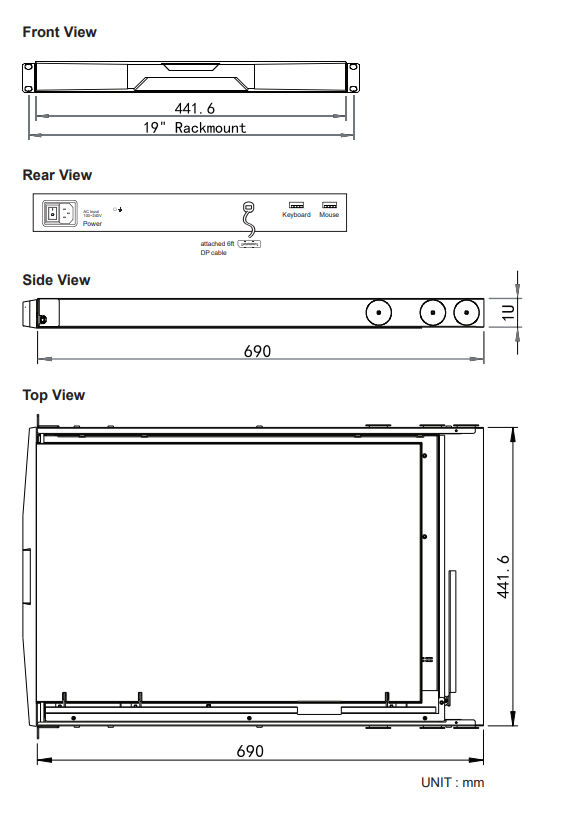

Dimensions

Order Info

KD82234:
23.8" 4K rack console drawer, 3840 x 2160 native resolution, left side open, 104-key keyboard with touchpad, DP 1.2 video input, 1U 27.2" depth rack drawer, Black color.

KD82234R:
23.8" 4K rack console drawer, 3840 x 2160 native resolution, right side open, 104-key keyboard with touchpad, DP 1.2 video input, 1U 27.2" depth rack drawer, Black color.

Downloads

Document

Description

Download Link

KD82234-SP.pdf

Spec Sheet

KD82234-UM.pdf

User Manual

Configure Now

KD82234

23.8" 4K rackmount LCD console drawer
Supports 3840 x 2160 native resolution
Display Port 1.2 video input
104-key keyboard with touchpad or trackball
Left or right side drawer open design
Option for integrated 8-port 4K HDMI KVM switch
1U high 27.2" (690mm) depth drawer design
Auto-sensing 100 to 240VAC, 50 / 60Hz power input
Option for 12V / 24V / 48V / 125V DC power input
