KCM console with 19 inch 1280 x 1024 LCD panel, keyboard, optical mouse, 12 port DVI KVM switch, 6 DVI KVM cable, 1U high and 27.6 inch depth rack mount monitor drawer. Option for 12 / 24 / 48VDC power, stereo speaker with audio input and DVI cables.
Loading...
17

MKD91712

17

KDH8170

MKD91912

  • 1U high 27.6 inch depth rack mount drawer
  • 19 inch 1280 x 1024 industrial LCD monitor
  • 104-key keyboard with wired optical mouse
  • Option for wireless optical mouse
  • DVI-D video input, option for stereo speaker
  • 12 port DVI KVM switch
  • 110/220V AC power supply, option for 12 / 24 / 48VDC power input
$1,947.00
Availability: In stock
SKU
MKD91912
Email
Monitor keyboard drawer integrated 19" LCD, keyboard, mouse and 12 port DVI KVM switch in a 1U 27.6" depth sliding drawer. Option for DC power supply and stereo speaker with audio input.
Material
Heavy-duty steel
Construction
1U high and 27.6 inch depth rack mount drawer
LCD Panel
Size: 19 inch
Resolution: 1280 x 1024
Brightness: 250
Contrast Ratio: 1000:1
Viewing Angle: 160 °(L/R), 160°(U/D)
Active area (mm): 376 x 301
Back light: CCFL
Signal input: DVI-D
Colors: 16.7M colors
MTBF: 50,000 hours
Video Input
DVI-D
Keyboard and optical mouse
104-key Keyboard with wired optical mouse
Option for wireless optical mouse
Stereo speaker (option)
2 x 2W stereo speaker with Audio input
KVM switch
Advanced user profiles and configurable on screen display (OSD) & hot key combination
Multi lingual on screen display menu
Supports eight characters password protection
KVM port
12 x DVI KVM ports (1 x DVI, 1 x USB 3.0 port for keyboard & mouse)
Front Panel Control
Power on/off switch
OSD(on screen display)
1 x bank number LED indicator
12 x KVM ports LED indicators for on-line / Active / Remote
10 x KVM channel membrane buttons
1 x bank membrane button
Cables
6 x 6-ft DVI KVM cables
Option for additional DVI KVM cables
Power supply
110/220 V AC Input, 12V 5A Output
48 Watt (max), stand by 5 Watt
Option for 48V / 24V / 12VDC power input
Color
Black (RAL 9005)
Weight
36lb

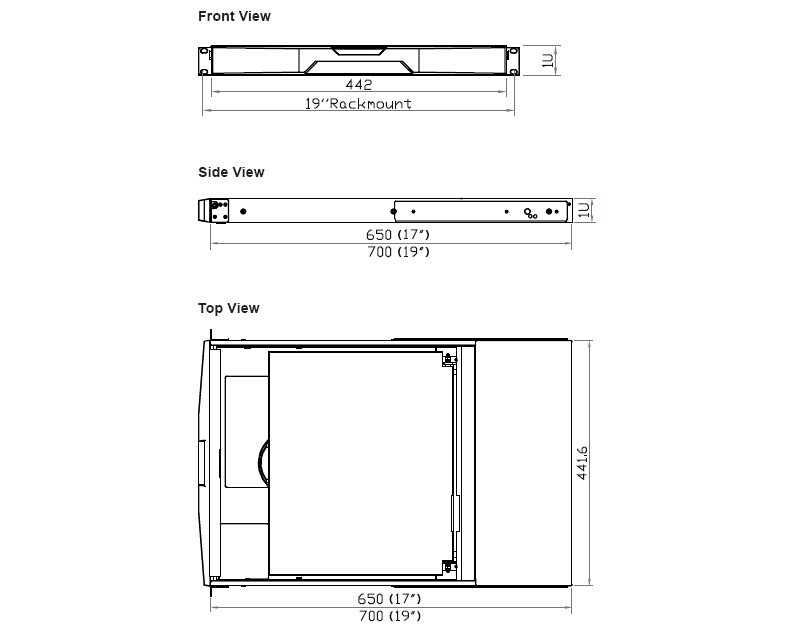

Dimension
17.4"(W) x 1.73”(H) x 27.6"(D)
Environmental
Operation Tem: 0° to 50° C (32° to 131° F)
Storage Tem: -5° to 60° C (23° to 140° F)
Shock: 10G acceleration (11ms duration)
Vibration: 5 ~ 500Hz 1G RMS random vibration
Relative Humidity: 5-90%, non-condensing
Safety
CE, FCC

MKD 91912
19 inch 1280 x 1024 LCD keyboard drawer, keyboard, touch pad, 12 port DVI KVM switch, 1U high & 27.6" depth rack mount terminal, Black color
Option for DVI KVM cable $30 each, stereo speaker with audio input, 12 / 24 / 48VDC power input

Document
Description
Download Link
file iconMKD91912-DATA.pdf
Data Sheet
file iconMKD91912-UM.pdf
User Manual
  • MKD91912
    Monitor keyboard drawer
    19" 1280 x 1024 LCD monitor
    Keyboard with mouse
    12 port DVI KVM switch
    option for wireless mouse, speaker with Auido inout
    AC power supply, option for 12 / 24 / 48VDC input
    1U high & 27.56" depth rack drawer
    Starting at:
    $1,947.00
MKD91912
$1,947.00

LCD Panel
  The 19 inch 1280 x 1024 industrial monitor comes with a DVI-D connector on the back of the rack mount drawer for your rackmount server connection. The OSD function lets you adjust the LCD monitor for the best view. All the OSD buttons are located on the front of the monitor drawer for easy access. The monitor can be tilted to a 90 degree horizontal angle. The auto-shutoff function engages whenever the monitor is returned to its resting position This allows you to save monitor life.

Keyboard   The keyboard is mounted on the front of the rackmount drawer underneath the monitor. It comes with a USB type connector on the back of the rack mount drawer for you rack mount computer connection. The slim-type (notebook size) keyboard comes with function keys and key-pad function.

Rack mount drawer
  The 1U high low profile drawer saves rack mount space and integrate an rugged monitor, keyboard and pointing device into a complete unit. The ball-bearing slide rail was mounted on the each side of the drawer that you can pull-out the drawer from the 19 inch rack cabinet. The molded front handle is installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not in use.

DVI KVM switch
  The DVI KVM switch (DVI + USB port for keyboard and input device) integrated into the keyboard drawer and provides the 12 DVI KVM ports on the back of the drawer. You can select the rack mount computers through the OSD (on screen display) menu or hot-key KVM membrane switchs (on the front of the monitor drawer). It supports hot-plug function and come standard with 6 x 6' KVM cables.

Cable for Monitor, keyboard, and pointing device
  The KVM switch come with 6 x KVM cables (1-DVI port, 1 x USB port). Option for additional KVM cable.

Power Supply
It comes with a 110/220VAC 48 Watt auto switch power adapter.

Mounting
KVM console is ready to mount into a standard 19 inch rack cabinet, the rear mounting bracket can be extended up to 36 inch deep for the rack server cabinet.
