Rackmount LCD console drawer with a 20.1 inch 1600 x 1200 widescreen industrial LCD monitor, 104-key keyboard with touchpad, and a 1U high 25.6 inch depth rackmount drawer. The rack console is integrated with an 8-port Matrix DB-15 switch and supports 2 x user consoles ( 1 x local + 1 x remote console with receiver). Option for 16-port Matrix DB-15 KVM switch, multiple user consoles, VGA + USB KVM cables, and MAC or SUN keyboard layout.
Loading...
1U 19

MKD6019M

MKD6220M

  • 1U high 25.6 inch depth rackmount drawer
  • 20.1 inch 1600 x 1200 industrial LCD monitor
  • VGA video input
  • 104-key keyboard with 2-button touchpad
  • 8-port Matrix KVM switch, option for 16-port KVM switch
  • 2 x user consoles (1 x local + 1 x remote with receiver)
  • Option for 6ft / 10ft / 15ft VGA + USB KVM cables
  • External 100/240 auto-sensing AC power input
Availability: In stock
SKU
MKD6220M
Email
20.1" 1600 x 1200 rackmount LCD console drawer with VGA video input and 8 x DB-15 port Matrix KVM switch in a 1U high 25.6" depth rackmount drawer.
Material
Heavy-duty steel
LCD Panel
Size: 20.1 inch
Max. Resolution: 1600 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ.): 800:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 408H x 306V
Colors: 16.7 M
Backlight: CCFL
MTBF (hrs): 45,000
Video Input
VGA video input
Keyboard & pointing device
104-key keyboard with 2-button touchpad (combo free)
Keyboard Layout(Option)
Option for MAC or SUN keyboard layout
KVM ports
8 / 16 x Matrix KVM ports (1 x VGA, USB or PS/2 for keyboard & mouse)
KVM Usage
Use console access server independently & simultaneously
Advanced user profiles and configurable on screen display (OSD) & hotkey combination
Multilingual on screen display menu
Supports eight characters password protection
Front panel control
Power on/off switch
OSD (on screen display)
1 x bank number LED indicator
8 / 16 x KVM ports LED indicators for on-line / Active / Remote
10 x KVM channel membrane buttons
1 x bank membrane button
Local console
1 x VGA port (resolution up to 1600 x 1200)
2 x USB ports for keyboard & mouse
Remote Console
With Receiver (Option)
Connector: 1 x DB 15-pin VGA port
Input Device: 2 x USB ports for keyboard & mouse
Remote I/O: 1 x RJ-45 port via Cat6 cable up to 150 meters
Cable: 1 x 6ft VGA + USB KVM cable for receiver box
Receiver: 1 x receiver box for remote console
IP remote console (option)
Connector: RJ45 Ethernet
User Management: 15-user login, 1 x active user
Network Protocol: DHCP / BOOTP / DNS
Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR
Browser: Internet Explorer, Firefox, Safari, Netscape
Cascade port
1 x in / out proprietary cascade KVM port
Extended up to 128 servers by 8-level cascade
Cables (Option)
Option for 6ft / 10ft / 15ft VGA + USB KVM cables
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 78W, Standby 34W
Color
Black (RAL 9005)
Weight
34.1 lb / 15.5 kg

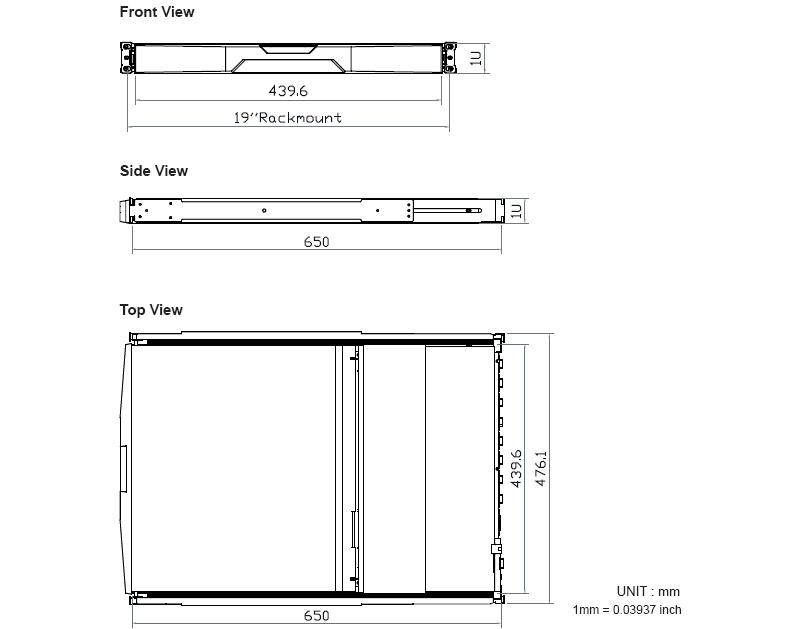

Dimension
17.4"(W) x 25.6"(D) x 1.73”(H)
Environmental
Operation Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
CE, FCC

MKD6220M:
Rackmount LCD console drawer, 20.1 inch 1600 x 1200 widescreen industrial LCD monitor, 104-key keyboard with touchpad, 8 port Matrix  DB-15 KVM switch, 2 x user consoles (1 x local + 1 x remote console with receiver), 1U high 25.6" depth rackmount terminal, Black color. Option for 16-port Matrix DB-15 KVM switch, multiple user consoles, VGA + USB KVM cables, and MAC or SUN keyboard layout.

Document
Description
Download Link
file iconMKD6220M-SP.pdf
Spec Sheet
file iconMKD6220M-UM.pdf
User Manual
  • MKD6220M
    20.1 inch 1600 x 1200 industrial LCD monitor
    VGA video input
    104-key keyboard with 2-button touchpad
    8-port Matrix KVM switch, option for 16-port KVM switch
    2 x user consoles (1 x local + 1 x remote with receiver)
    Option for 6ft / 10ft / 15ft VGA + USB KVM cables
    External 100/240 auto-sensing AC power input
    1U high 25.6 inch depth rackmount drawer
    Starting at:
MKD6220M

PRODUCT DESCRIPTION
MKD6220M is a 20.1-inch monitor keyboard drawer with 1600 x 1200 industrial LCD, 104-keys keyboard with 2-button touchpad, VGA video input, and 8 port Matrix KVM switch. The LCD panel displays a resolution of 1600 x 1200, 300-nit brightness, 800:1 contrast ratio, and 16.7 million colors. The backlight is of CCFL with a mean time between failures at 45,000 hours. There are 8 x Matrix KVM ports (one for VGA, USB or PS/2 for keyboard and mouse) with an option for a 16 port Matrix KVM switch. The Matrix KVM Switch uses a console access server independently & simultaneously. The KVM switch controls advanced user-profiles and configurable on-screen display and hotkey combination, multilingual on-screen display menu, and supports eight characters password protection. The local console consists of one VGA port (resolution up to 1600 x 1200) and two USB ports for the keyboard and mouse. There is one remote console with one receiver. There are options for 2 or 3 remote consoles with a receiver. There is one in/out proprietary cascade KVM port extended up by 8 levels cascade. With heavy-duty steel, the rack mount drawer is 1U high 25.6-inch in depth and the dimension measures at 17.4"(W) x 25.6"(D) x 1.73”(H).  The operational temperature can withstand from 0° to 55°C. The anti-shock resists at 10G acceleration (11ms duration). The anti-vibration resists at 10~300Hz 0.5G RMS random vibration. The relative humidity is tolerable from 5~90%, non-condensing. The power supply supports an auto-sensing 100 to 240VAC, 50 / 60Hz power input.
