NOTICE! : PRODUCT EOL. Please visit 2U Rackmount Computers for related products.

2U GPU server powered by Dual Xeon 4214 processors and Purley server motherboard with 4 x dual slot GPU cards, 6 x 2.5" SATA SSD/HDD, dual LAN, USB, and a 1600W 1+1 redundant power supply.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

RMC82580

RMC8404

LW201

2U rackmount computer
24.4 inch depth rack chassis
Dual Xeon 4214 processors
Purley server motherboard
4 x NVIDIA RTX 4000
256MB memory
6 x 2.5" SATA SSD/HDD
1600W redundant power supply

Availability: In stock

SKU

LW201

GPU server with Dual Xeon 4214 CPUs and Purley server motherbaord with 4 x NVIDIA RTX 4000 GPU cards in a 2U high 24.4" depth rack chassis.

Specification

Material: Heavy-duty steel

System: M/B: Purley server board
CPU: Dual Xeon 4214
Supports TDP up to 165W
Chipset: Lewisburg C620 series PCH

Memory: 6 x memory channels per CPU
16 x DIMM slots support:
DDR4 2933 (1 DIMM per channel)
DDR4 2666/2400/2133 RDIMM/LRDIMM/
LRDIMM 3DS (2DIMM per channel)

Storage: 1 x 500GB M.2 SSD
6 x 2.5" SATA SSD/HDD
4 x 2.5" U.2 NVMe

BIOS: AMI UEFI BIOS
SPI (Serial Peripheral Interface) FLASH interface

GPU: 4 x NVIDIA RTX 4000

On-Board Devices: SATA: Intel C621 PCH
IPMI: Aspeed AST2500 & Remote Management Processor
Network Controllers: I350 Ethernet Controller
Graphics: Aspeed AST2500 & Remote Management Processor

Front Panel: System power on/off, system reset, and drive activity
LED indicators for Power, LAN, & Drive

Rear I/O: 2 x GbE RJ45 LAN
1 x GbE RJ45 LAN for BMC management
2 x USB 3.0 Type A
1 x external BD-15 VGA port
TPM connector

Power Supply: 1600W 1+1 redundant 80+ Platinum

Operating System: Option for Windows 2019 or Linux (RHEL / SUSE / CentOS / Ubuntu)

Slide Rail: 26" tool-less slide rail

System Cooling: 4 x 80x38mm + 3 x 60x38mm fan with Smart Fan control

Dimension: 17.1"(W) x 3.5"(H) x 24.4"(D)

Environmental: Operating Temperature: 0ºC to 35ºC
Storage Temperature: -10ºC to 60ºC
Relative Humidity: 5%~95% non-condensing

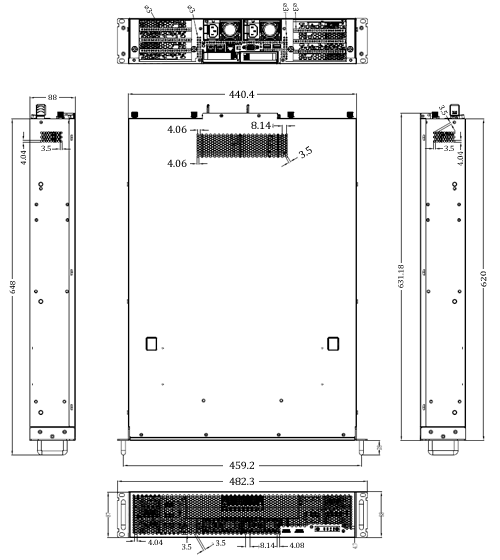

Dimensions

Order Info

LW201:
GPU server workstation, Dual Xeon 4214 processors, 4 x dual-slot GPU cards, 256MB memory, 500GB M.2 SSD, and 1600W redundant power supply in a 2U high 24.4 inch depth rackmount chassis.

Downloads

Document

Description

Download Link

LW201-SP.pdf

Spec Sheet

Configure Now

PRODUCT DESCRIPTION
A high-performance 2U 4 GPU server workstation designed to manage heavy workloads and multiple applications. LW201 is powered by the Purley motherboard and Dual Xeon 4214 processors with C620 series PCH chipset. This 2U GPU server incorporates 6 x memory channels per CPU and 16 x DIMM slots supporting DDR4 2933 ( 1 DIMM per channel) and DDR42666/2400/2133 (2 DIMM per channel). The BIOS for the system includes AMI UEFI BIOS and SPI (Serial Peripheral Interface) FLASH interface. The front panel comes with 2 x USB 3.0 ports, a power on/off button, and a system reset button. The front panel also features front LED indicators for power status, drive activity, and LAN activity. The rear I/O incorporates a 1600W redundant 80+ Platinum level power supply, 2 x USB 3.0 ports, VGA port, RJ45 port for BMC, and 2 x RJ45 ports for LAN. LW201 offers exceptional performance and versatile serial, digital, and analog I/O capabilities. The storage capacity for the server includes 1 x M.2 500GB SSD, 6 x 2.5" SATA SSD/HDD, and 4 x 2.5" U.2 NVMe. The unit is also equipped with 4 x 80x38mm + 3 x 60x38mm fans to help maintain a low system temperature, protecting it from overheating and malfunctions caused by heat.
