NOTICE: PRODUCT CURRENTLY UNAVAILABLE. PLEASE VISIT SUN MICRO RACK LCD CONSOLE FOR RELATED PRODUCTS.

Rack KVM console supporting 1280 x 1024 and 1152 x 900 display resolution with an 8 port KVM switch and Sun function keyboard designed for industrial IPC applications.
Loading...
1U 19

KDS6190

Rackmount Drawer KDS61916 Front View

KDS61916

KDS6198

  • 1U high & 24.5 inch depth rackmount drawer
  • 19 inch 1280 x 1024 industrial LCD panel
  • Supports 1152 x 900 Sun native resolution
  • 104-key keyboard with Sun function keys & 10-key keypad
  • 3-button touchpad, option for trackball
  • 8 port USB KVM switch
  • 110/220VAC power supply adapter
Availability: In stock
SKU
KDS6198
Email

19 inch 1280 x 1024 / 1152 x 900 rack LCD console with a 104-key keyboard with Sun keys, 8 port KVM switch, and a 1U high 24.5 inch depth rackmount drawer.

Material
Heavy-duty steel
Keyboard and Touchpad
SUN-compatible keyboard integrated with 3-button touchpad
Option for keyboard with trackball
LCD Panel
Size: 19"
Resolution: 1280 x 1024
Sun resolution: 1152x900
Auto switch between Sun and PC display resolution
Brightness: 300nit
Contrast Ratio: 1000 : 1
Response time: Tr=1.3ms
Display Area: 338 x 270mm
Viewing Angle: 160° Horizontal and 160° Vertical
Backlight: 4 CCFTs
Colors: 16.7M colors
MTBF: 50,000 hours
Video Input
Analog RGB, 0.7Vp-p
Plug & Play DDC
EDID 1.3
Resolution
720 x 400, 70Hz
640 x 480, 60/ 70/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75Hz
1024 x 768, 60/ 70/ 75 Hz
1152 x 864, 60/ 70/ 75Hz
1280 x 720, 60/ 75Hz
1280 x 1024, 60/ 70/ 75 Hz
1152 x 900, 66/ 76Hz
KVM Switch
8 port USB KVM switch
Connector type: proprietary DB-15 KVM connector
Cascades level: 8 levels, up to 128 servers
Resolution: 1,600 x 1,200
Supprot hot-plug cable and built-in KVM switch buttons
Multi-platform:
Mix PCs, Suns, PCs, IBMs, HPs, Compaq & DELL
O/S support:
Windows Vista/ 2003/ XP/ 2000, Linux, Netware, Unix
KVM Management
Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hot key combination: Scroll-lock, Cap-lock, Num-Lock, Alt, Ctrl & Win
Security: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hotkey
KVM switch Connector
8 x D-Sub 15 pin (female) for VGA / Keyboard /mouse
(Combo Interface, USB or PS/2)
1 x D-sub 15 pin for cascades port
Cable
8 x 6' 4-in-1 KVM cable for VGA / Keyboard /mouse
Option for 10' or 15'
KVM side: 1 x D-sub 15 pin proprietary KVM connector
Server side: 1 x D-sub 15 pin VGA and 1 x USB or 2 x PS/2 connectors
Drawer Design
High load-rating slide rail with angle bracket
Extension up to 31.1inch depth
Option for extension bracket up to 36 inch depth
Power supply
Auto-sensing 100 to 240VAC, 50/60Hz
Max. 48Watt, Standby 5W
DC Power (Option)
DC Power input with 12V, 24V, 48V selection
Color
Black
Environmental
Operating Temperature: 0ºC to 50ºC
Storage Temperature: -5ºC to 60ºC
Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 5~500Hz 1G RMS random vibration
Weight
33 lb
Safety
FCC, CE

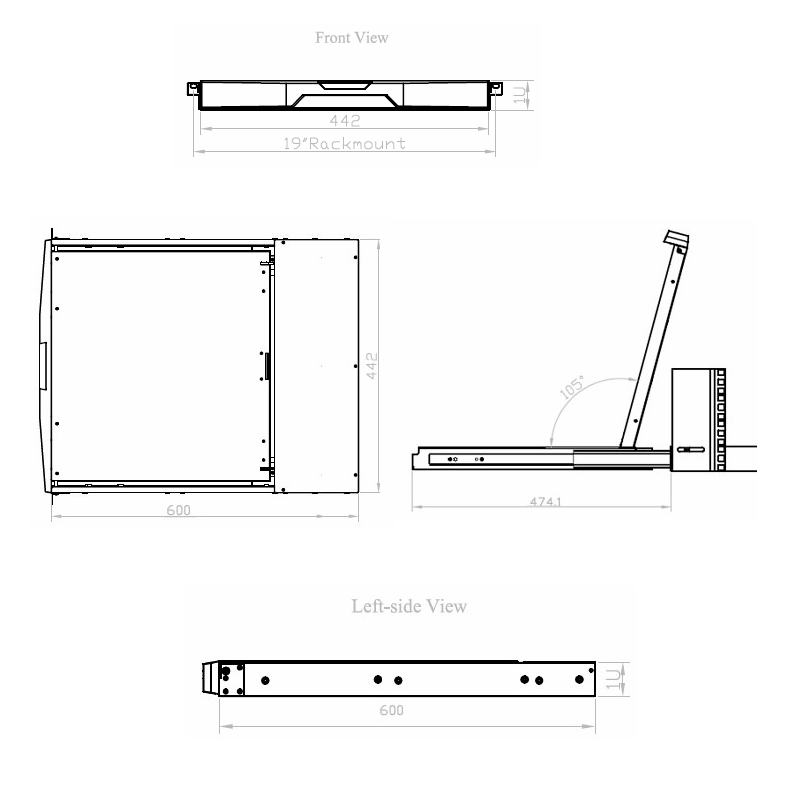

Dimension
17.4"(W) x 24.5"(D) x 1.73"(H)
monitor keyboard

KDS6198:
19-inch 1280 x 1024 / 11520 x 900 industrial LCD monitor, 104-key keyboard with Sun function keys, 3-button touchpad, 8 port DB-15 KVM switch, 8 x 6' KVM cable, 1U high rackmount drawer. Black color. Option for trackball input device.

Document
Description
Download Link
file iconKDS6198-SP.pdf
Spec Sheet
file iconKDS_6198-inst.pdf
Installation Guide
file iconKDS_6198-um.pdf
User Manual
  • KDS6198
    Rackmount LCD keyboard drawer
    19" 1280 x 1024 / 1152 x 900 LCD
    104-key keyboard with Sun keys
    3-button touchpad
    8 port Combo-free KVM switch
    1U high 25.6" depth rackmount drawer
    Starting at:
KDS6198

PRODUCT DESCRIPTION
KDS6198 of 19 inch LCD keyboard monitor drawer supporting SUN native resolution and built-in SUN function keys. The 1U compact design is of 25.6” depth. The SUN-compatible keyboard integrated with 3-button touchpad with an option for trackball. There are 101 keys with built-in Sun keys and 10-keys keypad. The LCD displays a resolution of 1280x1024 with sun native resolution of 1152x900. The brightness is 300 nit and contrast ratio is 1000:1. The backlight consists of 4 CCFTs. The mean time between failures is 50,000 hours with 16.7 million colors. The video input is analog RGB, 0.7Vp-p. The material construction is of heavy-duty steel. The drawer design is of high load-rating slide rail with angle bracket extension up to 32” depth with optional extension bracket to 36” depth. The dimension is 17.4"(W) x 24.5”(D) x 1.73"(H) and at 33 lbs. The operating temperature is from 0°C~ 50°C. There are 8 ports USB KVM switch with proprietary DB-15 KVM connector, cascades 8 levels with up to 128 servers. The resolution is 1600 x 1200. It supports hot-pluggable cable and built-in KVM switch buttons. The platforms supported are mixed PCs, SUNs, PCs, IBMs, Hps, Compaq, and DELL. It supports Windows Vista/2003/XP/2000, Linux, Netware, and Unix. There are 8 x 6’ 4-in-1 KVM cables for VGA/ keyboard/mouse with options for 10’ or 15’ cable. On the KVM side, there is 1 x D-sub 15 pin proprietary KVM connector and on the server-side, there is 1 x D-sub 15 pin VGA. The power supply is auto-sensing 100 to 240 VAC, 50/60Hz. Optional DC power input is with 12V, 24, or 48V. The connectors include 8 x D-Sub 15pin (female) for VGA/keyboard/mouse (Combo interface, USB or PS/2) and 1 x D-sub 15 pin for cascades port.
