NOTICE: PRODUCT CURRENTLY UNAVAILABLE. PLEASE VISIT SUN MICRO RACK LCD CONSOLE FOR RELATED PRODUCTS.

Rack console comes with a 19 inch 1280 x 1024 / 1152 x 900 sun native industrial monitor, 104-key keyboard with SUN function keys, 16 port DB-15 USB KVM switch, and a 1U high 24.5 inch depth rackmount drawer.
Loading...
Rackmount Drawer KDS6198 Front View

KDS6198

Monitor Keyboard Drawer KDM7170 Front View

KDM7170

KDS61916

  • 1U high & 24.5 inch depth rackmount drawer
  • 19 inch 1280 x 1024 industrial LCD monitor
  • Supports 1152 x 900 Sun native resolution
  • 104 key keyboard with Sun function keys & 10-key keypad
  • 3 button touchpad, option for trackball
  • 16 port USB KVM switch
  • 110/220VAC power supply adapter
Availability: In stock
SKU
KDS61916
Email

19 inch 1280 x 1024 / 1152 x 900 rack LCD monitor with a 104-key keyboard with Sun function keys, 16 port USB KVM switch, and a 1U high 24.5 inch depth rackmount drawer.

Material
Heavy-duty steel
Keyboard and Touchpad
SUN-compatible keyboard integrated with 3-button touchpad
Option for keyboard with trackball
LCD Panel
Size: 19 inch
Resolution: 1280 x 1024
Sun Resolution: 1152 x 900
Auto-switch between SUN and PC display resolution
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000 : 1
Response Time: Tr=1.3ms
Display Area: 338 x 270mm
Viewing Angle: 160° Horizontal and 160° Vertical
Backlight: 4 CCFTs
Colors: 16.7M colors
MTBF: 50,000 hours
Video Input
Analog RGB, 0.7Vp-p
Plug & Play DDC
EDID 1.3
Resolution
720 x 400, 70Hz
640 x 480, 60/ 70/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75Hz
1024 x 768, 60/ 70/ 75 Hz
1152 x 864, 60/ 70/ 75Hz
1280 x 720, 60/ 75Hz
1280 x 1024, 60/ 70/ 75 Hz
1152 x 900, 66/ 76Hz
KVM Switch
16 port USB KVM switch
Connector type: proprietary DB-15 KVM connector
Cascades level: 8 levels, up to 128 servers
Resolution: 1,600 x 1,200
Support hot plug cable and built-in KVM switch buttons
Multi-platform:
Mix PCs, Suns, PCs, IBMs, HPs, Compaq & DELL
O/S support:
Windows Vista/ 2003/ XP/ 2000, Linux, Netware, Unix
KVM Management
Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hot key combination: Scroll-lock, Cap-lock, Num Lock, Alt, Ctrl & Win
Security: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hot key
KVM switch Connector
16 x D-Sub 15 pin (female) for VGA / Keyboard /mouse
(Combo Interface, USB or PS/2)
1 x D-sub 15 pin for cascades port
Cable
16 x 6' 4-in-1 KVM cable for VGA / Keyboard /mouse
Option for 10' or 15'
KVM side: 1 x D-sub 15 pin proprietary KVM connector
Server side: 1 x D-sub 15 pin VGA and 1 x USB or 2 x PS/2 connectors
Drawer Design
High load-rating slide rail with angle bracket
Extension up to 31.1” depth
Option for extension bracket up to 36" depth
Power supply
Auto-sensing 100 to 240VAC, 50/60Hz
Max. 48Watt, Standby 5W
DC Power (Option)
DC Power input with 12V, 24V, 48V selection
Color
Black
Weight
33 lb
Dimension

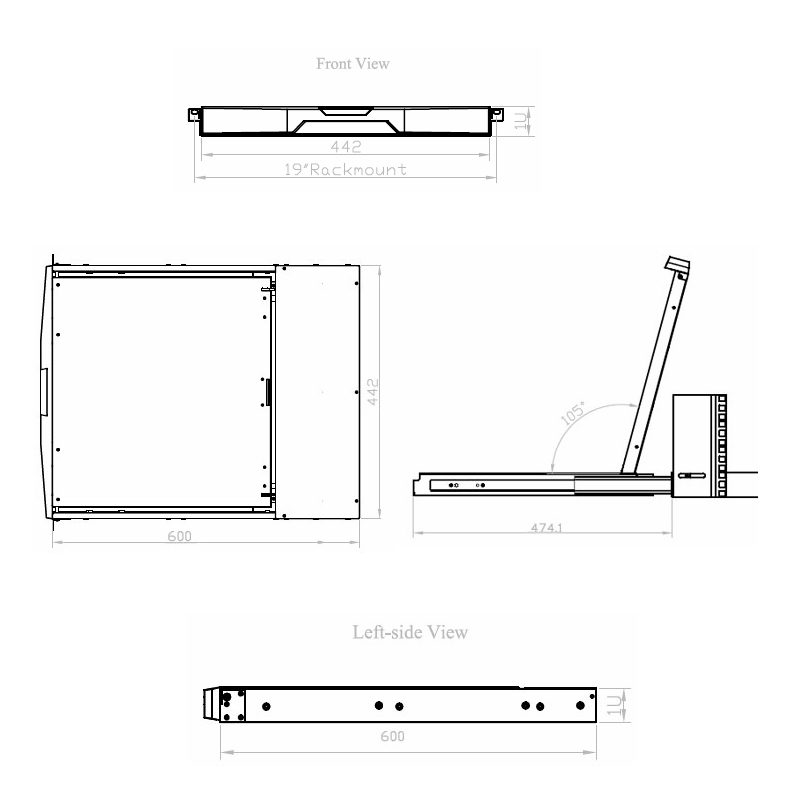

17.4"(W) x 24.5"(D) x 1.73"(H)
Environmental
Operating Temperature: 0ºC to 50ºC
Storage Temperature: -5ºC to 60ºC
Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 5~500Hz 1G RMS random vibration
Safety
FCC, CE
