Rack console comes with a 17 inch 1280 x 1024 LCD monitor, 106-key keyboard with touchpad, two independent slide-rails for LCD display, and a 100/240VAC power supply in a 1U high 17.7 inch short-depth rackmount drawer.
Loading...
Rackmount Drawer KDS61916 Front View

KDS61916

1U 17.3

KD9176

KDM7170

  • 1U high LCD keyboard drawer
  • 17.7 inch short depth chassis
  • 17 inch 1280 x 1024 LCD panel
  • OSD (On Screen Display) function
  • 106-key keyboard with touch pad
  • Tempered glasses to protect LCD display
  • Support Sun native resolution
  • 2 x independent slide-rails for LCD display & keyboard
  • 100/240VAC power supply
$850.00
Availability: In stock
SKU
KDM7170
Email
LCD keyboard drawer, 17 inch 1280 x 1024 LCD with tempered glass, 106-key keyboard and touch pad, 1U high & 17.7" short depth drawer with dual slide rail.
Material
Heavy-duty steel
Keyboard and touchpad
106-key keyboard with touchpad
LCD Panel
Size: 17"
Max. Resolution: 1280 x 1024 (SXGA)
(Supports SUN native resolution)
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Pixel Pitch (mm): 0.264(H) x 0.264(V)
Viewing Angle: 170°(L/R),160°(U/D)
Response Time: Rising Time 3.8 ms, Decay Time 1.2ms
Backlight: 2 x CCFTs
Colors: 16.7M colors
(Panel protected by tempered glass)
On Screen Control
OSD Control Brightness, Contrast, Phase & Color, Horizontal & Vertical position, Auto-tune & Recall
Video input
Video Synchronization: 45KHz - 80KHz
Touch Screen (Optional)
USB or RS232
Connectors
1 x VGA HDDB 15-pin
2 x PS/2 Mini Din 6-pin
1 x AC Inlet
Front control
OSD menu buttons
Power ON/OFF switch
Keyboard Language
US (standard)
Option for UK, German, French, Spanish, Italian, Portuguese, Dutch,
Swiss, Belgium, Swedish, Norwegian, Danish Japanese, Mandarin, Russian, Hebrew
Drawer Design
1U low profile
Dual slide rail for independent monitor and keyboard/touchpad trays
Hidden handle for keyboard/touchpad tray
Operating System
Dos, Unix, Linux, OSX, Windows (XP, 7, 8, Server 2012 R2)
Power supply
100~240VAC 50/60Hz external power adapter
Color
Black
Gross Weight
26.5lb
Dimension
17.7"(W) x 17.5 ”(D) x 1.7"(H)
Environmental
Operating Temperature:0°~ 50°C / 32°~ 122°F
Storage Temperature:-20°~ 60°C / -4°~ 140°F
Humidity: 10% ~ 90% RH
Safety
CE/FCC, UL/CUL certificated

KDM7170:
LCD keyboard drawer, 17 inch industrial panel, 106-keyboard with touchpad, dual slide rail, 1U high & 17.7" depth rackmount drawer, Black color.

Document
Description
Download Link
file iconKDM7170-DATA.pdf
Data Sheet

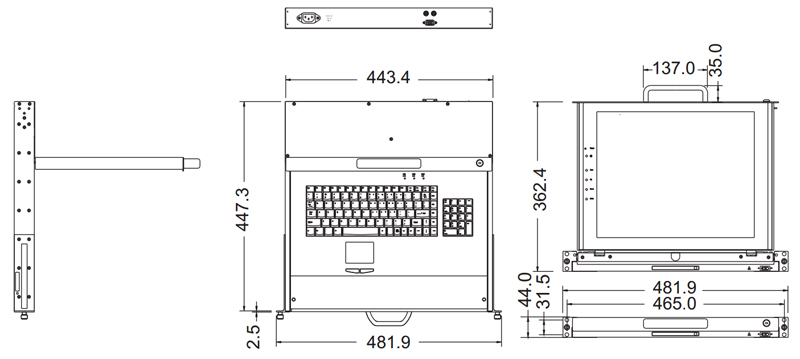

file iconKDM7170-DIM.pdf
Dimension
file iconKDM_7170-inst.pdf
Installation Guide
file iconKDM_7170-um.pdf
User Manual
KDM7170
$850.00

PRODUCT DESCRIPTION
The 17-inch (1280x1024) LCD panel is a TFT active type digital to digital which connects to the onboard conversion board. The LCD monitor comes with standard DVI connector on the back of the rackmount drawer for your pc system connection. The OSD function lets you adjust the LCD monitor for the best view. All the OSD buttons are located on the front of the LCD monitor for easy access. The monitor can be tilted to a 110 degree horizontal angle. The auto-shutoff function enables whenever the monitor drawer is returned to its resting position. This allows you to save LCD monitor life. The tempered glass is added on the front of the 17-inch LCD monitor to prevent impact damage to the LCD monitor. Optional for resistive-type touch screen with either USB port or RS 232 port connector. The 106-key keyboard and touch-pad mounted on the front of the rackmount drawer underneath the LCD monitor. Both of them come with one DVI, two USB and one AC Inlet connector on the back of the rackmount drawer for you pc system connection. The 106-key keyboard comes with touch pad function. The low profile 1U drawer saves on rack space and integrates an LCD monitor, keyboard and pointing device into a complete unit. The dual ball-bearing slide rails are mounted on each side of the drawer that enables you to pull-out the LCD monitor or keyboard/touchpad drawer separately from the 19" rack cabinet. The key-lock is installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not in use. The monitor keyboard drawer is ready to mount into the standard 19" rack cabinet.
