Sunlight readable rackmount console drawer with a 17 inch 1280 x 1000-nit high brightness LED backlight LCD panel, VGA video input, 104-key keyboard with touchpad, and a 1U high 18.9 inch depth rackmount drawer. Option for DVI-D / HDMI / Audio / SDI input, Resistive type touch screen, front USB hub, MAC or SUN keyboard layout, and DC power input.

Skip to the beginning of the images gallery

KDH8190

KDH8170

1U high 18.9 inch depth rackmount drawer
17 inch 1280 x 1024 industrial LED backlight LCD panel
1000 nits high brightness display
VGA video input, option for DVI-D / HDMI / Audio / SDI input
Option for Resistive 1-point type touch screen
104-key keyboard with 2-button touchpad
External 100/240 auto-sensing AC power input
Option for 12V / 24V / 48V / 125V DC power input

Availability: In stock

SKU

KDH8170

17" 1280 x 1024 sunlight readable LCD monitor keyboard drawer with VGA video input and 104-key keyboard with touchpad in a 1U high 18.9" depth rackmount drawer.

Specification

Material: Heavy-duty steel

LCD Monitor: Size: 17 inch
Resolution: 1280 x 1024
Brightness (cd/m²): 1000
Contrast Ratio (typ): 1000 : 1
Display Area (mm): 337.92H x 270.33V
Viewing Angle (H/V): 170° x 160°
Color: 16.7M
Backlight: LED
MTBF (hrs): 50,000

Video input: VGA video input
Option for VGA + DVI-D + HDMI + Audio or VGA + SDI input

Keyboard & Pointing Device: 104-key keyboard with 2-button touchpad

Keyboard Layout (Option): Option for MAC or SUN keyboard layout

Touch Scren (Option): Option for Resistive type touch screen - USB

Drawer design: High load-rating slide rail with angle bracket
Extension up to 32” depth
Option for extension bracket up to 36" depth

Cable: 1 x 6 feet 4-in-1 proprietary cable for VGA / Keyboard / Touchpad
Option for 10 feet or 15 feet KVM cable

Color: Black (RAL 9005)

Power Supply: Input: Auto-sensing 100 to 240VAC, 50/60Hz
Power Consumption: Max. 30W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input

Weight: 27.5 lb / 12.5 kg

Dimension: 17.4"(W) x 18.9"(D) x 1.73"(H)
Casing depth will increase if touch screen, video input, or DC power option is selected

Environmental: Operating Temperature: 0°C to 55°C
Storage Temeprature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration

Safety: FCC, CE

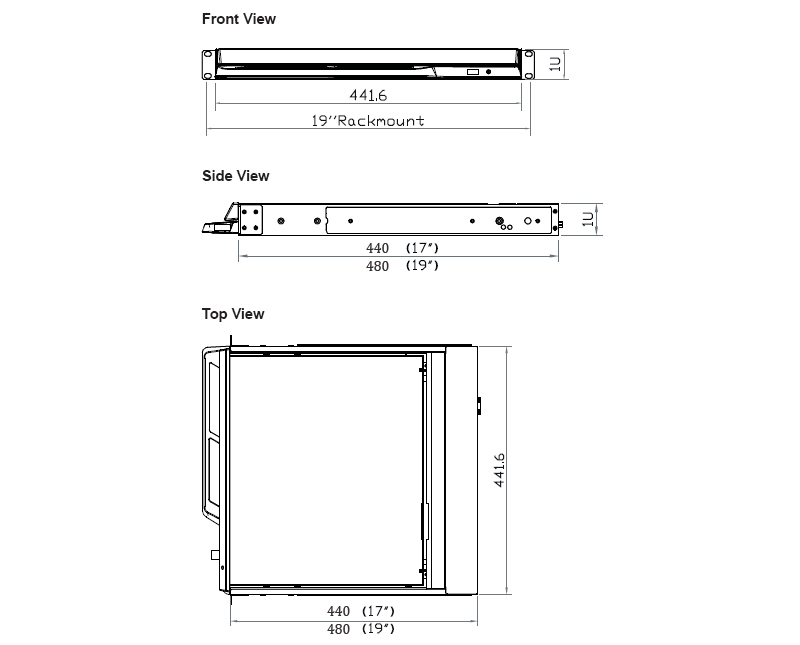

Dimensions

Order Info

KDH8170:
Sunlight readable rackmount console drawer, 17 inch 1280 x 1024 1000-nits high brightness LCD panel, VGA video input, 104-key keyboard with touchpad, 1U high 18.9 inch depth rackmount drawer. Option for DVI-D / HDMI / Audio / SDI input, Resistive type touch screen, front USB hub, MAC or SUN keyboard layout, and DC power input.

Downloads

Document

Description

Download Link

KDH8170-SP.pdf

Spec Sheet

KDH8170-UM.pdf

User Manual

Configure Now

PRODUCT DESCRIPTION
KDH8170 of 17 inch LCD keyboard monitor drawer supporting 1000-nit high brightness. The 1U compact design is of 17.3” depth. The LCD displays a resolution of 1280x1024 and the contrast ratio is 1000:1. The backlight consists of an LED. The mean time between failures is 50,000 hours with 16.7 million colors. The 104 keys keyboard is integrated with a 3-button touchpad with an option for trackball. The video input supports VGA input with optional VGA + DVI-D + HDMI + Audio or VGA + SDI input.The material construction is of heavy-duty steel. The drawer design is of high load-rating slide rail with angle bracket extension up to 32” depth with optional extension bracket to 36” depth. The dimension is 17.4"(W) x 17.3"(D) x 1.73"(H) and if with the optional touch screen it will be 17.4"(W) x 25.6"(D) x 2.63"(H). The weight is 26 lbs. The operating temperature is from 0°C~ 50°C. The shock vibration resists at 5~500Hz 1G RMS at random vibration and shock vibration at 10G acceleration (11ms duration). The power supply is auto-sensing 100 to 240 VAC, 50/60Hz. Option 12V / 24V / 48V / 125V DC power input. The cable includes 1 x 6 feet 4-in-1 proprietary cable for VGA /keyboard/touch-pad with optional for 10 feet or 15 feet KVM cable
