NOTICE: PRODUCT EOL. PLEASE VISIT 17" RACK LCD CONSOLES FOR RELATED PRODUCTS.

The KD9176 is a 17.3" Full HD 1U rackmount keyboard console with VGA + DVI input. The console combines a keyboard, a touchpad, and an LCD monitor into a slim and rugged aluminum housing for durability. The display is hinged so it can be titled to the most comfortable viewing position. The LCD folds down on top of the keyboard when recessed into the drawer.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

KDM7170

KD81912

KD9176

1U 17.3" rackmount LCD console drawer
Supports 1920 x 1080 Full HD resolution
Built-in keyboard with touchpad
VGA + DVI video input
2W amplified stereo speakers
OSD (On Screen Display) function
Slim, rugged aluminum housing fit in short-depth rack or cabinet
Keylocking mechanism to prevent unauthorized access
60W 100 to 240VAC full range power supply

Availability: In stock

SKU

KD9176

17.3 inch rack console with a 1920 x 1080 LED LCD monitor, keyboard and touchpad, and VGA + DVI video input in a 1U high 14.5 inch depth rackmount drawer.

Specification

Material: Heavy-duty steel

LCD Panel: Size: 17.3 inch LED-backlight LCD (16:9)
Max. Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio: 400:1
Pixel Pitch: 0.098mm (H) x 0.294mm (W)
Viewing Angle: Right-left view: 65° ~ 65° (typical) / Up-down View: 45° ~ 45° (typical)
Response Time: 8ms
Colors: 262K

Keyboard & Touchpad: 104-key keyboard and touchpad
PS/2 or USB type selected by KVM cable

Plug & play: EDID 1.3

Video Input: VGA + DVI video input

Stereo speaker: 2W amplified stereo speakers

OSD (On screen display): 5 x OSD menu buttons for Brightness, Contrast, Phase & Color, H & V position,
Auto-tune, Recall & Language

Connectors: 1 x D-Sub 15 pin (female) for VGA
2 x PS/2 port for Keyboard/Touchpad
1 x Audio out for Built-in speaker

Cables: 1 x 6’ KVM cable (PS/2 type) or 1 x 6’ KVM cable (USB type)

Security Lock: 2 x thumb-lock screws for system security

Drawer Design: High load-rating slide rail with angle bracket extension up to 24” depth

Power Supply: 60W 100-240V full-range power supply

Color: Black

Weight: 20 lb / 9.07 kg

Dimension: 19"(W) x 14.5"(D) x 1.7"(H)

Environmental: Operating Temperature: 0°C to 55°C (32°F to 131°F)

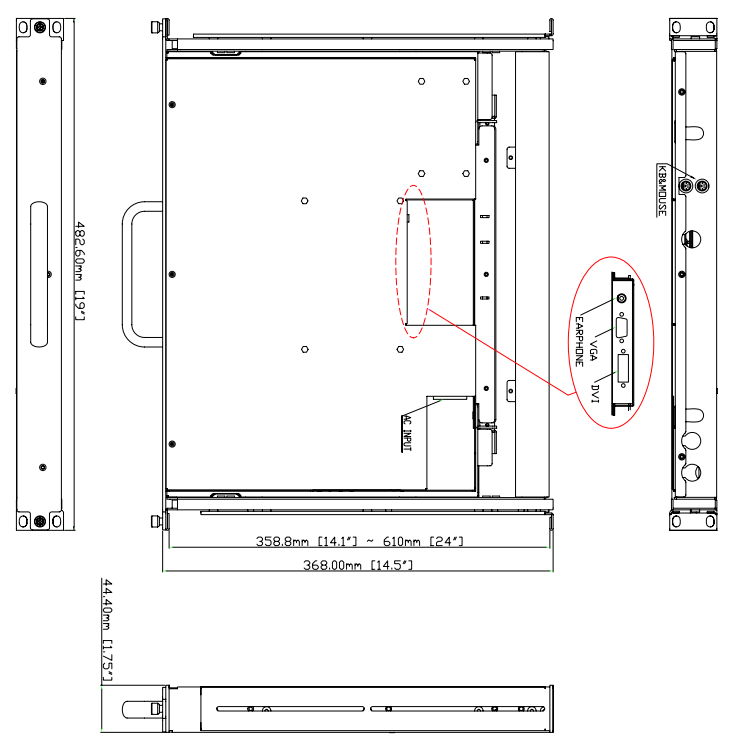

Dimensions

Order Info

KD9176:
17.3 inch LCD rack console, 1920 x 1080 FHD resolution, VGA + DVI input, keyboard with touchpad, amplified stereo speakers, 100/240V power supply, 1U high 14.5 inch depth rack chassis, Black color.

Downloads

Document

Description

Download Link

KD9176-SP.pdf

Spec Sheet

KD9176-DIM.pdf

Dimension

Configure Now

PRODUCT DESCRIPTION:
The KD9176 is a heavy-duty steel rack console containing a widescreen 17.3-inch 16:9 LED monitor keyboard drawer with thumb-lock screws securing. This 1U high and 14.5-inch depth rack mount drawer features a 1920 x 1080 LED LCD monitor with 104-keys slim-type keyboard with a touchpad. The full HD displays luminous colors and the LED backlight warrants bright and clear images, energy efficiency, and is long-lasting. The on-screen display menu is easily adjusted in the front with five menu buttons for brightness, contrast phase and color, H-position, V-position, auto-tune, recall, and language. Fitting into compact spaces is no obstacle for KD9176 as its dimension of 1.7 inches in height, 19 inches in width, and 14.5 inches in diameter can easily be mounted on slim surfaces. The control terminal is built of heavy-duty steel ensuring it to be strong and durable, protecting from any harsh operating environment. Its drawer design ability allows a high load-rating slide rail with angle bracket to effortlessly and efficiently slide the keyboard drawer in and out. It comes with an extension of up to 24-inch depth, tolerating extra length use if needed. The drawer also has two thumb-lock screws for system security lock safeguarding the unit during motion. KD9176 can satisfy preferences with the option of using PS/2 or USB keyboard and touchpad. With either of the options, it provides a 6 inch KVM cable. Along with the KVM cable, it also has an audio out. The video input likewise has two options, VGA or DVI-D. As for the connectors, it has one D-Sub 15 pin (female) for VGA or DVI-D for digital video signal input, two PS/2 or USB ports for keyboard and touchpad, and one audio out for built-in speaker. For an added touch, the 2W amplified stereo speakers will project great sound quality. This is all powered by a 110/220VAC 80w auto-switch external power adapter, maintaining a stable power supply.

FEATURES:
- 1U high and 14.5 short depth heavy-duty steel monitor keyboard drawer
- 17.3 inch 1920 x 1080 LED LCD monitor
- VGA or DVI-D video input
- 104-keys keyboard with touchpad (option for USB or PS/2 type)
- 2W amplified stereo speakers
