Rackmount LCD console drawer with 17.3 inch 3840 x 2160 4K industrial LCD monitor, 104-key keyboard with touchpad, 8-port 4K KVM switch, and 1U high 22.8 inch depth rackmount drawer. Option for 6ft HDMI + USB KVM cable or 6ft DP + USB KVM cable and MAC or SUN keyboard layout.
Loading...

KD84174

  • 1U 22.8" short depth rackmount drawer
  • 17.3 inch 3840 x 2160 4K industrial LCD panel
  • 104-key keyboard with 2-button touchpad
  • 8-port 4K KVM switch with 1 x local console
  • 8 x HDMI 2.0 + USB-B ports
  • Option for 6ft HDMI + USB KVM cable or 6ft DP + USB KVM cable
  • Slim short depth design ideal for open rack or short depth rack
  • Auto-sensing 100 to 240VAC, 50 / 60H power input
Availability: In stock
SKU
KD84174
Email

17.3" 3840 x 2160 4K rack LCD console with an 8-port 4K KVM switch, 104-key keyboard with 2-button touchpad, and a 1U high 22.8" depth rackmount drawer.

Material
Heavy-duty steel
LCD Panel
Size: 17.3 inch
Resolution: 3480 x 2160
Brightness (cd/m²): 400
Contrast Ratio (typ.): 1000:1
Display Area (mm): 382.12H x 214.94V
Viewing Angle (H/V): 178° x 178°
Dot Pitch (mm): 0.0995
Backlight: LED
Colors: 16.7M, 8-bit
MTBF (hrs): 15,000
Video Input
HDMI 2.0
Keyboard & pointing device
104-key keyboard with 2-button touchpad
Keyboard Layout (Option)
Option for MAC or SUN keyboard layout
KVM Port
Number of Ports: 8
Connector: HDMI 2.0 + USB-B ( Video + KB / MS )
Resolution: 16 : 9 – 3840 x 2160 @ 60Hz
16 : 10 – 1920 x 1200 @ 60Hz
4 : 3 – 1600 x 1200 @ 60Hz
Front Panel Control
Power on/off switch
OSD (on-screen display)
KVM Usage
Front button & keyboard hotkey
Compatibility
Hardware: HP / IBM / Dell PC, Server and Blade Server, SUN / MAC
OS Support: Windows / Linux / Unix / Mac OS
KVM Cable (Option)
Option for 6ft HDMI + USB KVM cable or 6ft DP + USB KVM cable
Drawer Design
High load-rating slide rail
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 38W, Standby 18W
Color
Black
Weight
20.9 lb / 9.5 kg

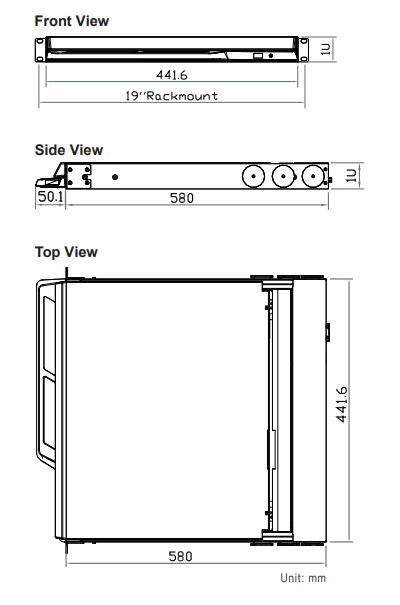

Dimension
17.4”(W) x 22.8”(D) x 1.73”(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
CE, FCC, RoHS2

KD84174:
Rackmount LCD console drawer, 17.3 inch 3840 x 2160 4K industrial LCD monitor, 104-key keyboard with touchpad, 8-port 4K KVM switch, 1U high 22.8 inch depth rackmount drawer, Black color. Option for 6ft HDMI + USB KVM cable or 6ft DP + USB KVM cable and MAC or SUN keyboard layout.

Document
Description
Download Link
file iconKD84174-SP(V1-2).pdf
Spec Sheet
file iconKD84174-UM(V1-2).pdf
User Manual
  • KD84174
    17.3 inch 3840 x 2160 4K industrial LCD panel
    104-key keyboard with 2-button touchpad
    8-port 4K KVM switch with 1 x local console
    8 x HDMI 2.0 + USB-B ports
    Option for 6ft HDMI + USB KVM cable or 6ft DP + USB KVM cable
    Slim short depth design ideal for open rack or short depth rack
    Auto-sensing 100 to 240VAC, 50 / 60H power input
    1U 22.8" short depth rackmount drawer
