KVM rack console with a 20.1 inch 1600 x 1200 industrial LCD monitor, front OSD functions, and a 1U slim design with a molded front handle. The rack console is integrated with a 12-port DVI-D KVM switch that provides easy installation and streamlined access to servers and systems. Option for 6ft or 15ft DVI-D + USB KVM cables.
Loading...
1U 19

KDW81912

KD82212

  • 20.1" rack LCD console drawer
  • Supports 1600 x 1200 native resolution
  • 104-key keyboard with 2-button touchpad - USB
  • Integrated 12-port DVI-D KVM switch
  • 1 x local console
  • Option for 6ft or 15ft DVI-D USB KVM cables
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
  • 1U high 25.6" (650mm) depth rackmount drawer
$2,807.00
Availability: In stock
SKU
KD82212
Email

20.1" 1600 x 1200 industrial LCD monitor with 12-port DVI-D KVM switch, 104-key keyboard with touchpad, and 100/240VAC power input in a 1U high 25.6" depth rackmount drawer.

Material
Heavy-duty steel
LCD Panel
Size: 20.1 inch
Native Resolution: 1600 x 1200
Brightness (cd/m²): 300
Contrast Ratio (typ.): 800:1
Colors: 16.7 M
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.255
Display Area (mm): 408H x 306V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Blacklight: CCFL
MTBF (hrs): 45,000
Keyboard & pointing device
104-key keyboard with 2-button touchpad (combo free)
KVM port
Number of Ports: 12 x DVI KVM ports
Connector: DVI-D connector + USB 3.0 connector (for keyboard, mouse & audio)
KVM Usage
Advanced user profiles and configurable on screen display (OSD) & hotkey combination
Multilingual on screen display menu
Supports eight characters password protection
Front Panel Control
Power on/off switch
OSD (on screen display)
1 x bank number LED indicator
12 x KVM ports LED indicators for on-line / Active / Remote
10 x KVM channel membrane buttons
1 x bank membrane button
Compatibility
Hardware: HP / IBM / Dell PC, Server and Blade Server, SUN / Mac
OS Support: Windows / Linux / Unix / Mac OS
Cables (Option)
Option for 6ft or 15ft DVI-D + USB KVM cable
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 78W, Standby 34W
Color
Black (RAL 9005)
Weight
34.1 lb / 15.5 kg

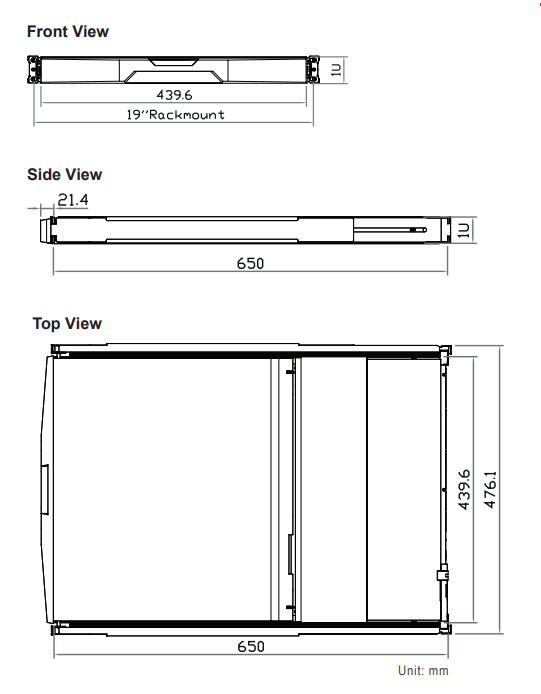

Dimension
17.3"(W) x 25.6"(D) x 1.73”(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

KD82212:
1U 20.1" rack LCD console drawer, 1600 x 1200 native resolution, 104-key keyboard with touchpad, 12-port DVI-D KVM switch, 100/240VAC power input, 1U 25.6" depth rackmount drawer, Black color.

Document
Description
Download Link
file iconKD82212-SP(V1-2).pdf
Spec Sheet
file iconKD82212-UM(V1-2).pdf
User Manual
