Rackmount LCD console drawer with a 19 inch 1280 x 1024 industrial LCD monitor, 104-key keyboard with touchpad, 12-port DVI-D KVM switch, and a 1U high 24.4 inch depth rackmount drawer. The rack console features a slim design with molded front handle, configurable on-screen display (OSD), and hotkey combination. Option for 6ft or 15ft DVI-D + USB KVM cables and MAC or SUN keyboard layout.
Loading...
1U 17

KD81712

KD81912

  • 19" rack LCD console drawer
  • Supports 1280 x 1024 native resolution
  • 104-key keyboard with 2-button touchpad - USB
  • Integrated 12-port DVI-D KVM switch
  • 1 x local console
  • Option for 6ft or 15ft DVI-D USB KVM cables
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
  • 1U high 24.4" (620mm) depth rackmount drawer
$1,951.00
Availability: In stock
SKU
KD81912
Email
19" 1280 x 1024 rackmount LCD keyboard drawer with 12-port DVI-D KVM switch and 104-key keyboard with touchpad in a 1U high 24.4" depth rackmount sliding drawer.
Material
Heavy-duty steel
LCD Monitor
Size: 19 inch
Native Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio: 1000:1
Colors: 16.7 M
Viewing Angle (H/V): 170° x 160°
Response Time (ms): 5
Dot Pitch (mm): 0.294
Display Area (mm): 376.32H x 270.33V
Surface Treatment: Haze 25%, Hard-coating
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 30,000
Keyboard & pointing device
104-key keyboard with touchpad (combo free)
KVM port
Number of Ports: 12 x DVI KVM ports
Connector: DVI-D connector + USB 3.0 connector (for keyboard, mouse & audio)
KVM Usage
Advanced user profiles and configurable on screen display (OSD) & hotkey combination
Multilingual on screen display menu
Supports eight characters password protection
Front Panel Control
Power on/off switch
OSD (on screen display)
1 x bank number LED indicator
12 x KVM ports LED indicators for on-line / Active / Remote
10 x KVM channel membrane buttons
1 x bank membrane button
Compatibility
Hardware: HP / IBM / Dell PC, Server and Blade Server, SUN / MAC
OS Support: Windows / Linux / Unix / Mac OS
Cables (Option)
Option for 6ft or 15ft DVI-D + USB KVM cable
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 55W, Standby 34W
Color
Black (RAL 9005)
Weight
30.1 lb / 13.7 kg

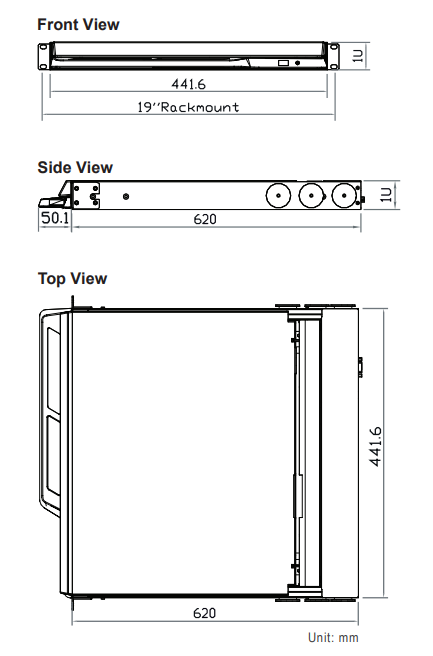

Dimension
17.4"(W) x 24.4"(D) x 1.73”(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
FCC, CE, RoHS, TAA Compliant

KD81912:
1U 19" rack LCD console, 1280 x 1024 native resolution, 104-key keyboard with touchpad, 12-port DVI-D KVM switch, 1U high 24.4" depth rackmount terminal, Black color.

Document
Description
Download Link
file iconKD81912-SP(V1-2).pdf
Spec Sheet
file iconKD81912-UM(V1-2).pdf
User Manual
  • KD81912
    19" rack LCD console drawer
    Supports 1280 x 1024 native resolution
    104-key keyboard with 2-button touchpad - USB
    Integrated 12-port DVI-D KVM switch
    1 x local console
    Option for 6ft or 15ft DVI-D USB KVM cables
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Option for 12V / 24V / 48V / 125V DC power input
    1U high 24.4" (620mm) depth rackmount drawer
