NOTICE: PRODUCT EOL. PLEASE VISIT DUAL & TRIPLE DISPLAY RACK LCD CONSOLES FOR RELATED PRODUCTS.
Rack console with dual 17.3 inch 1920 x 1080 full HD LCD monitors, 104-key keyboard with touchpad, dual slide rail design, DP (Primary) + HDMI (Secondary) video input, AR glass, and 100/240VAC power input.
KD8173TD
- 2U dual-LCDs rack console
- Dual 17.3 inch 1920 x 1080 industrial LCD panel
- Supports FHD with 1080P resolution
- DP (Primary) + HDMI (Secondary) video port
- AR glass & built-in speakers
- 104-key keyboard with touchpad (USB)
- Aluminum housing with dual slide rail design
- Wide range 100/240VAC power input
Availability:
In stock
SKU
KD8173D
2U dual-LCD rack console comes with dual 17.3" 1920 x 1080 full HD LCD panels, 104-key keyboard with touchpad, DP + HDMI video input, and 100/240VAC power input.
- Material
- Aluminum housing with dual rail design
- LCD Panel
- Size: 17.3 inch x 2
Resolution: 1920 x 1080
(Supports resolution up to 1920 x 1200)
Brightness (cd/m²): 300
Contrast Ratio (typ.): 650:1
Viewing Angle (H/V): 140/120
Backlight: LED
Colors: 262K
- Video Input
- Primary: Display Port
Secondary: HDMI
- Keyboard and Touchpad
- Keyboard and touchpad (USB)
- Audio
- 1 x 3.5mm Audio jack
- Drawer Design
- Dual slide rail
LCD monitor and keyboard drawer slide out independently
- Power Supply
- Wide range 100 to 240VAC, 50/60Hz
- Weight
- 46.30 lb / 21 kg

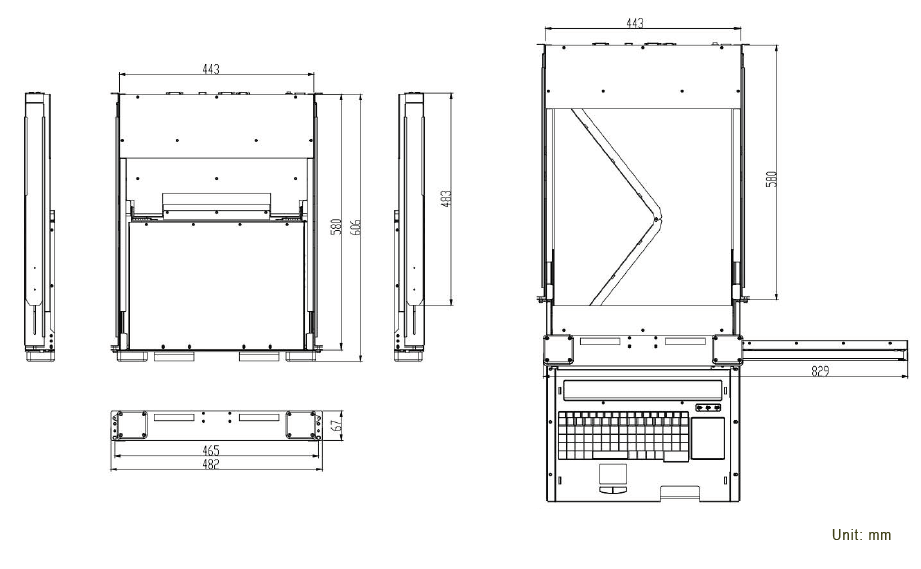

- Dimension
- 17.44"(W) x 2.64"(H) x 22.83~37.4"(D) adjustable
- Environmental
- Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Humidity: 10% to 90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 17 to 500Hz 1G PTP
KD8173TDR:
2U dual-LCDs rack console, dual 17.3 inch 1920 x 1080 300-nit full HD LCD monitor, center & right display, 104-key keyboard with touchpad, DP (Primary) & HDMI (Secondary) video input, and 100/240VAC power supply.
Special Order Item - MOQ: 10 Pieces
KD8173TDL:
2U dual-LCDs rack console, dual 17.3 inch 1920 x 1080 300-nit full HD LCD monitor, center & left display, 104-key keyboard with touchpad, DP (Primary) & HDMI (Secondary) video input, and 100/240VAC power supply.
Special Order Item - MOQ: 10 Pieces
Document
Description
Download Link
KD8173D-SP.pdf Spec Sheet
-
KD8173TD
Starting at:
KD8173TD
