Rack LCD console with a 23.8 inch 3840 x 2160 4K LCD display featuring pivotal screen design for landscape and portrait modes, 104-key keyboard with touchpad, HDMI 2.0 + DP 1.4 video input, built-in dual stereo speakers, and a 1U rackmount drawer with self-locking and auto release rails.
KD80240
- 1U high 27.50 inch depth rackmount drawer
- 23.8 inch 3840 x 2160 4K UHD industrial LCD monitor
- Pivotal screen design for landscape and portrait modes
- HDMI 2.0 + DP 1.4 video input
- Built-in 2 x 2W speakers
- 104-key keyboard with 2-button touchpad
- Pull-out drawer with self-locking and auto release rails
- 100 to 240VAC 50/60Hz via IEC type power cord
Availability:
In stock
SKU
KD80240
23.8" 3840 x 2160 4K rack console drawer with pivotal screen design, HDMI + DP video input, and a 1U high 27.50" depth rackmount drawer with pull-out slide drawer.
- Material
- Heavy-duty metal
- LCD Panel
- Size: 23.8 inch
Max Resolution: 3840 x 2160
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 178° x 178°
Colors: 1.07 Billion
- Screen Pivot
- Pivots clockwise or counter clockwise 90 degrees
- Keyboard & Touchpad
- 104-key keyboard with 2-button touchpad
- Video Input
- HDMI + DP video input
- Connectors
- 1 x HDMI 2.0 input
1 x DP 1.4 input
1 x front USB port
2 x rear USB 2.0 Type A ports
1 x rear USB 2.0 for KB / mouse
1 x power ON/OFF switch
1 x AC Power Cord
- Audio
- Built-in 2 x 2W speakers
- Drawer Design
- Pull-out drawer with self-locking and auto release rails
- Rack Depth
- 600mm to 1200mm (23.62" to 47.2")
- Cables
- 1.8 meter cables for HDMI, DP, USB, and power cord
- Weight
- TBD
- Dimension

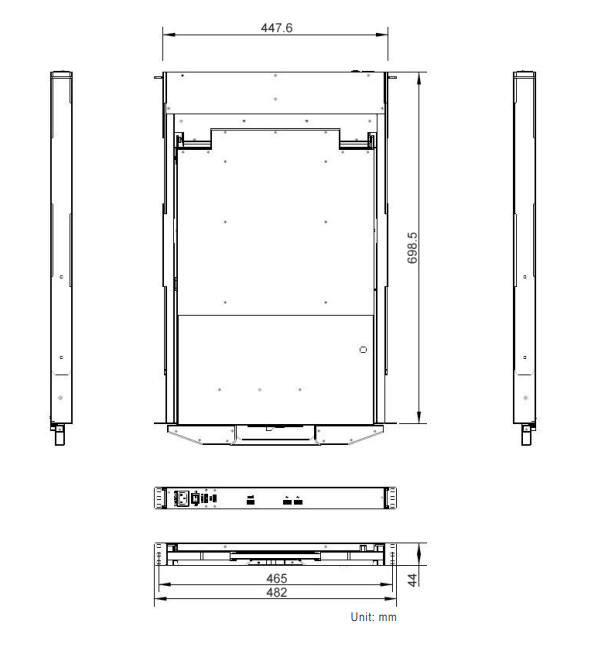

- 17.64"(W) x 27.50"(D) x 1.73"(H)
- Power Supply
- 100 to 240VAC 50/60Hz via IEC type power cord
- Environmental
- Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 10%~90%, noncondensing
Shock: 10G acceleration (11ms duration)
Vibration: 17 to 500Hz 1G PTP
KD80240:
23.8 inch 3840 x 2160 4K industrial LCD monitor with pivotal screen design, 104-key keyboard with touchpad, 1 x HDMI 2.0 + 1 x DP 1.4 video input, 100/240VAC power adapter, 1U high rackmount drawer with pull out slide drawer.
NOTICE! : PLEASE CONTACT OUR SALES ASSOCIATE FOR PRICE AND ORDER PLACEMENTS
Document
Description
Download Link
KD80240-SP.pdf Spec Sheet
