Fanless touch panel PC with a 10.1" 1280 x 800 (16:10) projected capacitive type touch screen, Celeron J1900 Quad-Core 2.0GHz CPU, 4GB DDR3L memory, mSATA slot, IP64 compliant front panel, dual LAN, built-in 802.11 a/b/n/g/n/ac wireless module, and -10°C to 50°C extended working temperature. Option for panel/rack mounting kit.
Loading...
8.4

FPC80084

12.1

FPC80121

FPC80101

  • 10.1" 1280 x 800 (16:10) LED LCD monitor
  • Projected capacitive type touch screen with anti-glare
  • Intel Celeron J1900 Quad-Core 2.0GHz CPU
  • 4GB DDR3L memory, max. 8GB
  • 128GB mSATA SSD
  • Built-in 802.11 a/b/g/n/ac wireless module
  • -10°C to 50°C extended working temperature
  • 36W 90~264VAC external power adapter
  • IP64 rated front bezel
Availability: In stock
SKU
FPC80101
Email
10.1" 1280 x 800 fanless touch panel PC with Celeron J1900 CPU, 4GB DDR3L memory, mSATA slot, IP64 rated front panel, and -10°C to 50°C extended working temperature.
Material
PC + ABS plastic on front panel
LCD Panel
Size: 10.1 inch
Resolution: 1280 x 800 (16:10)
Brightness (cd/m²): 350
Contrast Ratio: 800:1
Viewing Angle (H/V): 170° / 170°
Pixel Pitch (mm): 0.1695(H) x 0.1695(V)
Colors: 16.2M
MTBF (hrs): 15,000
System
CPU: Celeron J1900 Quad Core 2.0GHz CPU
Memory: 4GB DDR3L memory, max. 8GB
Storage: 128GB mSATA SSD
Touch Screen
Projected capacitive type touch screen with anti-glare coating, USB interface (std)
Connectors
1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)
2 x USB 3.0, 2 x USB 2.0
2 x RJ45 for GbE LAN
1 x Power switch
1 x Audio port (line-out)
1 x Reset button
1 x AT/ATX switch
1 x 9-30V DC lockable power jack
Audio
AMP 2W + 2W internal speakers
Camera & Microphone
2-megapixel with low light function, digital microphone
Wireless
IEEE 802.11 a/b/g/n/ac
Mounting
Option for panel or rack mounting kit
Power Supply
36W 90~264VAC external power adapter
Color
Black
Weight
5.69 lb / 2.58 kg

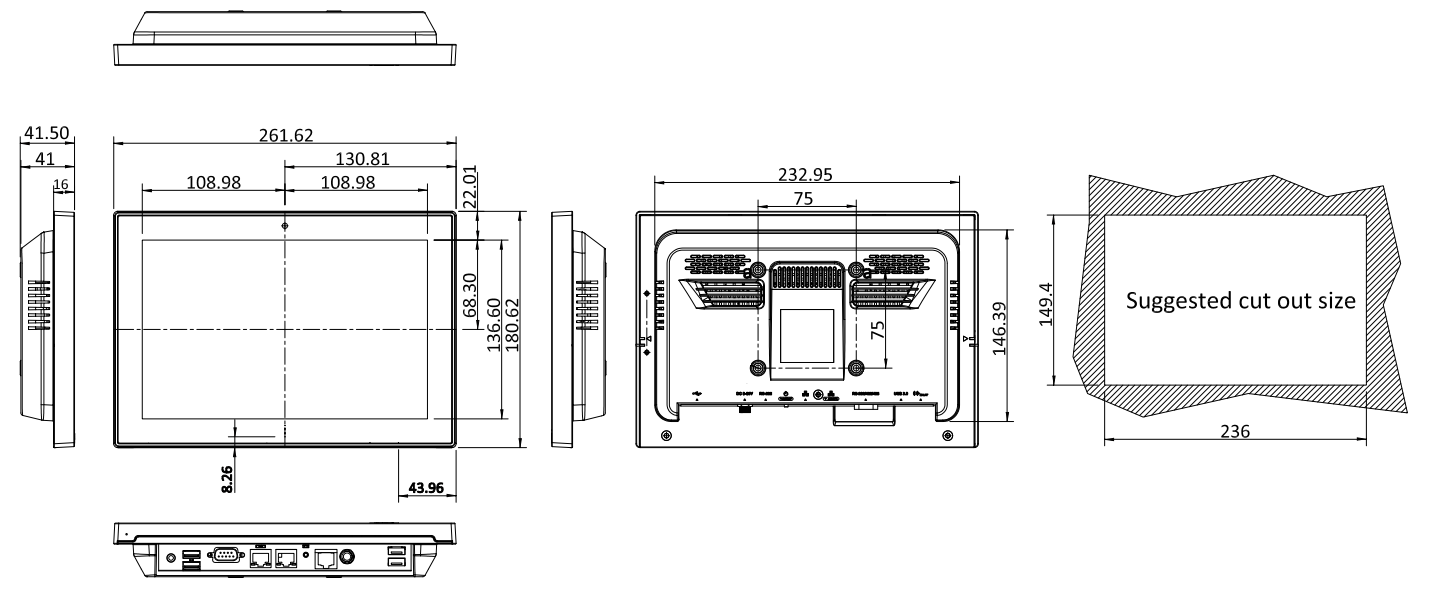

Dimension
10.32"(W) x 7.13"(H) x 1.65"(D)
Environmental
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 10% to 95%, non-condensing
IP Protection
IP64 compliant front panel
Certification
CE / FCC

FPC80101:
10.1" 1280 x 800 fanless panel PC with Celeron J1900 2.0GHz CPU, 4GB DDR3L memory, 128GB mSATA SSD, built-in 802.11 a/b/g/n/ac wireless module, projected capacitive type touch screen, anti-glare coating, 90 to 264VAC external power adapter, and -10°C to 50°C extended working temperature.

Document
Description
Download Link
file iconFPC80101-SP(V2-1).pdf
Spec Sheet
  • FPC80101
    10.1" 1280 x 800 (16:10) LED LCD monitor
    Projected capacitive type touch screen with anti-glare
    Intel Celeron J1900 Quad-Core 2.0GHz CPU
    4GB DDR3L memory, max. 8GB
    128GB mSATA SSD
    Built-in 802.11 a/b/g/n/ac wireless module
    -10°C to 50°C extended working temperature
    36W 90~264VAC external power adapter
    IP64 rated front bezel
